Triggers
R&S
®
RTP
255User Manual 1337.9952.02 ─ 12

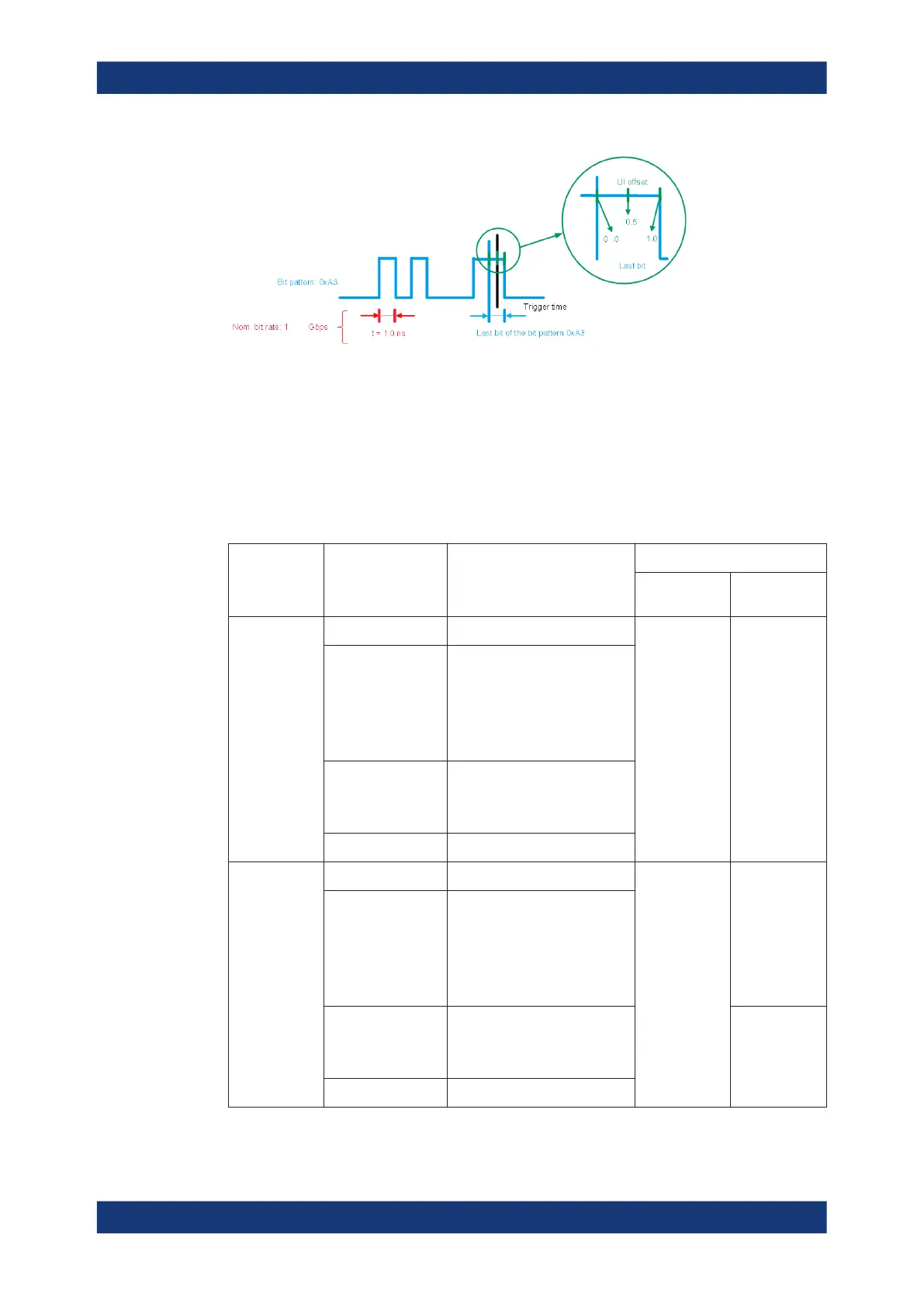

Figure 6-6: Example for a triggering parameters of a recovered clock signal
You can define the "Nom. bit rate" of your signal, or use the predefined value of one of
the supported "Serial standard" and "UI offset".
Maximum nominal bit rate
The available maximum nominal bit rate depends on the configuration settings of your
instrument. The following maximum nominal bit rate can be achieved:
Instruments
bandwidth
Number of active
channels
Maximum acquisition mode Maximum nominal bit rate
R&S RTP-
K140
R&S RTP-
K141
up to 8 GHz 1 channel 40 GSa/s 8 Gbps 8 Gbps
2 channels:
CH1 and CH3 or
CH1 and CH4 or
CH2 and CH3 or
CH2 and CH4
If serial number > 103000:
40 GSa/s
If serial number < 103000:
20 GSa/s
2 channels:
CH1 and CH2 or
CH3 and CH4
20 GSa/s
3 or 4 channels 20 GSa/s
13 GHz, 16
GHz
1 channel 40 GSa/s 8 Gbps 16 Gbps
2 channels:
CH1 and CH3 or
CH1 and CH4 or
CH2 and CH3 or
CH2 and CH4
40 GSa/s
2 channels:
CH1 and CH2 or
CH3 and CH4
20 GSa/s 8 Gbps
3 or 4 channels 20 GSa/s
High-speed serial pattern trigger (Option R&S RTP-K140/K141)
