Make sure that:
●
In the [Protocol] > "Setup" tab:
– The correct "Protocol" is selected.
– The data sources of the serial bus are channel signals.
●
In the "Trigger" > "Setup" tab:
– The "Trigger on" = "Single event"
– The trigger "Source" = "Serial bus".
– The correct "Serial bus" is selected.
Type
Selects the trigger type for the Ethernet analysis.
"Frame Start"
Available only for "Variant > 10BASE-T".
Sets the trigger to the start frame delimiter (SFD). The start of frame
(SOF) condition is the occurrence of the preamble; the trigger instant
is after the SFD.
"Pattern"
Available only for "Variant > 10BASE-T".
Sets the trigger to any bit pattern (data) that can be freely specified,
starting from the beginning of the frame. The trigger instant is after
the last bit of the specified data pattern.

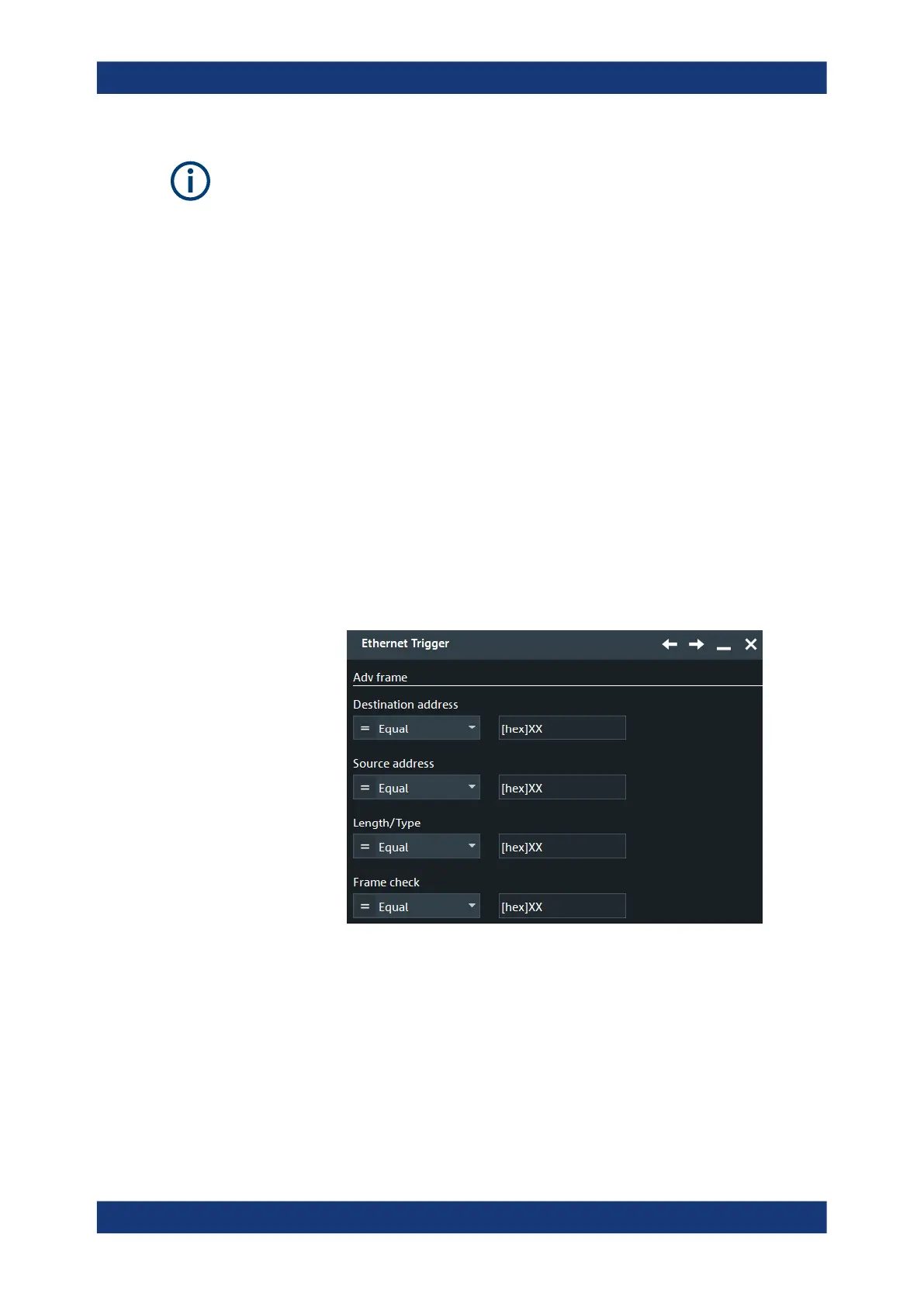

"Adv frame "
Triggers on an advanced frame.
Ethernet 10BASE-T and 100BASE-TX (option R&S RTP-K8)
