boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-71
Boards for HiPath 3000
Central Boards
● Expansion cabinet
When using one or more SLMA2 boards in the expansion cabinet, RGMOD must be
plugged into the 10-pin port X214 of the expansion cabinet (see Figure 3-26).

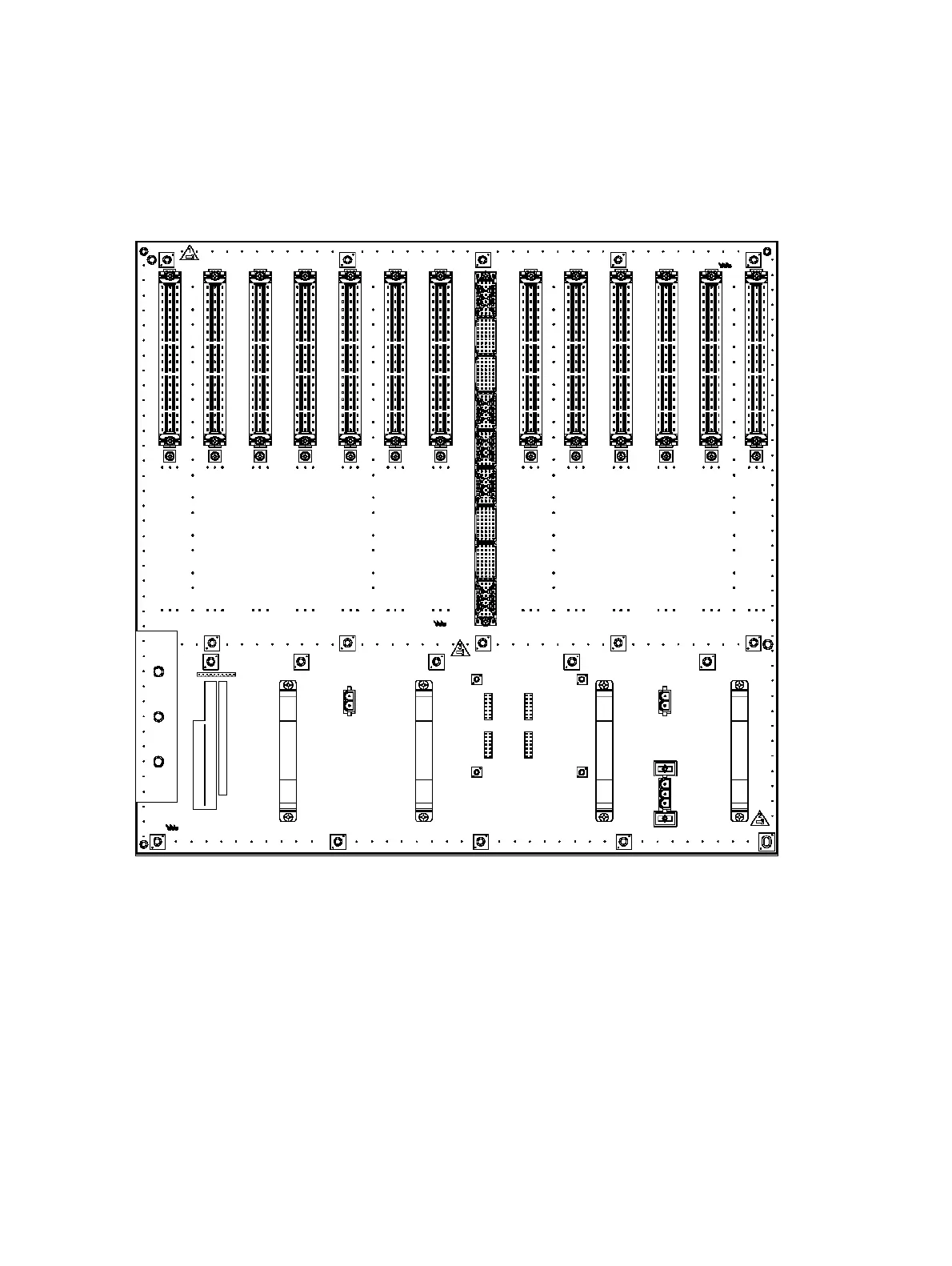

Figure 3-26 HiPath 3800 - Connectors and Jacks on the Backplane of the Expansion
Cabinet
X214
