boards.fm
P31003-H3560-S403-54-7620, 09/05
HiPath 3000 V6.0, HiPath 5000 V6.0, Provisional Service Manual
3-119
Boards for HiPath 3000
Peripheral Boards
LAN adapter

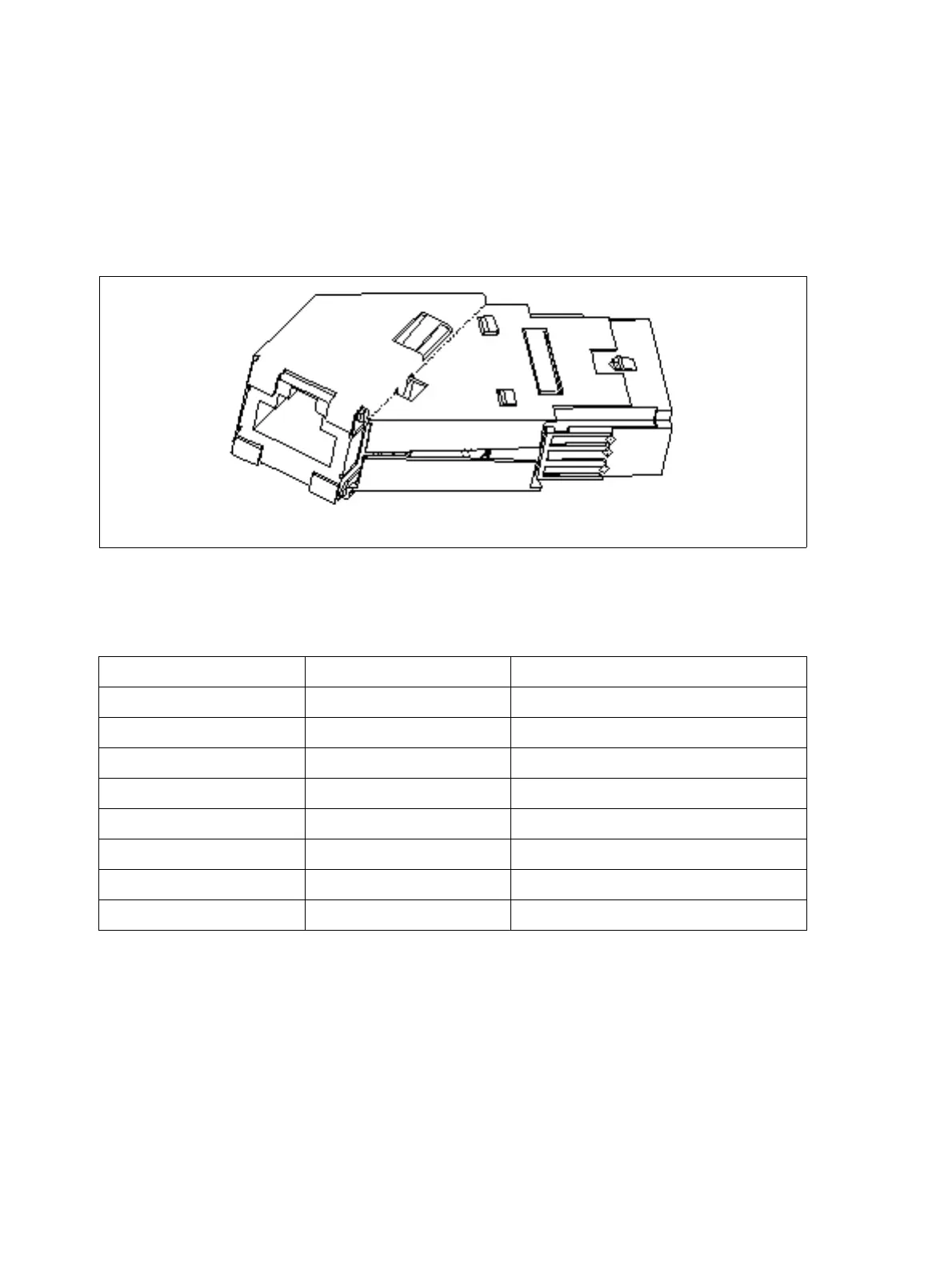

The Ethernet LAN interface is accessed via the LAN adapter shown in Figure 3-56 (part no.
C39228-A7195-A10), which is connected on the backplane’s (Xx9) SIPAC 1 SU connector.
Only shielded cables may be used for the LAN connector (RJ45 jack).
Figure 3-56 LAN Adapter (SIPAC 1 SU - RJ45)
Table 3-48 LAN Adapter Assignment (SIPAC 1 SU - RJ45)
SIPAC 1 SU jack RJ45 jack Signal
B1 1 TDP (Transmit Data +)
C2 2 TDN (Transmit Data –)
B3 4 TT1 (Transmit Termination 1)
1
1 Not used in 4-wire cable
C4 5 TT2 (Transmit Termination 2)
1
B5 3 RDP (Receive Data +)
C6 6 RDN (Receive Data –)
B7 7 RT1 (Receive Termination 1)
1
C8 8 RT2 (Receive Termination 2)
1
SIPAC 1 SU
jack (Xx9
backplane)
RJ45
jack
(LAN)
