Siemens SINUMERIK Series

B3: Distributed systems - 840D sl only
2.3 Examples
Extended Functions
134 Function Manual, 03/2013, 6FC5397-1BP40-3BA1

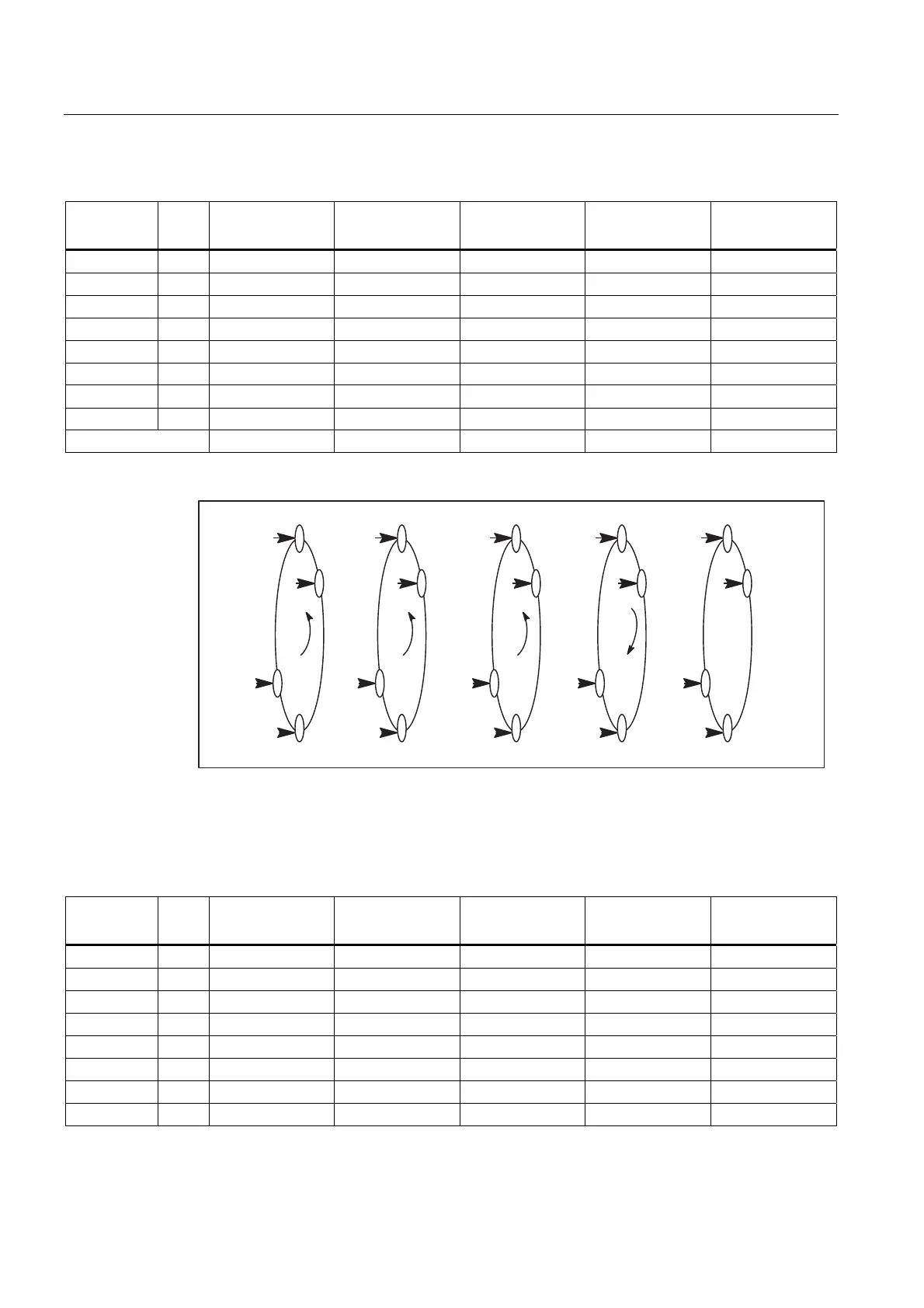

Table 2- 4 Axis container and their position-dependent contents for drum A
Container Slot Initial position
(TRA 0°)
Switch 1
(TRA 90°)
Switch 2
(TRA 180°)
Switch 3
(TRA 270°)
Switch 4 =
(TRA 0°)
1 1 NC1_AX1, HS1 NC2_AX1, HS2 NC3_AX1, HS3 NC4_AX1, HS4 NC1_AX1, HS1
2 NC2_AX1, HS2 NC3_AX1, HS3 N4C_AX1, HS4 NC1_AX1, HS1 NC2_AX1, HS2
3 NC3_AX1, HS3 NC4_AX1, HS4 NC1_AX1, HS1 NC2_AX1, HS2 NC3_AX1, HS3
4 NC4_AX1, HS4 NC1_AX1, HS1 NC2_AX1, HS2 NC3_AX1, HS3 NC4_AX1, HS4
2 1 NC1_AX7, STN1 NC2_AX7, STN2 NC3_AX7, STN3 NC4_AX7 STN4 NC1_AX7, STN1
2 NC2_AX7, STN2 NC3_AX7, STN3 NC4_AX7, STN4 NC1_AX7, STN1 NC2_AX7, STN2
3 NC3_AX7, STN3 NC4_AX7, STN4 NC1_AX7, STN1 NC2_AX7, STN2 NC3_AX7, STN3
4 NC4_AX7, STN4 NC1_AX7, STN1 NC2_AX7, STN2 NC3_AX7, STN3 NC4_AX7, STN4
Drum movement 0° + 90° + 90° + 90° - 270°
671
671
671
671
+6
+6
+6
+6
671
671
671
671
+6
+6
+6
+6
671
671
671
671
+6
+6
+6
+6
671
671
671
671
+6
+6
+6
+6
671
671
671
671
+6
+6
+6
+6
Figure 2-23 Positions of drum A
Table 2- 5 Axis container and their position-dependent contents for drum B
Container Slot Initial position
(TRB 0°)
Switch 1
(TRB 90°)
Switch 2
(TRB 180°)
Switch 3
(TRB 270°)
Switch 4 =
(TRB 0°)
3 1 NC1_AX2, GS1 NC2_AX2, GS2 NC3_AX2, GS3 NC4_AX2, GS4 NC1_AX2, GS1
2 NC2_AX2, GS2 NC3_AX2, GS3 NC4_AX2, GS4 NC1_AX2, GS1 NC2_AX2, GS2
3 NC3_AX2, GS3 NC4_AX2, GS4 NC1_AX2, GS1 NC2_AX2, GS2 NC3_AX2, GS3
4 NC4_AX2, GS4 NC1_AX2, GS1 NC2_AX2, GS2 NC3_AX2, GS3 NC4_AX2, GS4
4 1 NC1_AX5, ZG1 NC2_AX5, ZG2 NC3_AX5, ZG3 NC4_AX5 ZG4 NC1_AX5, ZG1
2 NC2_AX5, ZG2 NC3_AX5, ZG3 NC4_AX5, ZG4 NC1_AX5, ZG1 NC2_AX5, ZG2
3 NC3_AX5, ZG3 NC4_AX5, ZG4 NC1_AX5, ZG1 NC2_AX5, ZG2 NC3_AX5, ZG3
4 NC4_AX5, ZG4 NC1_AX5, ZG1 NC2_AX5, ZG2 NC3_AX5, ZG3 NC4_AX5, ZG4
