N4: Own channel - only 840D sl
9.3 Activation and deactivation
Extended Functions
Function Manual, 03/2013, 6FC5397-1BP40-3BA1
569
The programmed time becomes operative immediately. Depending on the size of the block
buffer, strokes that have already been programmed can be executed with this minimum
interval. The following programming measures (example) can be taken to prevent this:
Program code
N...
N100 STOPRE
N110 $SC_ MINTIME_BETWEEN_STROKES = 1.3
The function is not active when SD42404 = 0.
Travel-dependent acceleration

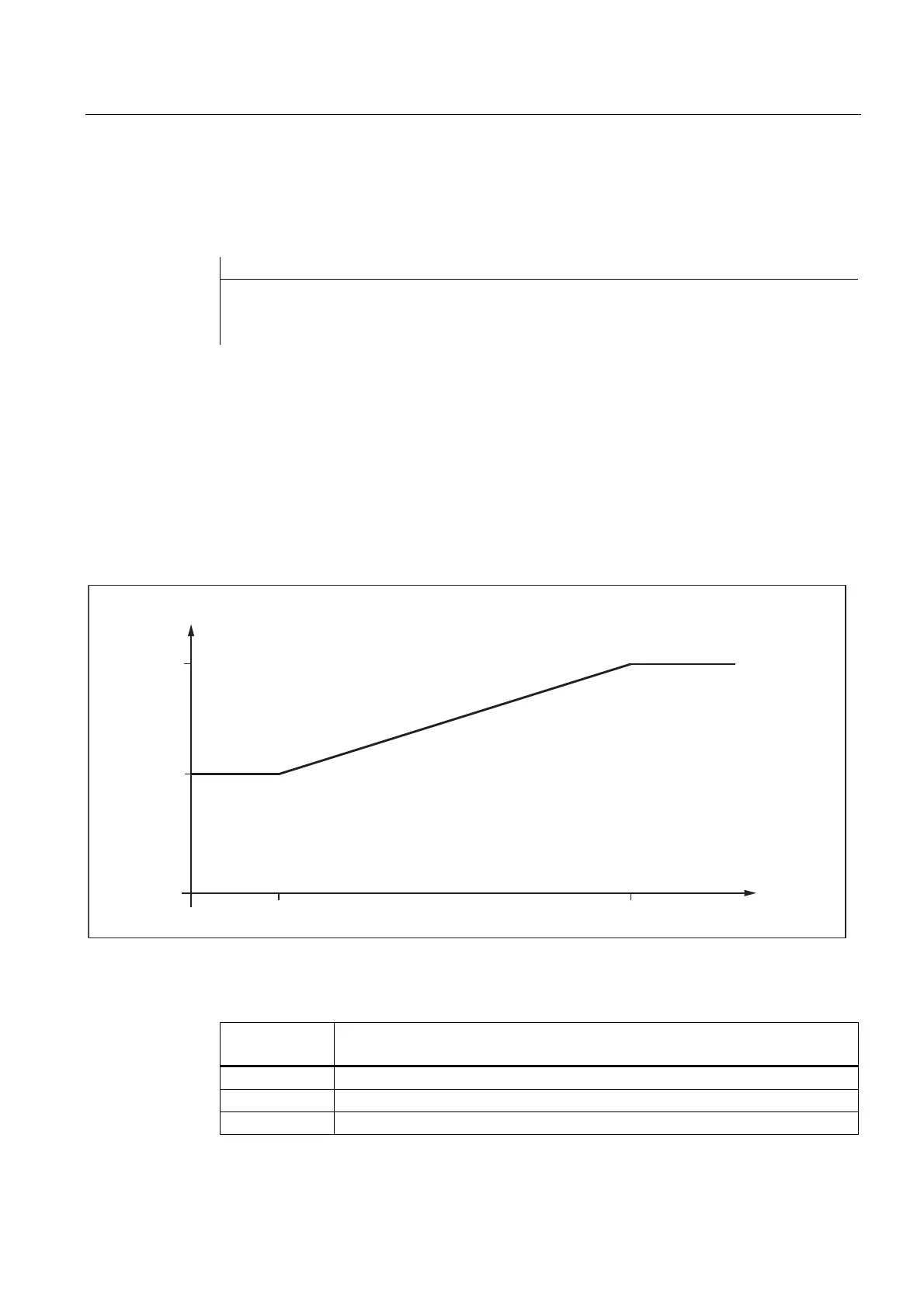

An acceleration characteristic can be defined with PUNCHACC (Smin, Amin, Smax, Amax). This
command can be used to define different acceleration rates depending on the distance
between holes.
Example 1:
$>@
381&+$&&
6>PP@
The characteristic defines the following acceleration rates:
Distance
between holes
Acceleration
< 2 mm The axis accelerates at a rate corresponding to 50 % of maximum acceleration.
2 - 10 mm Acceleration is increased to 100 %, proportional to the spacing.
> 10 mm The axis accelerates at the maximum rate (100%).
