N4: Own channel - only 840D sl
9.3 Activation and deactivation
Extended Functions
570 Function Manual, 03/2013, 6FC5397-1BP40-3BA1
Example 2:
$>@
381&+$&&
6>PP@

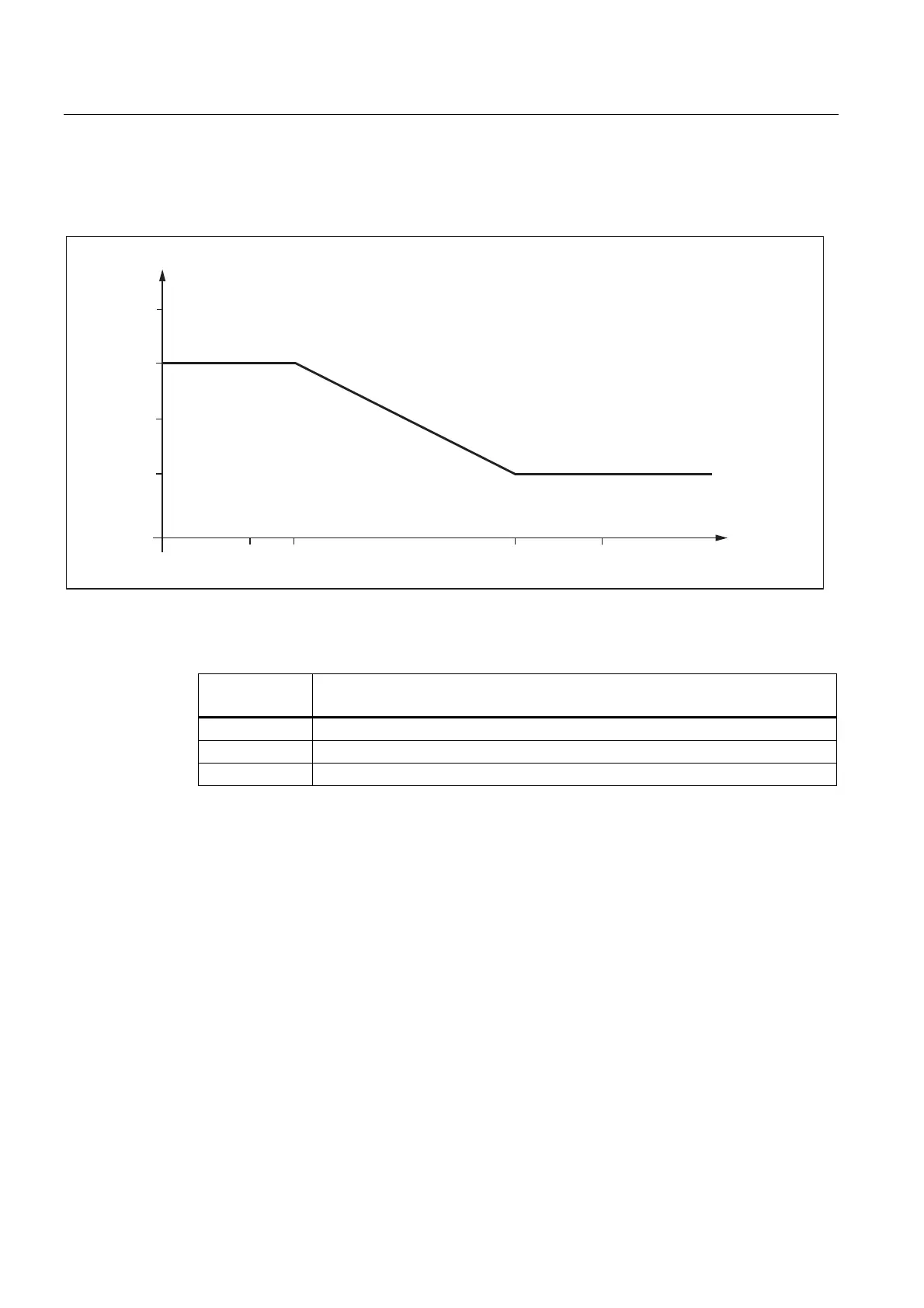

The characteristic defines the following acceleration rates:
Distance
between holes
Acceleration
< 3 mm The axis accelerates at a rate corresponding to 75 % of maximum acceleration.
3 - 8 mm Acceleration is reduced to 25 %, proportional to the spacing.
> 10 mm The axis accelerates at the maximum rate (25 %).
If a reduced acceleration rate has already been programmed via
ACC, then the acceleration
limits defined with
PUNCHACC refer to the reduced acceleration rate.
The function is deselected with:
S
min
= S
max
= 0
The acceleration rate programmed beforehand with
ACC remains operative.
