Siemens SINUMERIK Series Function Manual

N4: Own channel - only 840D sl
9.4 Automatic path segmentation
Extended Functions
Function Manual, 03/2013, 6FC5397-1BP40-3BA1
581
MD26016 $MC_PUNCH_PARTITION_TYPE=1

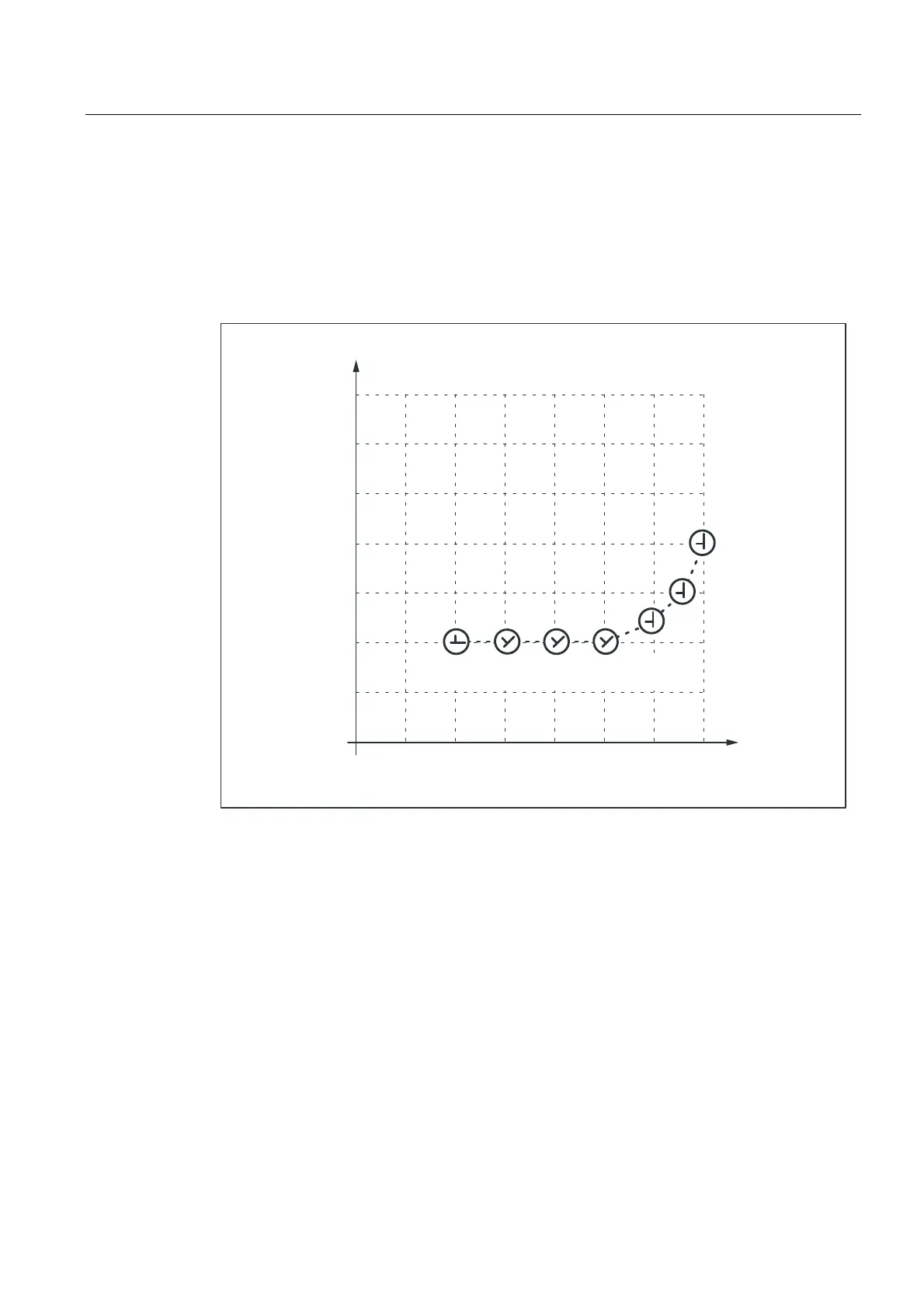

In contrast to the behavior described above, here the synchronous axis travels the entire
programmed rotation path in the first sub-block of the selected path segmentation function.
Applied to the example, the C axis already reaches the programmed end position
C=45 when
it reaches X position X=15. It behaves in the same way in the circular interpolation block
below.
r








 [
\
1
r
r
r

rr& r
1
1

Siemens SINUMERIK Series Specifications

General

Axes Control	Up to 31 axes
Category	Control Unit
Manufacturer	Siemens
Series	SINUMERIK
Control Type	CNC
Communication Interfaces	Ethernet, USB
Operating Temperature	0°C to 45°C
Protection Class	IP20
Power Supply	24V DC
Display	Color TFT LCD
