Terex MHL360 E - ECU Diagnostics; ECU Diagnostics: DM1

DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.41
4.5.13.3 ECU diagnostics
This display screen shows operating data for
the engine control system.
Call-up
► Main control display > Main menu > Diag-
nostics menu > ECU diagnostics
4.5.13.4 ECU diagnostics: DM1
This display screen shows active engine con-
trol system error messages.
Call-up
►
Main control display > Main menu > Diag-
nostics menu > ECU diagnostics > DM1
BSB50557
F3
F4
F6
F7
F8
F9
F5
DM1
F2
BSB51051
FUEL CONSUMPTION
OPERATING HOURS
ENGINE SPEED PRESET
ENGINE SPEED
CURRENT TORQUE
LOAD AT CURRENT SPEED
COOLANT LEVEL
COOLANT TEMPERATURE
OIL PRESSURE
CHARGE AIR TEMPERATURE
FAN SPEED COOLANT
2
1
4
6
8
9
3
5
7
10
11
FAN SPEED HYDRAULIC OIL
12
BATTERY VOLTAGE
ALTERNATOR CHARGING VOLTAGE
14
13
15

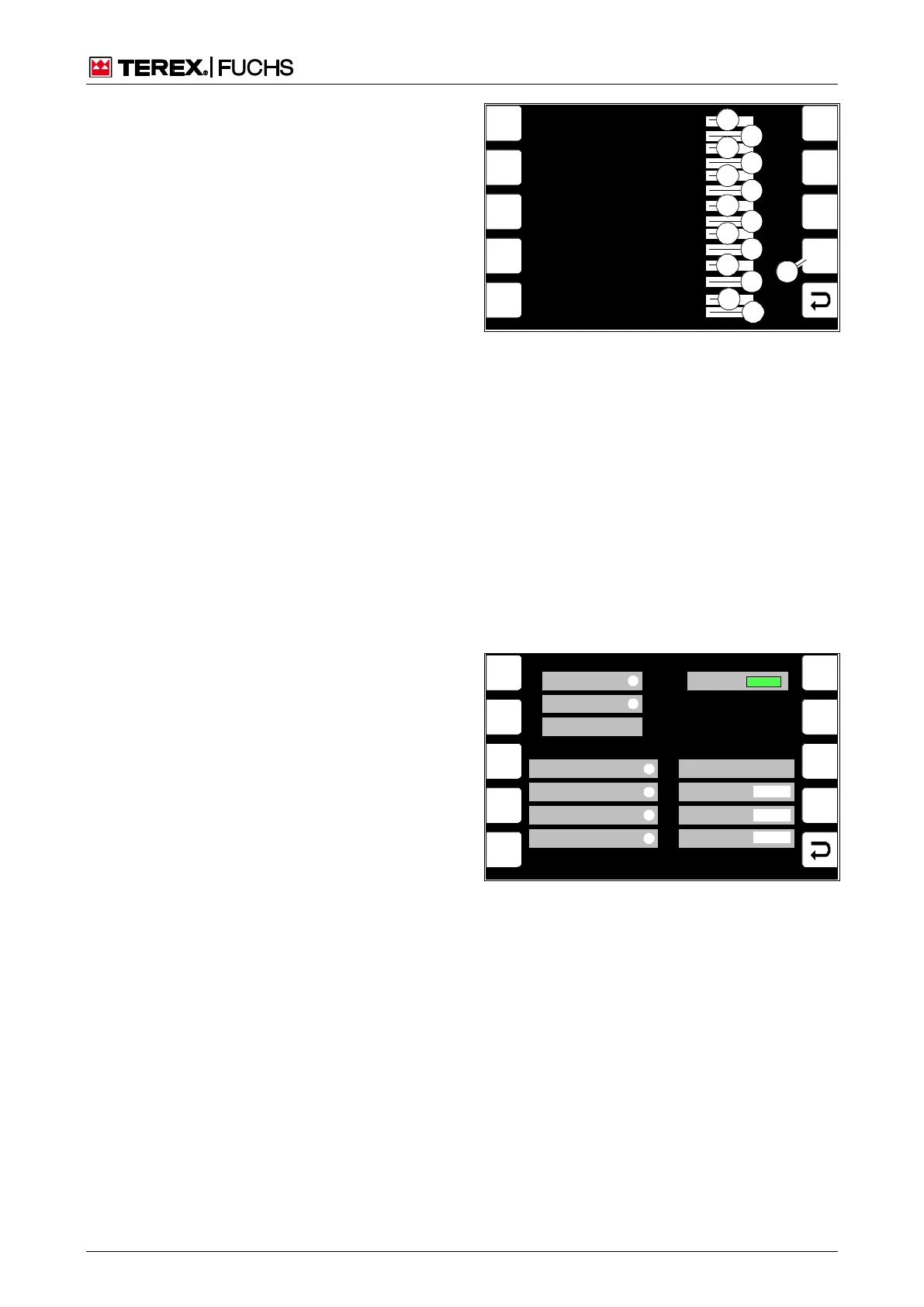

Fig. 73 ECU diagnostics
1 OPERATING HOURS (h;min)
2 SPEED PRESET (RPM)
3 ENGINE SPEED (RPM)
4 CURRENT TORQUE (%)
5 LOADING AT CURRENT SPEED (%)
6 FUEL CONSUMPTION (l/h)
7 OIL PRESSURE (mbar)
8 COOLANT LEVEL (%)
9 COOLANT TEMPERATURE (°C)
10 CHARGE AIR TEMPERATURE (°C)
11 COOLANT FAN SPEED (RPM)
12 HYDRAULIC OIL FAN SPEED (RPM)
13 BATTERY VOLTAGE
14 ALTERNATOR CHARGE VOLTAGE (mV)
15 DM1 (for Service personnel)
F3
F4
F6
F7
F8
F9
F5
F1
F2
BSB51052
DM1 Single Message:
DM1 BAM Message:
Number of Faults: 0
Protection Lamp Status
Warning Lamp Status
Stop Lamp Status
Emission Related Lamp Status
ECU alive
SPN-NO: 0 of 0
0
Suspect Parameter
Number (SPN)
Failure Mode
Identifier (FMI)
0
O ccurence
Count (OC)
0
YES
Fig. 74 ECU diagnostics: DM1 (for Service
personnel)
