5 OPERATION
5.34 MHL360 E
5.13.3 Individually controlled support (op-
tional)
Danger of injury due to machine
toppling over
• Use the individually controlled
support only for corrections of the
support situation in the case of
slightly uneven terrain.
In an emergency: Administer first
aid, seek treatment from a doctor
Only the preselected outrigger legs are
moved. The indicators on the button toggles
(145/75 to 78) show the status. The last selec-
tion is always activated automatically when
the ignition is switched on.
n The arrangement of the button toggles
corresponds to the arrangement of the outrig-
ger legs if the cab is over the steering axle.
Indicator on: Outrigger leg selected
Indicator off: Outrigger leg deselect-
ed
►
First select all four outrigger legs with the
button toggles (145/75-78) and position the
loading machine.
►
Deselect all outrigger legs that are not
needed. Only the indicators of the outrigger
legs to be moved are still lit.
►
Move lever (145/2) with a sensitive touch
and correct the position of the loading ma-
chine.
BSB50952
76
75
78
77
BSB50953
98 99
2
98
99

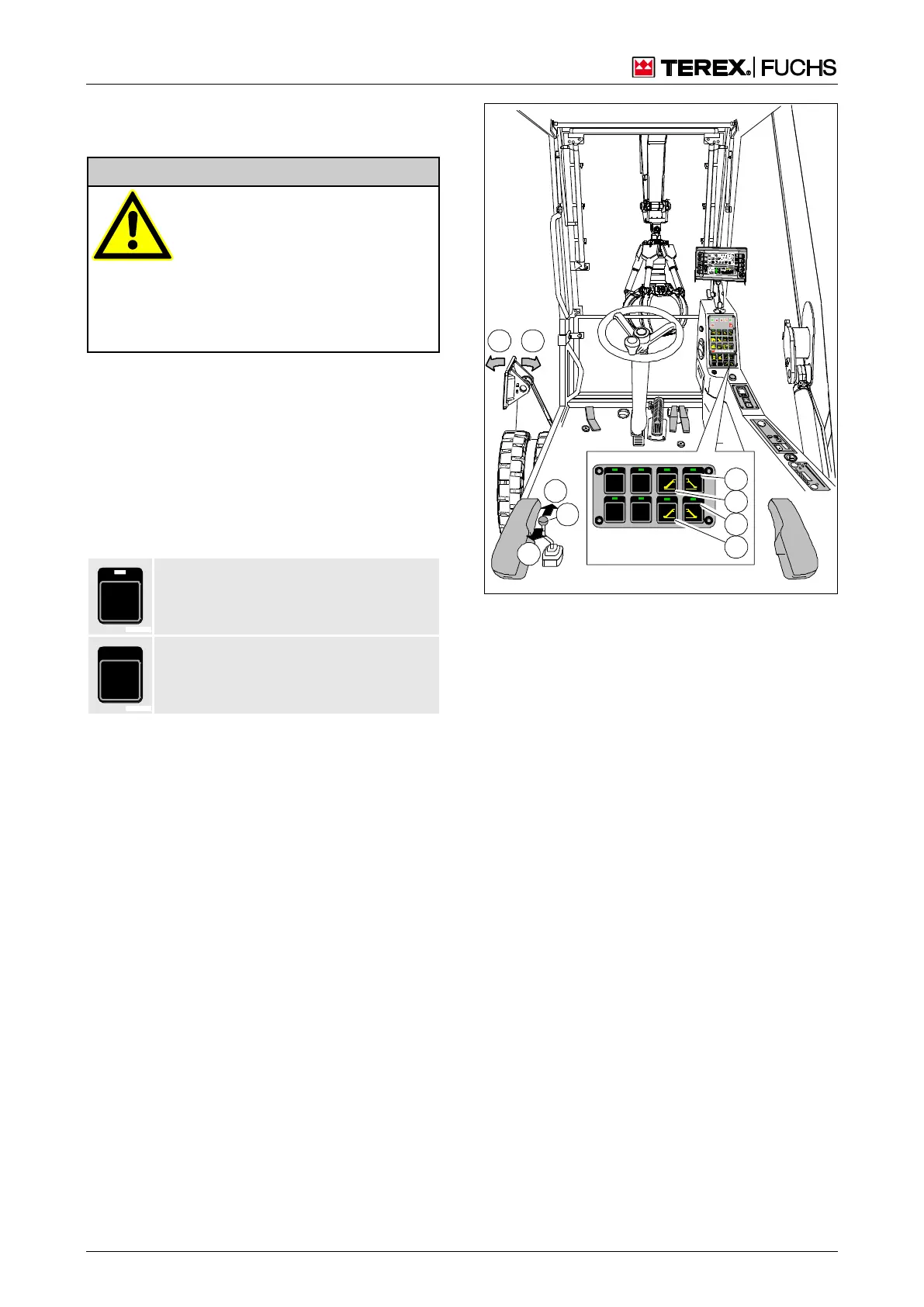

Fig. 145 Individually operated support
98 Extend the outrigger
99 Retract the outrigger
