Terex MHL360 E - Work Equipment 16.5 M and 18 M

TECHNICAL DATA 3
MHL360 E 3.9
3.3.2 Work equipment 16.5 m and 18 m
360-0560-502
F
D
A
1
BC
H
E
2
G

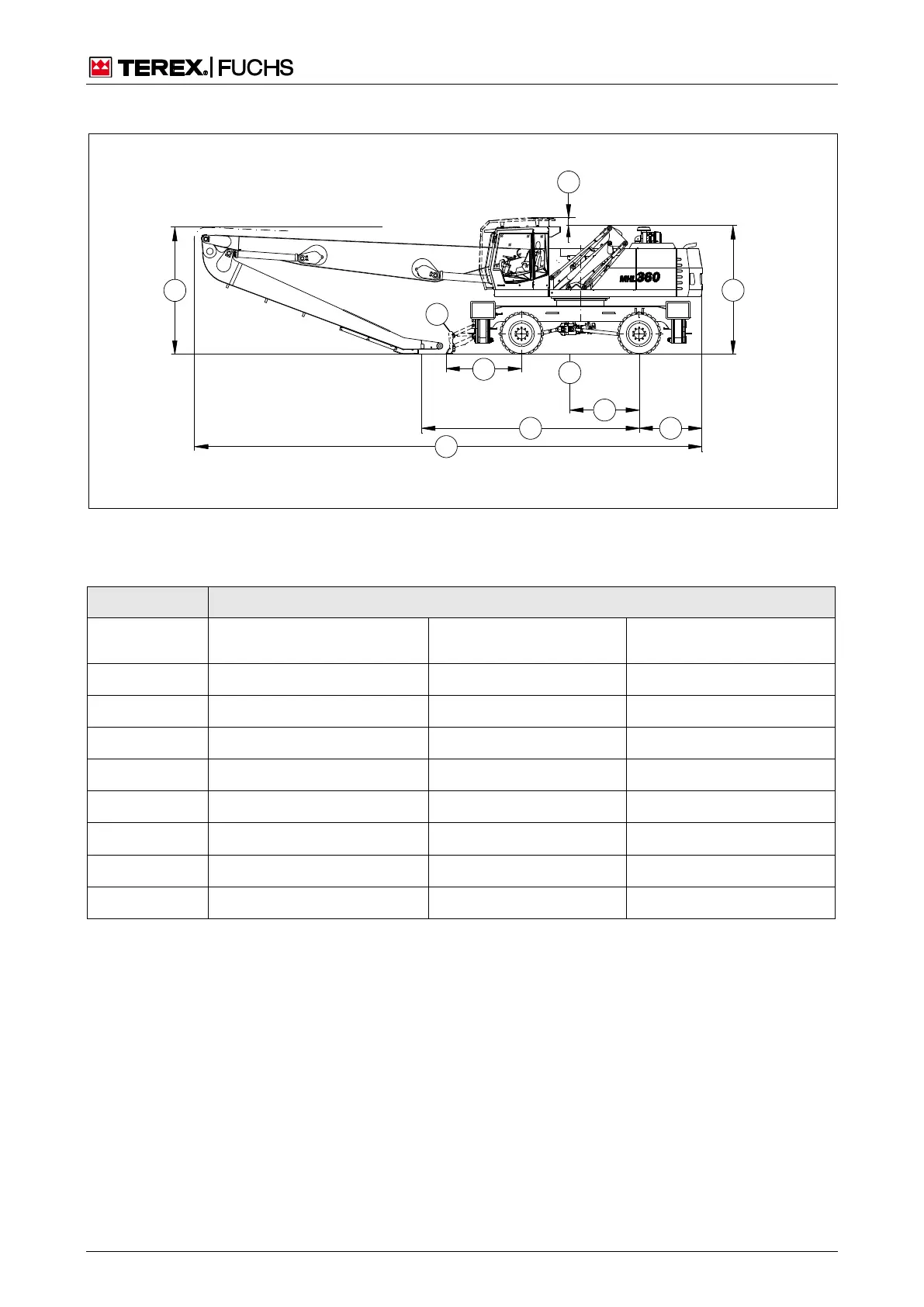

Fig. 15 Transport dimensions (measurements in mm)
1 Average center of gravity in transport position
2 Transport position with dozer blade (optional)
TRANSPORT DIMENSIONS
Dimensions in
mm
Loading equipment 16.5 m
Loading equipment 18 m
A
13820
14610
B
1720
1720
C
6410
6440
D
3500
3500
E
3450
3740
F
220
220
G
2060
2060
H
1900
1900
