Terex MHL360 E - Turning and Braking the Uppercarriage

5 OPERATION
5.46 MHL360 E
5.16.4 Turning and braking the uppercar-
riage
ATTENTION
Do not use the swing brake for
braking. Engage it only when the
uppercarriage is stationary.
Swing brake holds uppercarriage position
The swing brake holds the uppercarriage in
position. This is necessary for transport on a
flat bed trailer or when driving, for example.
To turn the uppercarriage, release the swing
brake first.
The indicators (162/24) and (163/55) display
the status.
(163/55)
(162/24)
Swing brake
B SB507 58
B SB507 65
Not active
Uppercarriage freely movable
B SB507 59
B SB508 78
Engaged
Uppercarriage locked
►
While the uppercarriage is stationary, brief-
ly press button toggle (163/55) or button
toggle on the left-hand four-way control
lever (163/44) or foot switch (163/5) (op-
tional).
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50877
24

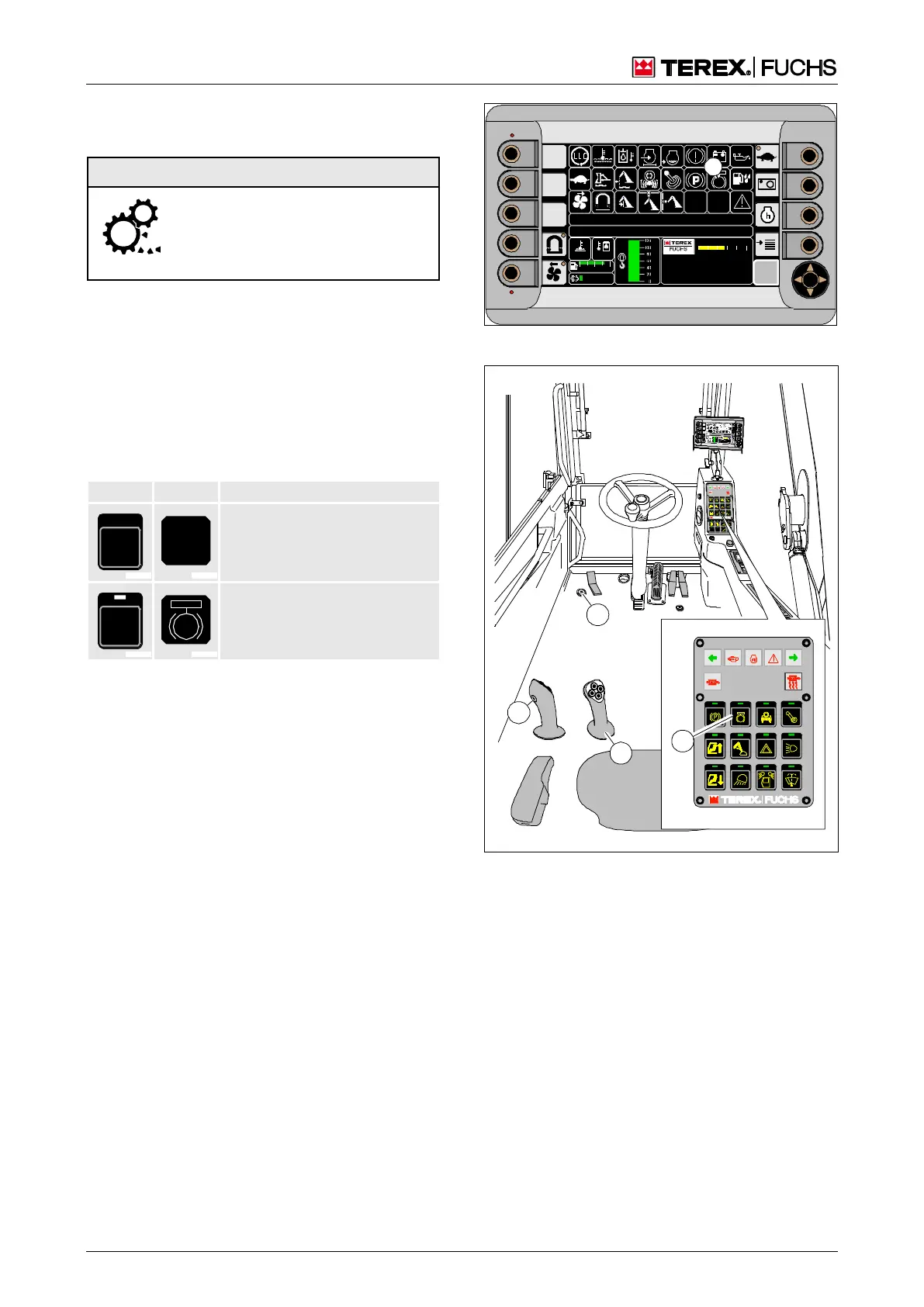

Fig. 162 Locking uppercarriage
BSB50955BSB50961
55
44
3
5
Fig. 163 Locking uppercarriage
44 Swing brake button toggle
5 Swing brake foot switch (optional)
