CARE AND MAINTENANCE 7
MHL360 E 7.21
7.4.7.1 Checking positions
Axles and wheel hubs
►
the rear axle (263/1)
►
the front axle (264/1)
►
the wheel hub (265/1)
h Chapter 7.7.15 Changing axle and trans-
mission oil
Manual transmission
►
Transmission (266/1)
Swing gear
►
Use an oil level dip-stick to check the swing
gear oil (267/1) and top up if required. The
notches on the oil level dip-stick indicate
the minimum and maximum oil levels.
7.4.8 Electrical equipment
j WARNING
Danger of injury from electric
shock
• Do not touch live parts.
In an emergency: Administer first
aid, seek treatment from a doctor
ATTENTION
Check the polarity of the connec-
tions. Cover electrical/electronic
components and connections be-
fore cleaning the engine (for exam-
ple control devices, generator, so-
lenoid valves, etc.).
7.4.8.1 Lighting and warning equipment
►
Check the lighting equipment for proper
functionality.
►
Check the function of the LEDs and indica-
tor lamps in the display.
►
Check the warning equipment for proper
functionality.
BSB50013
1

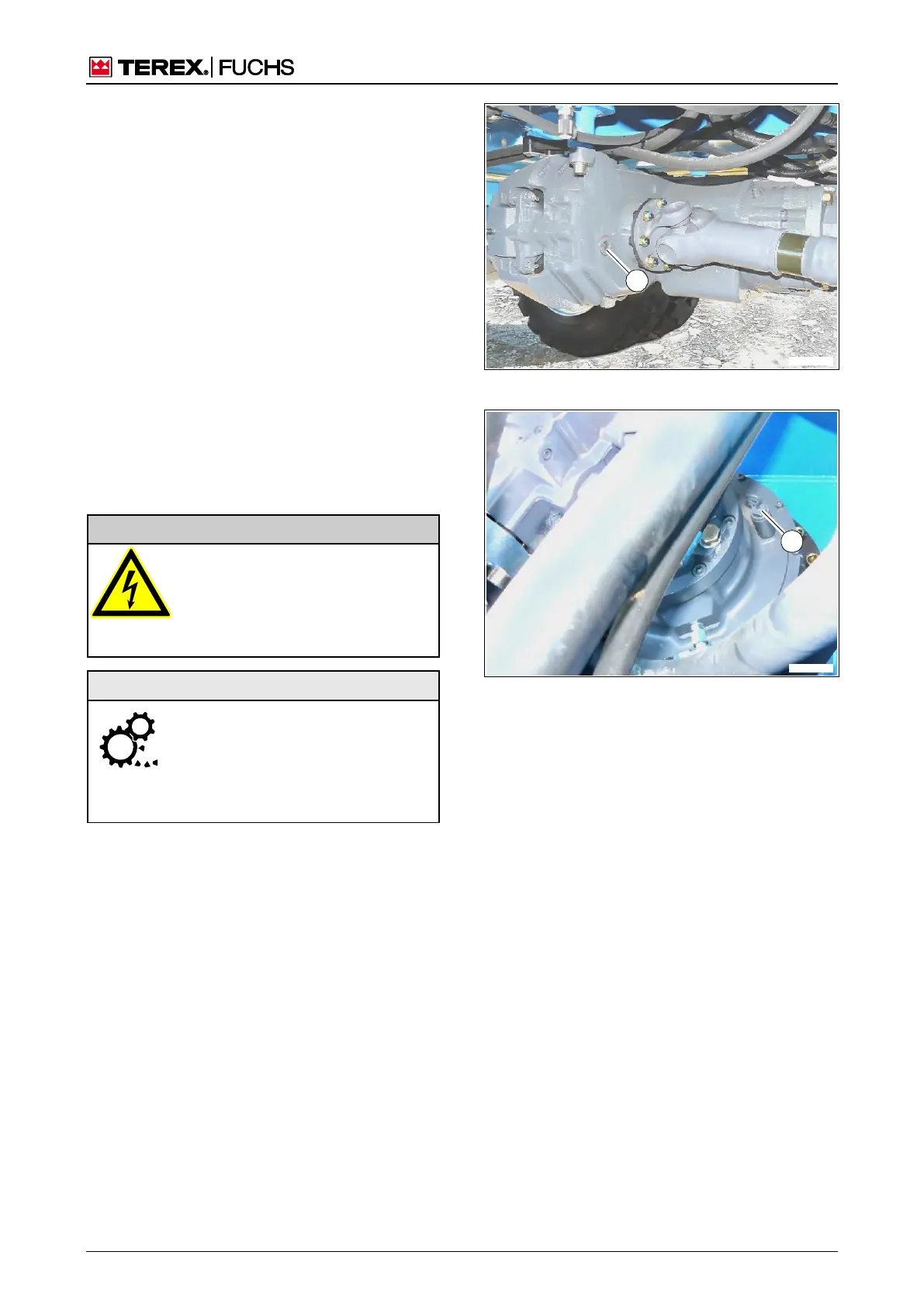

Fig. 266 Transmission
BSB50014
1
Fig. 267 Swing gear
