Terex MHL360 E - Air Filter Differential Pressure; Fuel Prefilter

5 OPERATION
5.86 MHL360 E
5.21.6 Air filter differential pressure
Vacuum
pressure
Actions
Too high
Warning levels start
Indicator (225/13) and message
(225/34): "AIR FILTER"
"CONTAMINATION"
Low
Warning level is reset
Visual warnings cancelled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Clean the air filter.
►
If the warning message persists, call for
service personnel.
5.21.7 Fuel prefilter
Water con-
tent
Actions
Too high Warning levels start
Indicator (226/58) and message
(225/34): „WATER" "IN FUEL"
Low
Warning level is reset
Visual warnings cancelled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Drain the fuel pre-filter.
►
If the warning message persists, call for
service personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50644
13
34
33
22 25

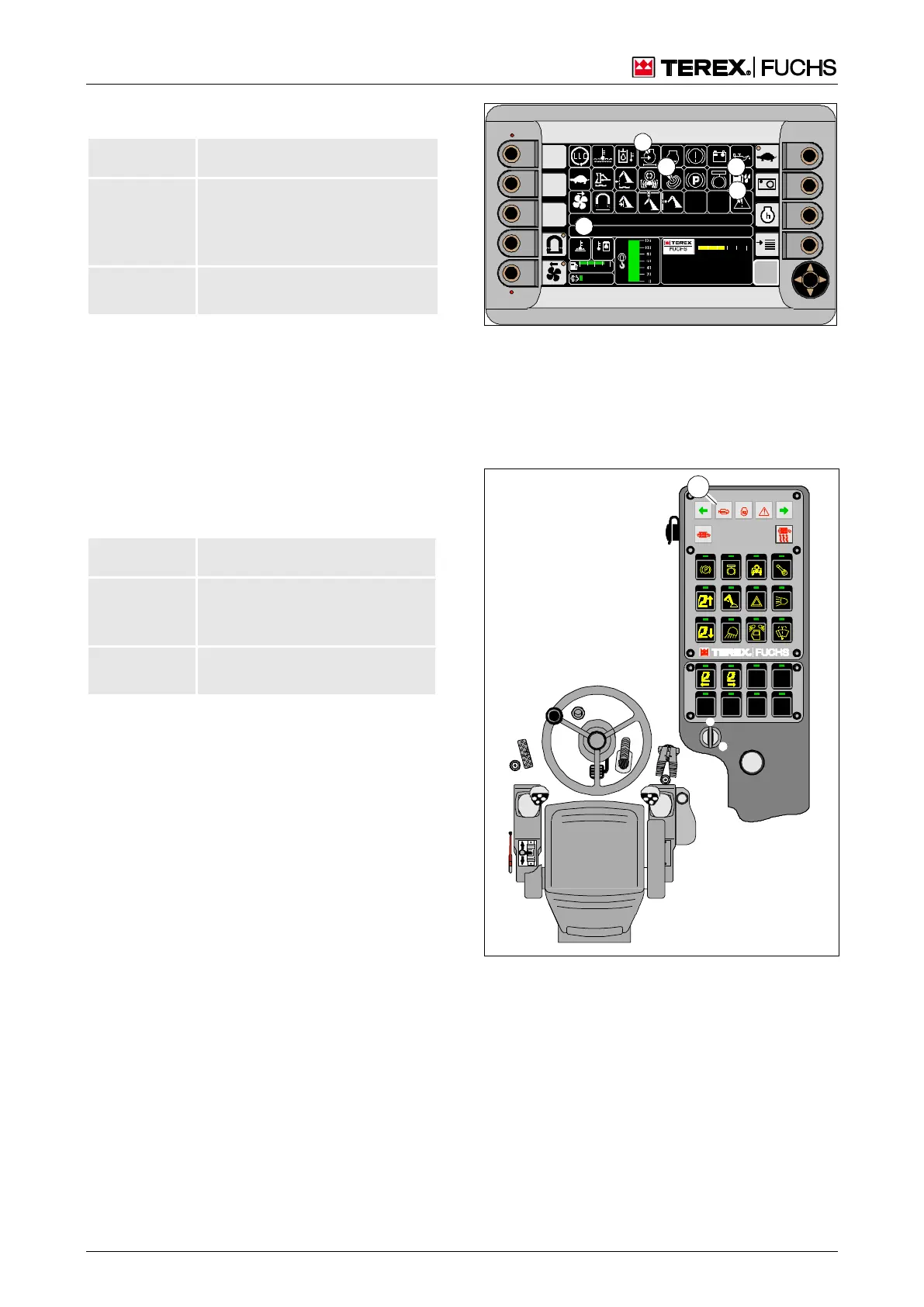

Fig. 225 Monitoring the air filter differential pres-
sure and fuel prefilter
13 Indicator for air filter clogging
22 Travel and work functions disabled indicator
25 Water in fuel indicator
33 Note text message indicator
34 Text message for the indicators
I
0
BSB50640
58
Fig. 226 Control panel display
58 Error display of the engine control system
