4.2.9 Liebherr control system: Steering with a four-way control lever (optional)
 Current machine control unit (if yes, please tick)

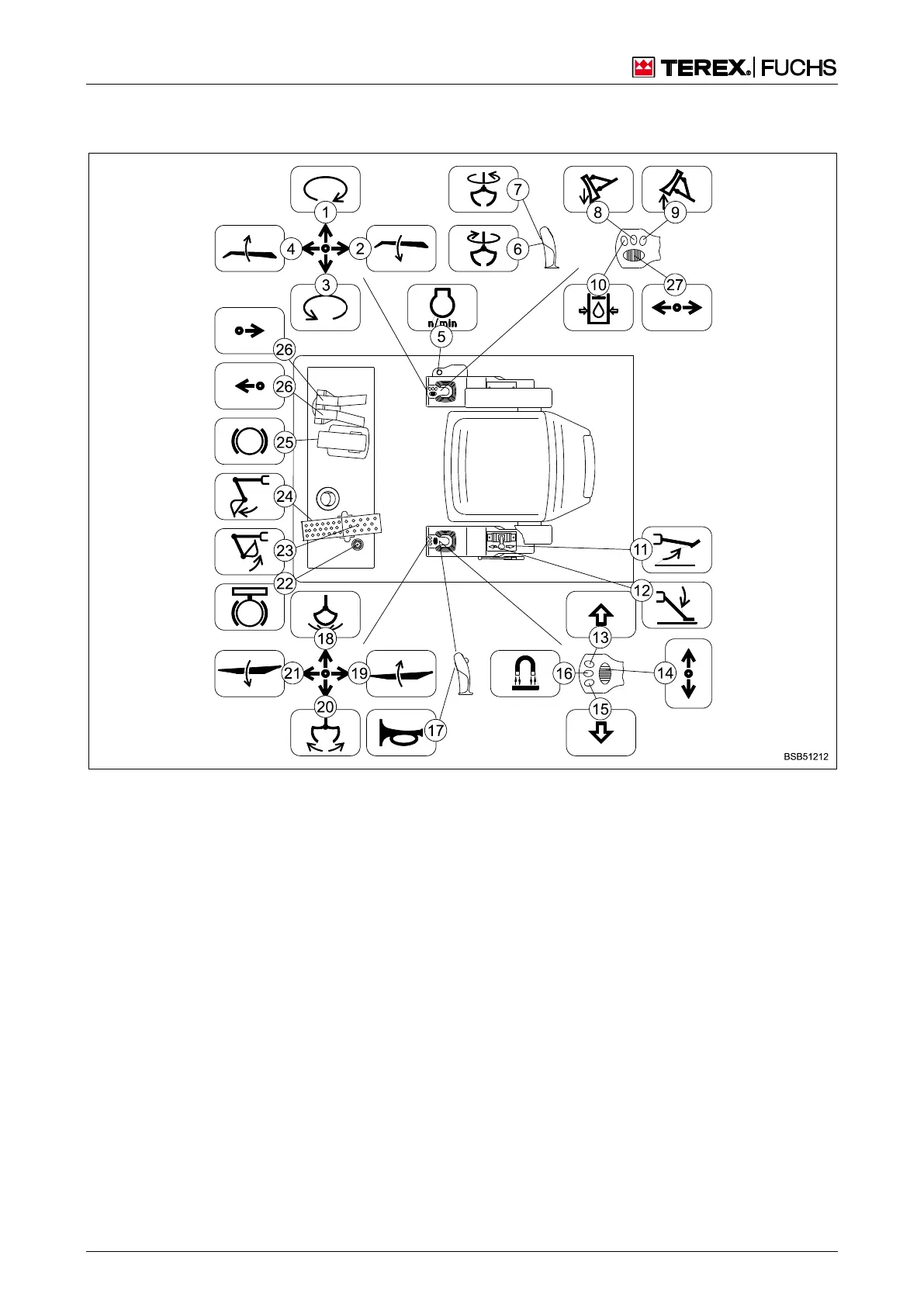

Fig. 30 Assignment with Liebherr control system: Steering with a four-way control lever (optional)
1 Swing uppercarriage clockwise
2
Retract dipperstick
3
Rotate uppercarriage counter-clockwise
4
Extend dipperstick
5
Engine speed
6
Clockwise grab rotation
7
Counter-clockwise grab rotation
8
Extend dozer blade
1)
9
Retract dozer blade
1)
1
0 Increase the operating pressure
1
1 Retract outrigger
1
2 Extend outrigger
1
3 Right indicator
14 Steering
1
5 Left indicator
1
6 Switch magnetization on/off
1)
1
7 Horn
1
8 Close grab
1
9 Raise boom
2
0 Open grab
2
1 Lower boom
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
2
7 Forwards/reverse travel
1)
1)
Optional
