5.6.3 Checking the control unit
j WARNING
Risk of injury due to incorrect
operation
• Always be aware of the possibility
of unexpected machine move-
ments.
• At a low engine speed, check
whether the machine movements
correspond to the sign (121/1).
• Start at low engine speed when
familiarizing yourself with the con-
trols and slowly increase it.
In an emergency: Administer first
aid, seek treatment from a doctor
►
Check which type of control unit the ma-
chine is equipped with.
h Chapter 4.2.1 Control units overview
►
Remain buckled in.
►
Fold down left armrest. The hydraulic work-
ing functions are now enabled.
►
Increase diesel engine speed.
h Chapter 5.7.1 Specifying the diesel en-
gine speed
►
Carefully operate the control elements indi-
cated on the sign.
h Chapter 5.13 Retracting or extending
outrigger
h Chapter 5.14 Locking or unlocking the
oscillating axle
h Chapter 5.15 Traveling
h Chapter 5.16 Charging
BSB51198
1

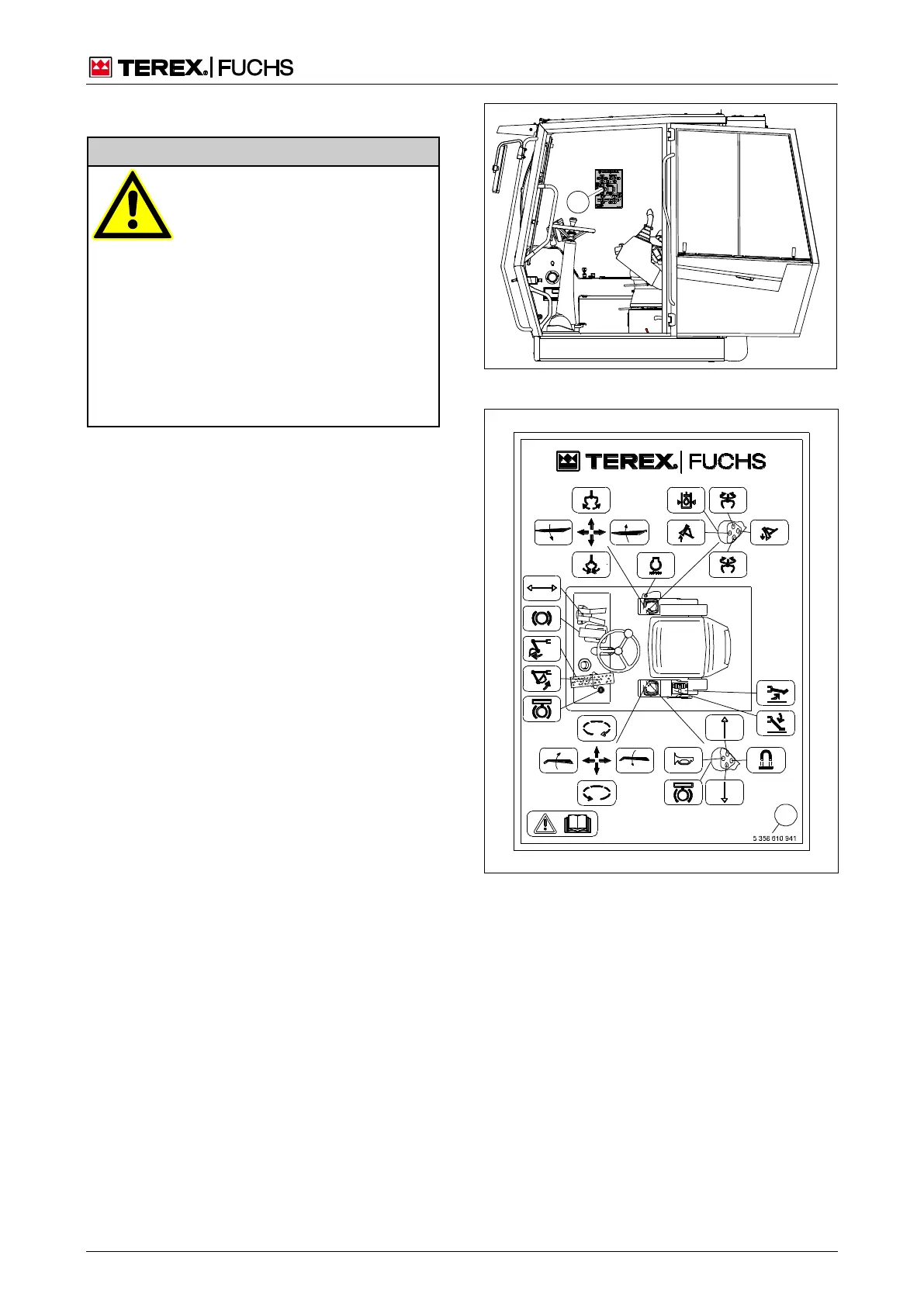

Fig. 121 Location of control sign
BSB50854
1
Fig. 122 Control sign (example)
