5.21.3 Coolant level
j WARNING
Risk of scalding by hot coolant.
Risk of burns due to hot machine
parts
• Do not top up coolant unless the
diesel engine has cooled down
In an emergency: Administer first
aid, seek treatment from a doctor
Filling level
Actions
Too low
Indicator (220/58)
Too low,
after 10
seconds
Start of the warning levels
Warning buzzer sounds at intervals
of one second
Indicator (219/14) and message
(219/34): „COOLANT" "FILLING
LEVEL"
Too low,
after 20
seconds
Continuous warning buzzer for 10
seconds
Too low,
after 30
seconds
Indicator (219/22) and message
(219/34): "WORK HYDRAULICS"
"DISABLED"
Disable the travel and work func-
tions
Sufficient Warning levels are reset
Travel and work functions enabled
again
Optical and acoustic warnings can-
celled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Visual inspection for potential leaks.
►
Top up coolant.
►
If the warning message persists, call for
service personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50641
14
34
33
22

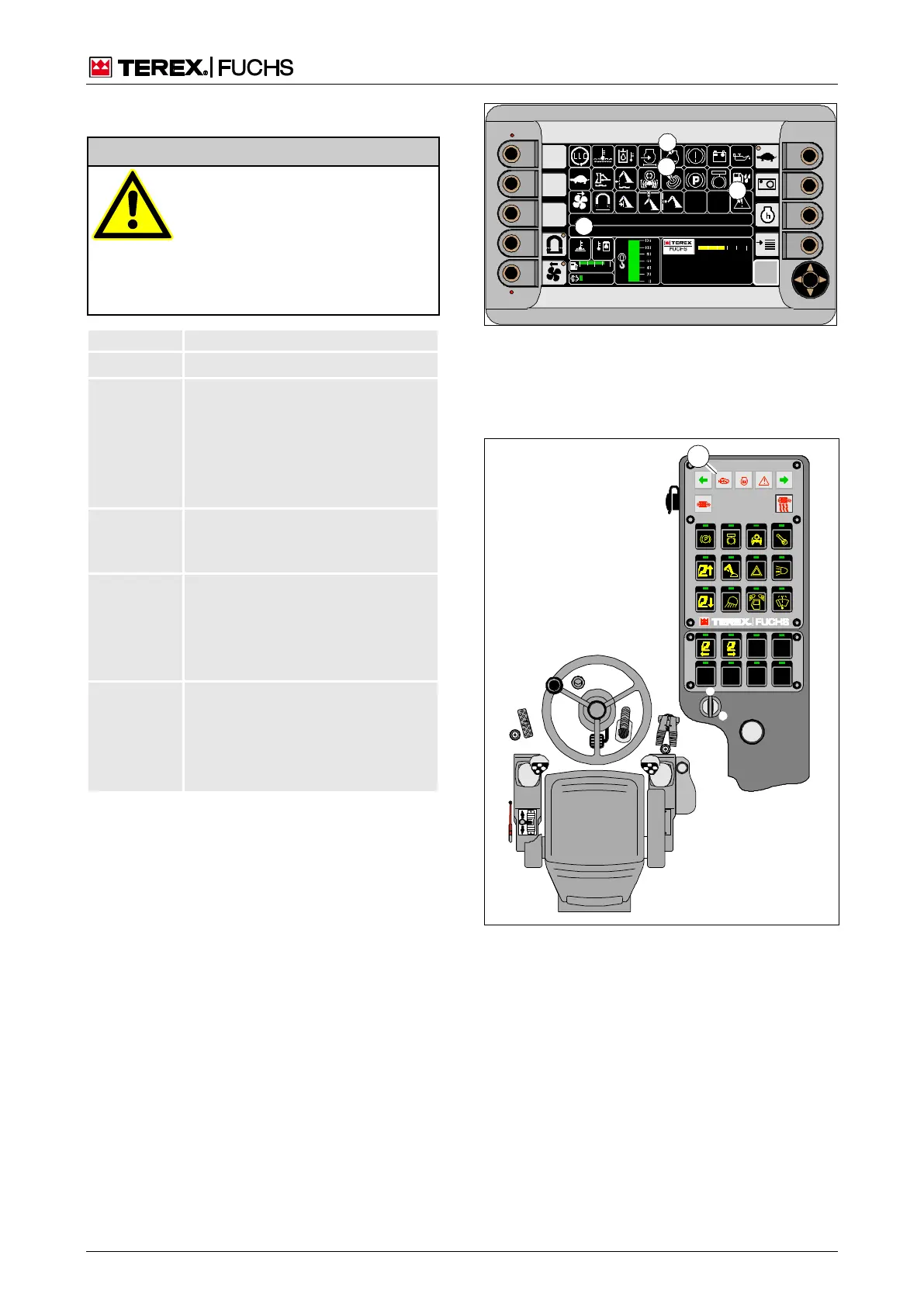

Fig. 219 Monitoring the coolant level
14 Indicator for coolant level or hydraulic oil level
22 Travel and work functions disabled indicator
33 Note text message indicator
34 Text message for the indicators
I
0
BSB50640
58
Fig. 220 Control panel display
58 Error display of the engine control system
