4.5.3 Gear shift
Depending on the desired travel speed, slow
gear or fast gear is available.
ATTENTION
Damage to transmission due to in-
correct operation.
h Chapter 5.15.2 Setting the ma-
chine in motion
Call-up
►
Main control display
Structure
The button is marked with the symbol (50/1).
In slow gear, a symbolized LED (50/2) also
appears. The current range is shown by the
indicator (50/3).
Operating note
►
Briefly press the side function button next
to the button (50/1).
or multifunction button
►
Navigate focus to button (50/1).
► Briefly press button.
BSB50553
F
09:43 11.03.2011
MHLXXX / XXXX
1800 UPM
0 5 10 15 20 25
120 0
ARBEITSHYDRAU LIK IST GESPERRT
FEHLERMELDUNG
95°C 75°C
0 ½ 1
9 %
BSB50559
2
3
1

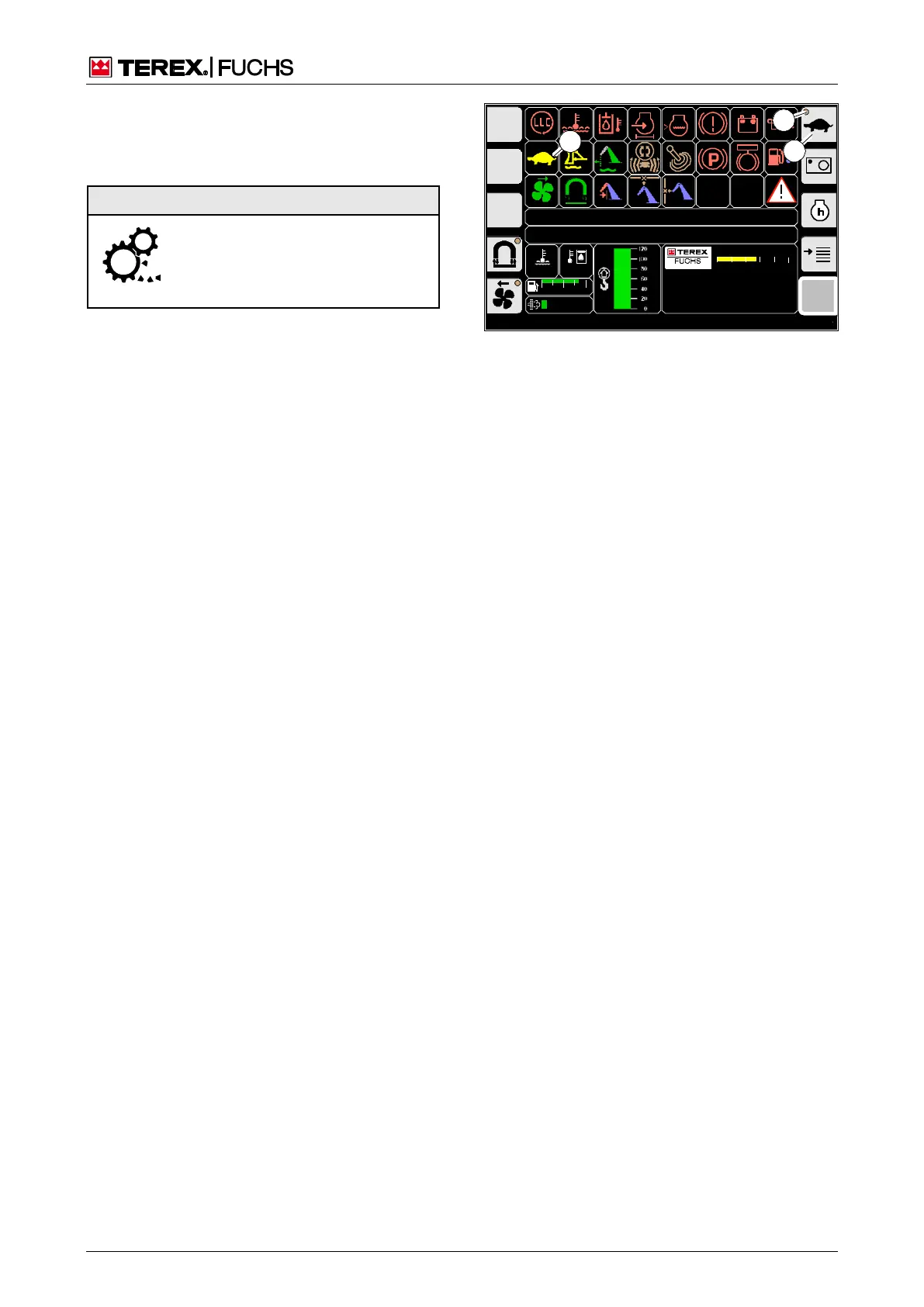

Fig. 50 Transmission control
