Terex MHL360 E - Height Limitation (Optional)

OPERATION 5
MHL360 E 5.55
5.19.3 Height limitation (optional)
j WARNING
Danger of injury from collisions
The height limitation is not a safety
device, rather, it is an auxiliary
function.
Collisions may arise due to:
- Work attachments
- Loading
- Cut-off path
• Maintain a safe distance in ac-
cordance with the risk of collision.
• No rapid movements of the boom
close to the cut-off points.
In an emergency: Administer first
aid, seek treatment from a doctor
Automatic cut-off
If the highest part of the loading equipment
reaches the cut-off limit (174/1), the height
limitation stops the functions of dipperstick
and boom that will exceed the cut-off limit with
further actuation. The coordinates of the cut-
off limit can be changed.
h Chapter 4.5.14.2 Set limits (optional)
The height limitation is always activated au-
tomatically when the ignition is switched on.
On the main control display, corresponding
indicators (176/30) and text messages
(176/34) appear.
Symbol
Limit
Actions
B SB507 65
Loading de-
vice outside
None
B SB507 68
1
Loading de-
vice in the
limit zone
Corresponding func-
tion is switched off
Indicator not flashing,
color (1): orange
Text message
"LOADING DEVICE HAS
REACHED HEIGHT
LIMIT"
1
4
3
4
2
BSB50783

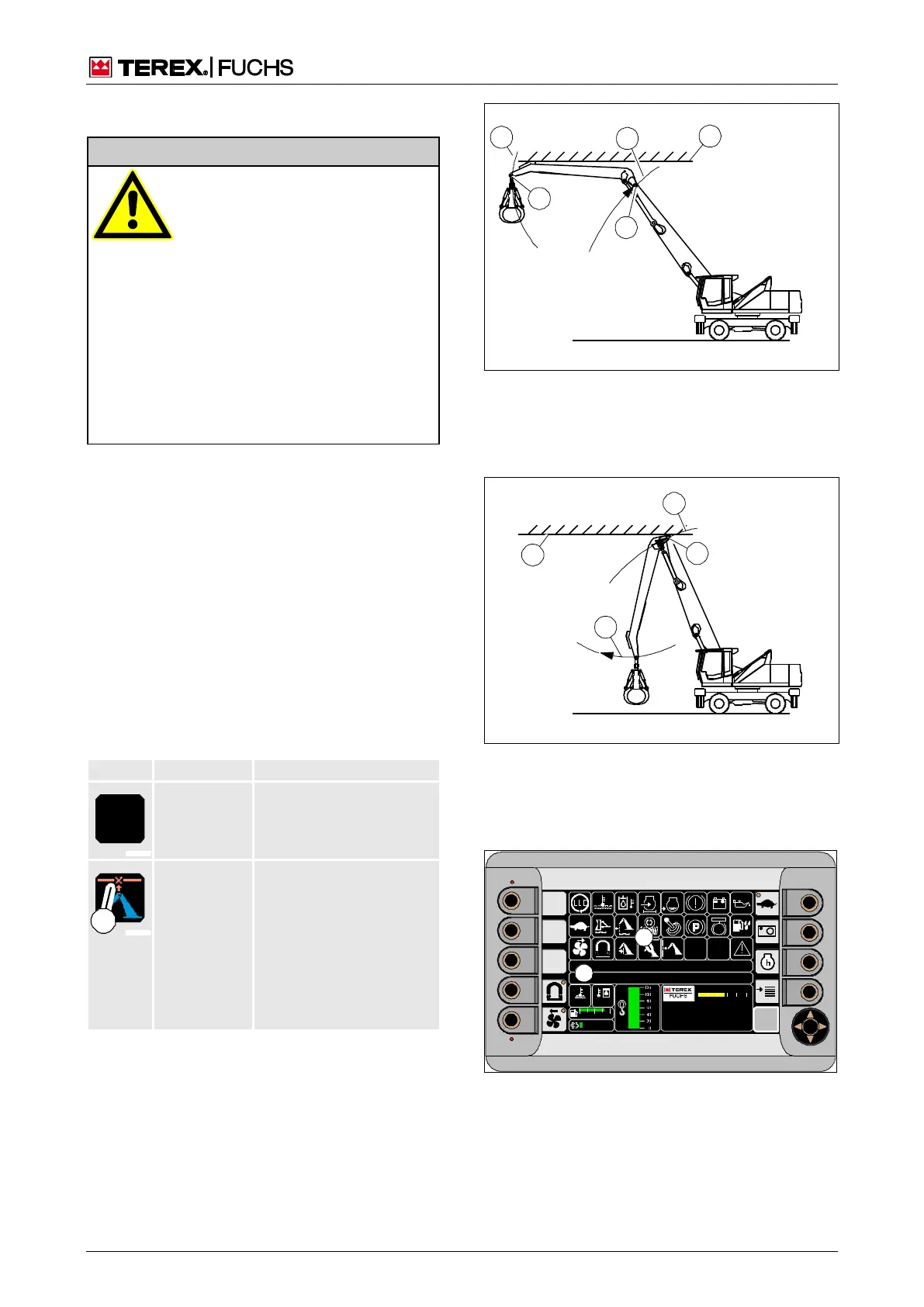

Fig. 174 Height limit
1 Prescribed height limit
2 Dipperstick extension cut-off
3 Boom raising cut-off
4 Override option
1
4
3
2
BSB50844
Fig. 175 Height limit
1 Prescribed height limit
2 Boom raising cut-off
3 Override option
4 Dipperstick not switched off
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50666
29
34
Fig. 176 Height limit
