Terex MHL360 E - Oil Pressure

5 OPERATION
5.84 MHL360 E
5.21.4 Oil pressure
j WARNING
Risk of burns due to hot machine
parts
• Do not top up engine oil until the
diesel engine has cooled down
In an emergency: Administer first
aid, seek treatment from a doctor
Pressure
Actions
Too low
Start of warning levels (brief de-
lay following engine start)
Continuous warning buzzer
Indicator (221/17) and message
(221/34): "ENGINE OIL
PRESSURE" "TOO LOW"
Start up at the lower idle speed
(only when the magnet system is
not switched on)
Drops
further
Indicator (221/22) and message
(221/34): "WORK
HYDRAULICS" "DISABLED"
Disable the travel and work func-
tions
Drops
further
Indicator (222/58)
Reduction of diesel engine output
to 80%
Drops
further
Diesel engine off.
Sufficient
Warning levels are reset (after a
brief delay)
Travel and work functions ena-
bled again
Optical and acoustic warnings
cancelled again
Engine output enabled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Visual inspection for potential leaks.
►
Top up engine oil
►
If the warning message persists, call for
service personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50642
17
34
33
22

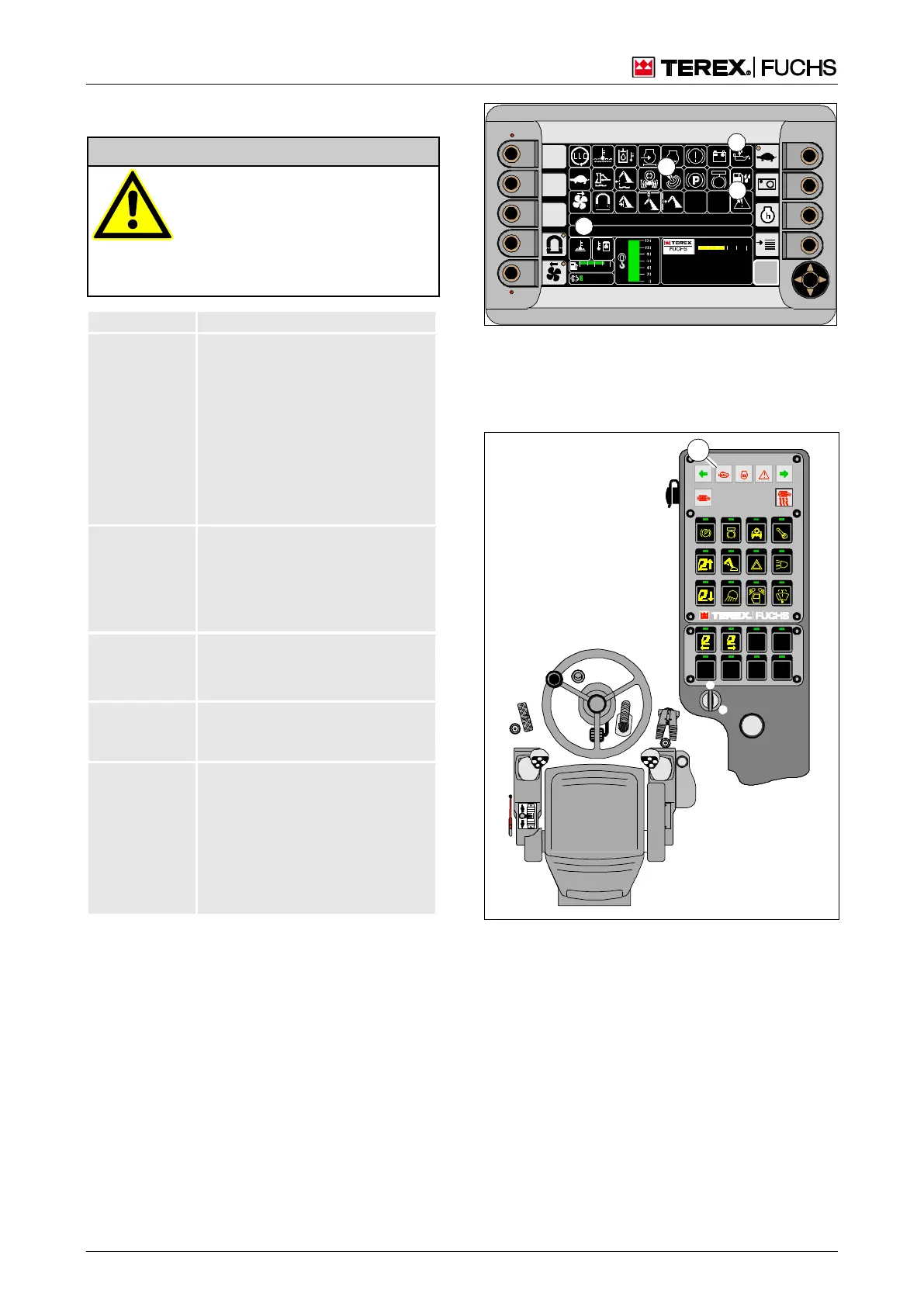

Fig. 221 Monitoring the oil pressure
17 Indicator for engine oil pressure control
22 Travel and work functions disabled indicator
33 Note text message indicator
34 Text message for the indicators
I
0
BSB50640
58
Fig. 222 Control panel display
58 Error display of the engine control system
