Terex MHL360 E - LMB;HRB Diagnostics

4 DISPLAY AND CONTROL ELEMENTS
4.42 MHL360 E
4.5.13.5 LMB/HRB diagnostics
This display screen shows limit values and
current operating data for the loading equip-
ment.
Call-up
►
Main control display > Main menu > Diag-
nostics menu > LMB/HRB diagnostics
Structure
The loading equipment is displayed with its
articulation points on the coordinate system
on the left side:
 Pin eye (76/1) with the current coordinates
in (m).
 Dipperstick - boom joint (76/2) with the cur-
rent coordinates in (m) and the angle of ro-
tation in (°).
 Boom - uppercarriage joint (76/3) with the
current coordinates in (m) and the angle of
rotation (°).
 Symbol (76/3) shows the status of the
close-range expansion.
 The predetermined values for the range
limit and height limit (76/4) are shown in red.
h Chapter 5.19 Important functions
Hydraulic valves for moving the loading
equipment are displayed on the right side
(76/5):
 Green background: Hydraulic valves are
enabled
 Red background: Hydraulic valves are disa-
bled
Under this, the appropriate hydraulic load limit
pressures (76/6) for the current boom position
are displayed in (bar).
The load pressure generated by the instanta-
neous load is measured by a pressure sensor.
The measured value is displayed as a per-
centage of the load limit pressure with a bar
graph (76/7).
h Chapter 5.19 Important functions
9.59
7.54
BSB50635
Q24 B oom Up
Q23 B oom Dow n
Q22 Stick O ut
Q6 Stick In
Load Lim. Press.
... bar
2
1
4
3
5
Load Lim . Press.
380 bar
Load Press. bottom
... bar
6
Load Lim . Press.
380 bar
Load Press. rod
... bar
Load Lim . Press.
380 bar
Load Press. result
... bar
Load Lim . Press.
380 bar
Load value [% ]
.. %
7
8
9

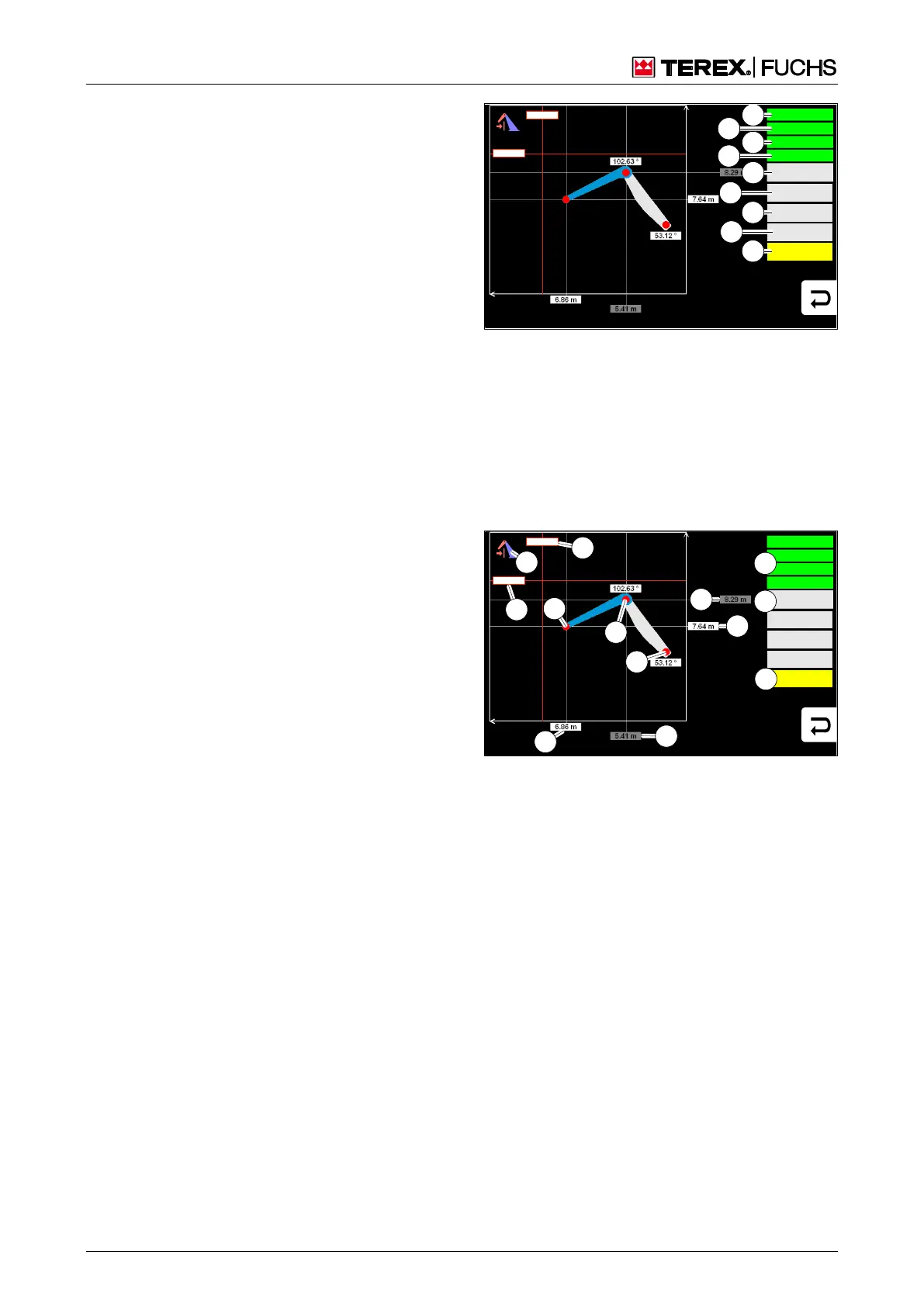

Fig. 75 LMB/HRB diagnostics
1 Q24 Boom up
2 Q23 Boom down
3 Q22 Stick out
4 Q6 Stick in
5 Load limit pressure (bar)
6 Ground load pressure (bar)
7 Rod load pressure (bar)
8 Resulting load pressure (bar)
9 Load value (%)
9.59
7.54
BSB50628
Q24 Boom Up
Q23 Boom Down
Q22 Stick Out
Q 6 Stic k In
Load Lim . Press.
380 bar
120%
100%
80%
60%
40%
20%
0 %
1
2
3
1
1
2
2
4
4
5
6
7
9.59
7.54
Q24 B oom Up
Q23 B oom Dow n
Q22 Stick O ut
Q6 Stick In
Load Lim. Press.
... bar
Load Lim . Press.
380 bar
Load Press. bottom
... bar
Load Lim . Press.
380 bar
Load Press. rod
... bar
Load Lim . Press.
380 bar
Load Press. result
... bar
Load Lim . Press.
380 bar
Load value [% ]
.. %
BSB50628
1
2
3
1
1
2
2
4
4
5
6
7
8
Fig. 76 LMB/HRB diagnostics
