Terex MHL360 E - Overview of Symbols

DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.23
4.4 Overview of symbols
4.4.1 Main control display symbol
BSB50746
09:43 11.03.2011
MHLXXX / XXXX / LE XXX
1800 UPM
0 5 1 0 1 5 2 0 2 5
120 0
ARBEITSHYDRAULIK IST GESPERRT
FEHLERMELDUNG
95°C 75°C
0 ½ 1
9 %
F
3 4
3 5 3 6
3 7
3 8
3 9
4
9
3
8
2
7
1
6
0
5
1 0 11 1 2
1 3
1 4 1 5 1 6 1 7
1 8
1 9 2 0
2 1 2 2
2 3
2 4
2 5
2 6
2 7
2 8 2 9 3 0 3 1 3 2 3 3
120
100
8 0
6 0
4 0
2 0
0

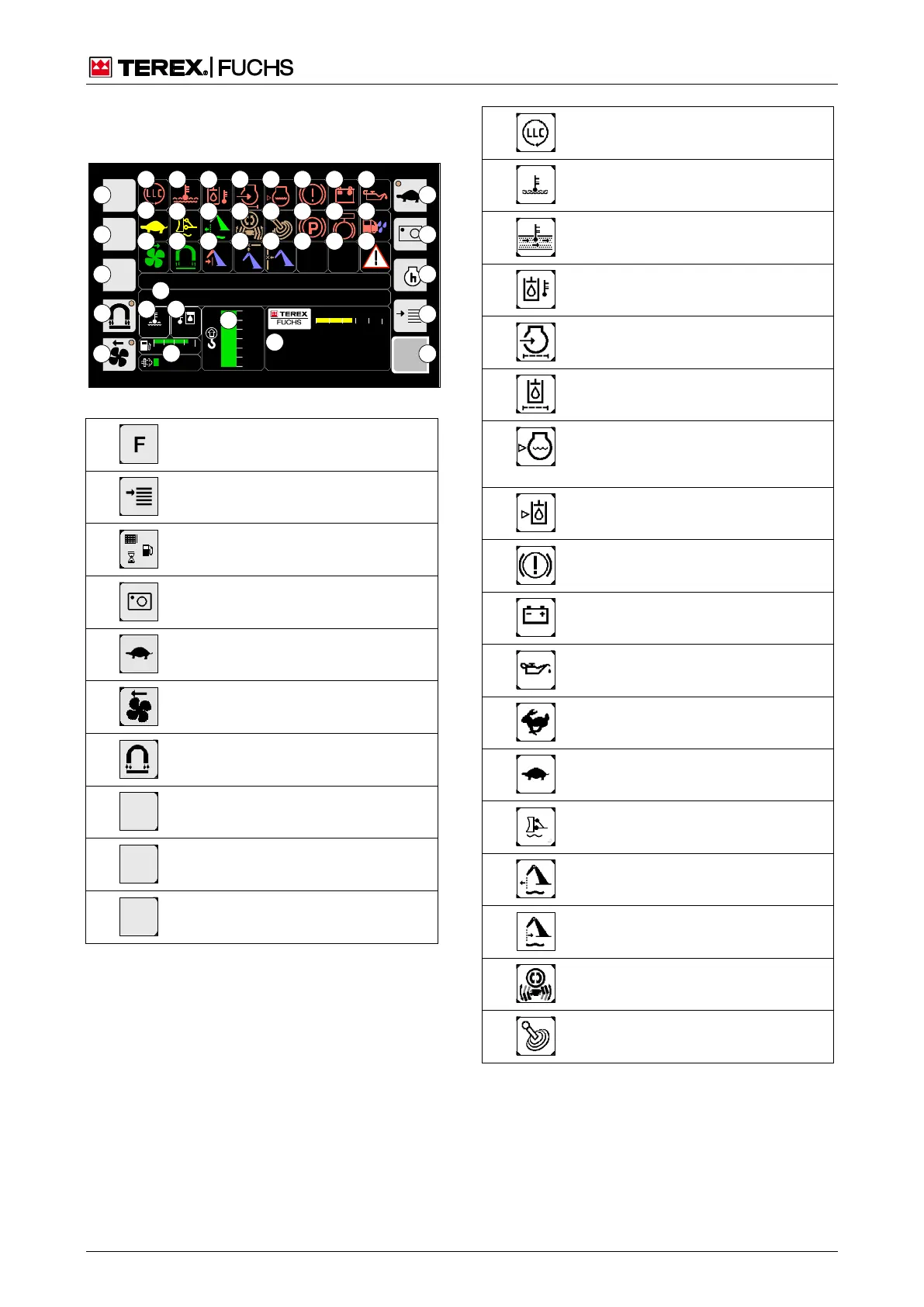

Fig. 42 Symbols on the main control display
0
BSB 50681
Calling up the function menu
1
BSB 50680
Calling up the main menu
2
BSB 50682
Switching the time/operating hours
display
3
BSB 50683
Rear view camera
4
BSB 50683BSB 50684BSB 50685
Gear shift
5
BSB 50751
Reversing fan
6
BSB 50686
Magnet system
7
BSB 50688
FQC
Fuchs Quick Connect (Special equip-
ment)
8
BSB 50689
Not Used
9
BSB 50689
Not Used
10
BSB 50690
Indicator - malfunction in load limit
sensing control
11
BSB 50691
Indicator - coolant temperature
BSB 50749
Indicator - charge air temperature
12
BSB 50693
Indicator - hydraulic oil temperature
13
BSB 50694
Indicator - air filter clogging
BSB 50748
Indicator - return air filter clogging
14
BSB 50695
Indicator - coolant level
BSB 50692
Indicator - hydraulic oil level
15
BSB 50696
Indicator – service brake
16
BSB 50697
24.0 V
Indicator – battery charge and battery
voltage
17
BSB 50698
Indicator – engine oil pressure
18
BSB 50699
Indicator – gear shift - high-gear
BSB 50700
Indicator – gear shift - slow gear
19
BSB 50850B SB50 850BSB5 0701
Dozer blade
20
BSB 50702
Indicator – boom float function – re-
mote range (optional)
BSB 50722
Indicator – boom float function – close
range (optional)
21
BSB 50703
Indicator – oscillating axle unlocked
22
BSB 50704
Indicator - shutdown of driving and
working functions
