Terex MHL360 E - Safety Signs and Color Symbols; Locations on the Machine

2 SAFETY AND ACCIDENT PREVENTION
2.2 MHL360 E
2.2 Safety signs and color symbols
Various symbols are used on the machine. These should be visible and legible at all times.
2.2.1 Locations on the machine
BSB51044
3
4
3
4
52
1
51
2
2322
20 21
25
53 54
55
56
55
57
57
64
50 50
24 26
6160
65
62 63

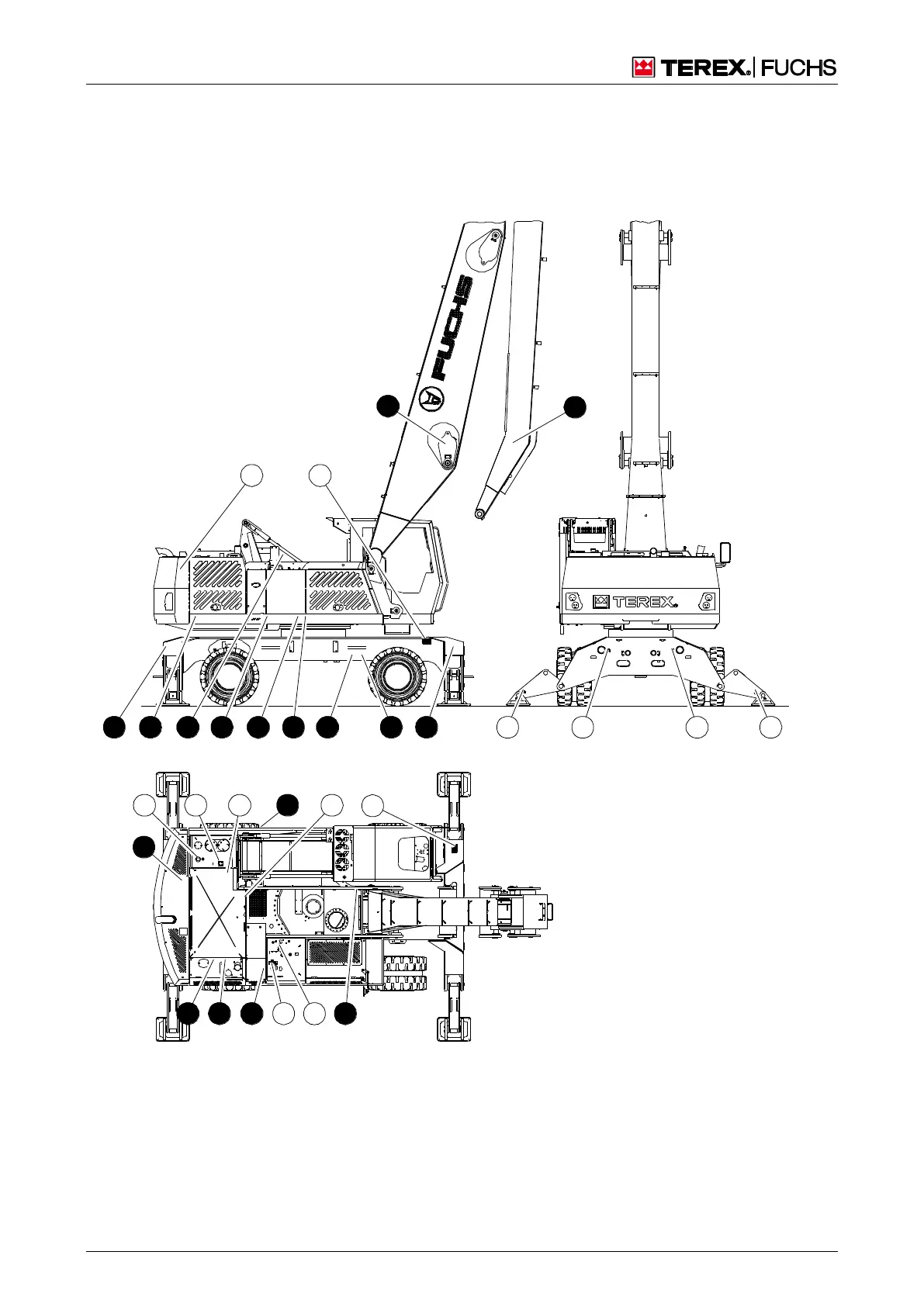

Fig. 4 Overview
64 Decals under the engine hood
65 Decals in the pressure accumulator area (under the cab lift mechanism and under the bottom plate of
the cab)
