Terex MHL360 E - Loading Equipment 18 M Cranked; Technical Data

3 TECHNICAL DATA
3.10 MHL360 E
3.3.3 Loading equipment 18 m cranked
360-0560-505
F
D
A
1
BC
H
G
E
2

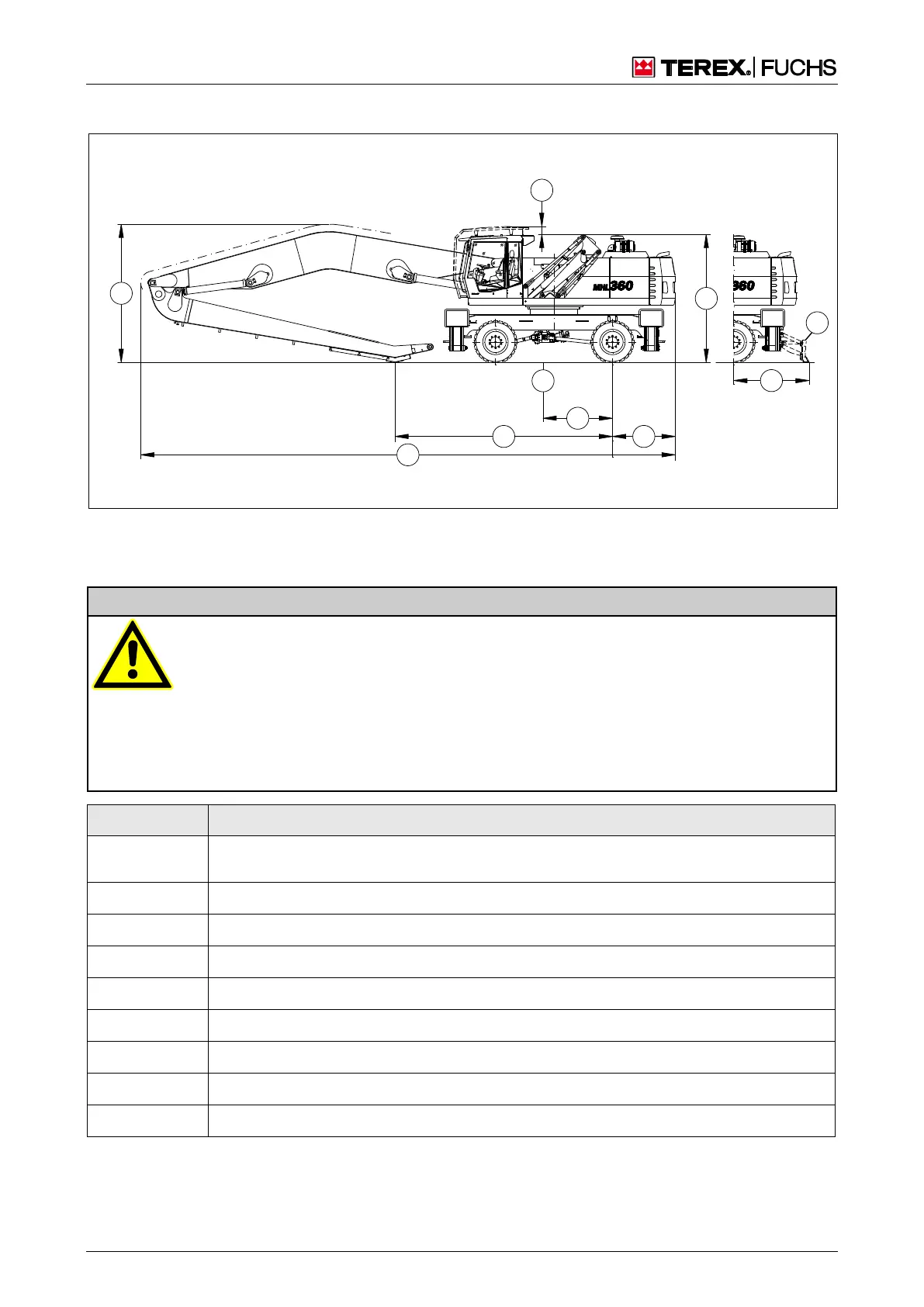

Fig. 16 Transport dimensions (work equipment offset)
1 Average center of gravity in transport position
2: 18 m transport position. If using a dozer blade (optional), the undercarriage is rotated 180°.
j WARNING
Danger of injury due to loading machine toppling over
The dozer blade is always in front of the steering axle.
• Only drive the machine on to the transport equipment with the combination of loading
equipment and dozer blade (optional) shown above to comply with the transport height with
rotated uppercarriage.
• Since the steering movements are reversed when the uppercarriage is rotated, drive slowly
and with care.
In an emergency: Administer first aid, seek treatment from a doctor
TRANSPORT DIMENSIONS
Dimensions in
mm
Loading equipment 18 m cranked
A
14620
B
1720
C
5950
D
3500
E
3780
F
220
G
2060
H
1900
