Terex MHL360 E - Loading with a Crane

RECOVERY, LOADING AND TRANSPORT 6
MHL360 E 6.5
6.2 Recovery of the machine
If the machine is stuck fast on difficult terrain,
do not attempt to free it by rocking. The ma-
chine can be pulled free with the aid of the
loading equipment. In certain conditions, the
work attachment must be removed.
If the machine cannot be freed using the load-
ing equipment, it must be towed clear in the
manner described.
h Chapter 6.1 Towing the machine
If the machine needs to be recovered, for ex-
ample because of a technical defect, it can
only be lifted and loaded with a suitable crane
in the manner described.
h Chapter 6.3 Loading with a crane
6.3 Loading with a crane
j WARNING
Danger of injury due to machine
toppling over
• Remove pivot-mounted work at-
tachments such as a grab or
magnet before the machine is lift-
ed because of possible swinging
movements.
• Assign only experienced persons
the task of attaching loads and
signaling to guide crane drivers.
Banksmen must remain within
the operator's range of vision or
stay in voice contact.
• Do not stand under the raised
loading machine.
In an emergency: Administer first
aid, seek treatment from a doctor
►
Remove support feet from the outrigger
legs.
►
A hoisting device can be obtained from
TEREX | Fuchs. The pins and fastening el-
ements match the attachment of the out-
rigger feet.
►

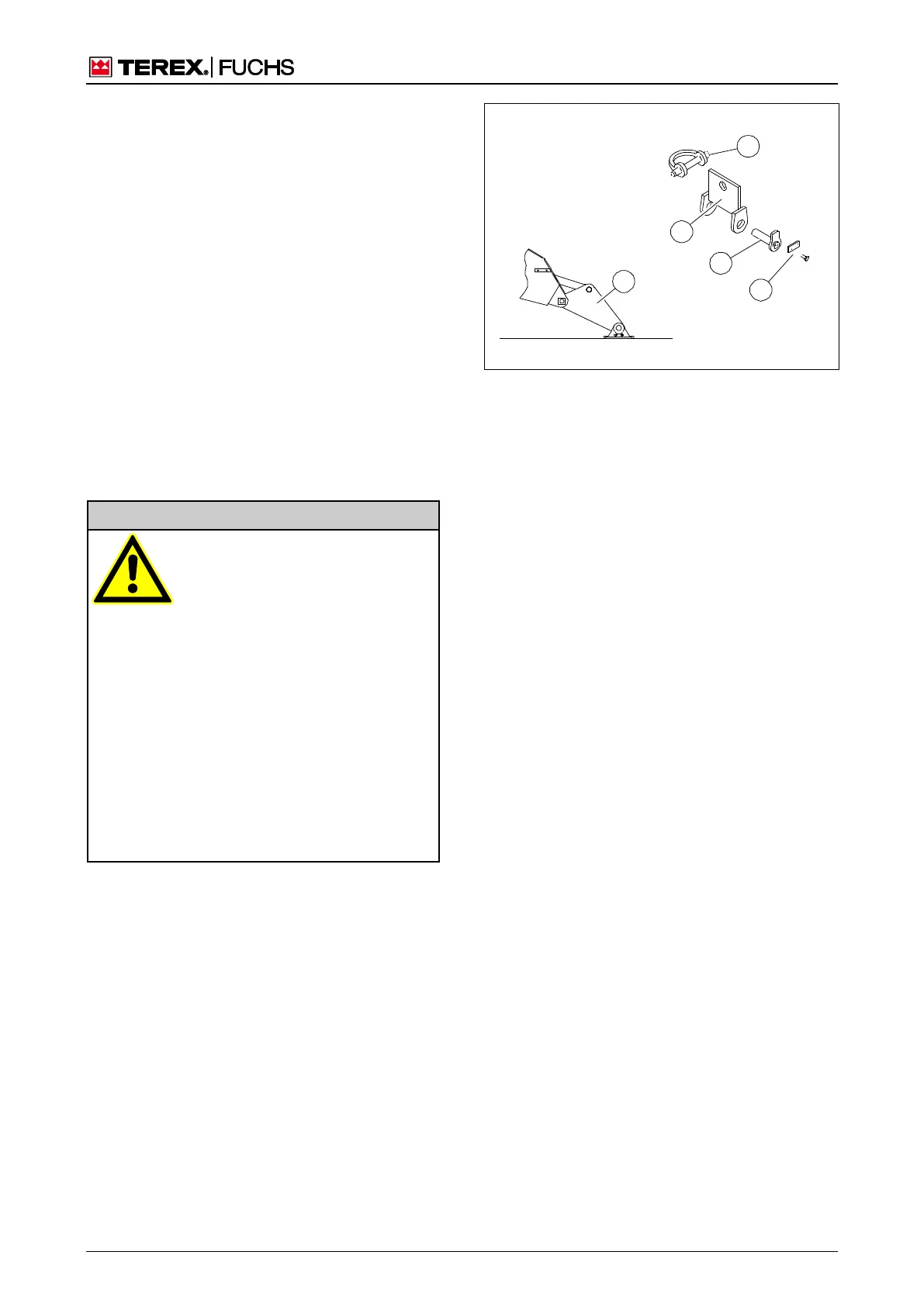

Attach hoisting device (241/1) with the pins
(241/2) and the fastening elements (241/3).
►
Set outriggers (241/4) in horizontal posi-
tion.
5
1
2
3
4
BSB50888
Figure 241 Hoisting device
