5.21.5 Charge air temperature
Temp. (°C)
Actions
Above 120
Start of the warning levels
Warning buzzer sounds at intervals
of one second
Indicator (223/11) and message
(223/34): "CHARGE AIR"
"TEMPERATURE"
After a brief
delay
Reduction of diesel engine output
according to temperature by up to
80%. Indicator (224/58).
Above 125
Continuous warning buzzer
Indicator (223/22) and message
(223/34): "WORK HYDRAULICS"
"DISABLED"
Disable the travel and work func-
tions
Start up at the upper idle speed
Above 129
Indicator (224/58) flashes. Diesel
engine off.
Below 117
Warning levels are reset
Travel and work functions enabled
again
Optical and acoustic warnings can-
celled again
Below 116
Engine output enabled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Check the water/charge cooler for contam-
ination. Clean if necessary.
►
If the warning message persists, call for
service personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50643
34
33
11
22

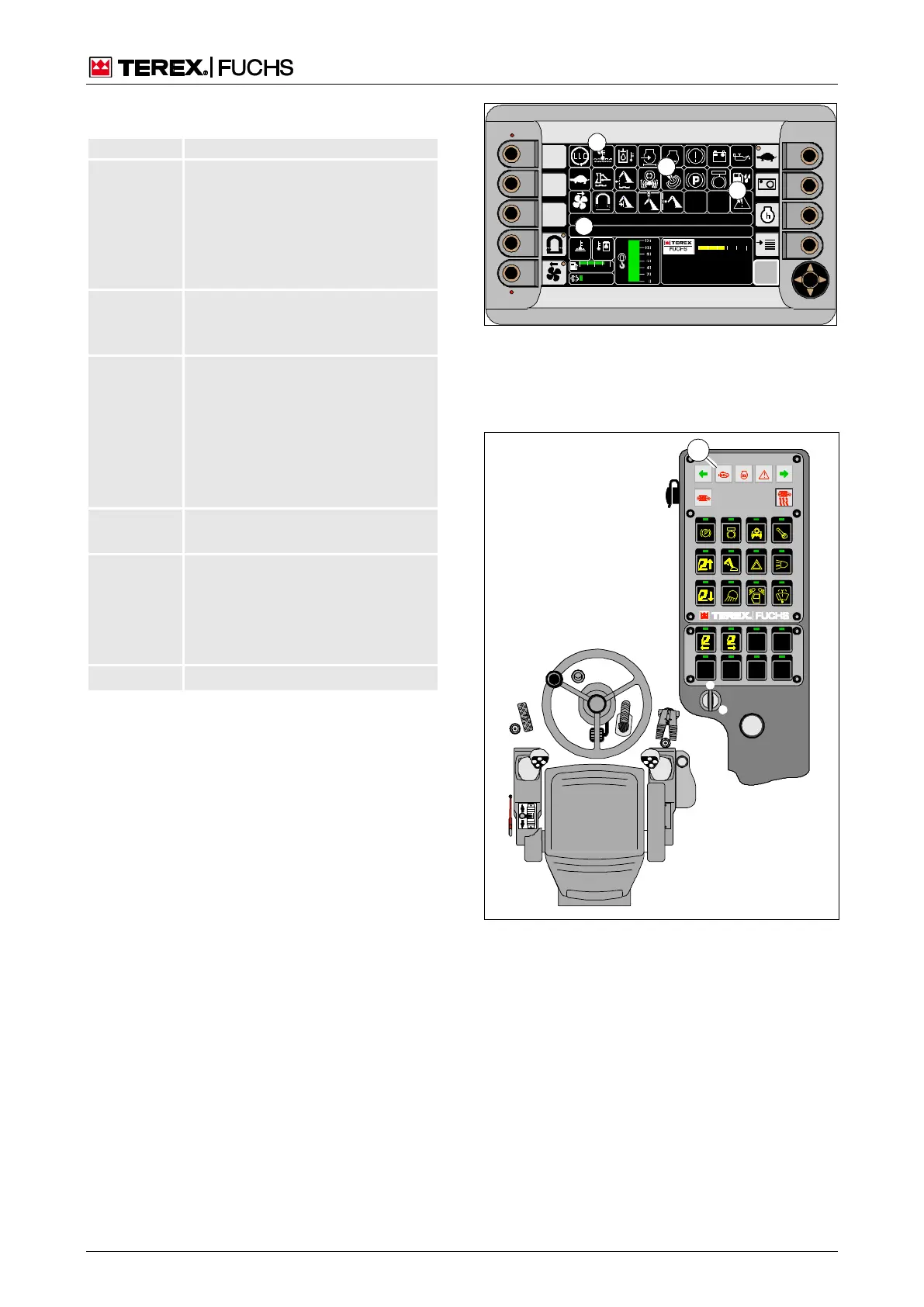

Fig. 223 Monitoring the charge air temperature
11 Indicator for charge air temperature
22 Travel and work functions disabled indicator
33 Note text message indicator
34 Text message for the indicators
I
0
BSB50640
58
Fig. 224 Control panel display
58 Error display of the engine control system
