Terex MHL360 E - ISO Control System

DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.7
4.2.2 ISO control system
 Current machine control unit (if yes, please tick)

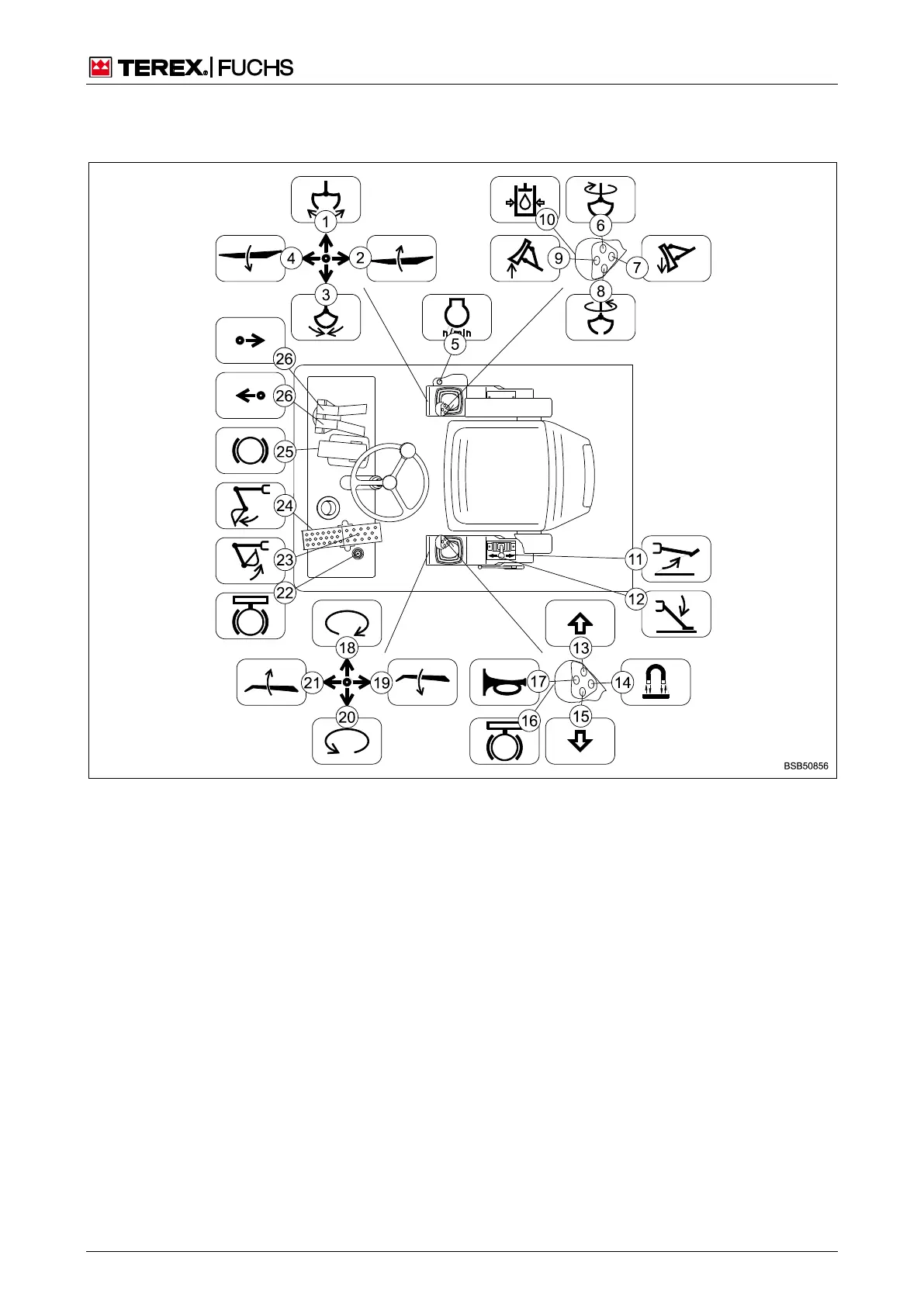

Fig. 23 Assignment with ISO control system
1 Open grab
2
Raise boom
3
Close grab
4
Lower boom
5
Engine speed
6
Clockwise grab rotation
7
Extend dozer blade
1)
8
Counter-clockwise grab rotation
9
Retract dozer blade
1)
1
0 Increasing the operating pressure
1
1 Retract outrigger
1
2 Extend outrigger
1
3 Right indicator
14 Switch magnetization on/off
1)
1
5 Left indicator
1
6 Swing brake
1
7 Horn
1
8 Swing uppercarriage clockwise
1
9 Retract dipperstick
2
0 Rotate uppercarriage counter-clockwise
2
1 Extend dipperstick
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
1)
Optional
