Terex MHL360 E - Function Menu

DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.25
4.4.2 Function menu
BSB51001
7469 70 71 72
73
41 42 43 44
47
68
40
48 49 50 51
55 56 57 58 59
64 65 66
60
67
45
52
46
62
53
63
54
61

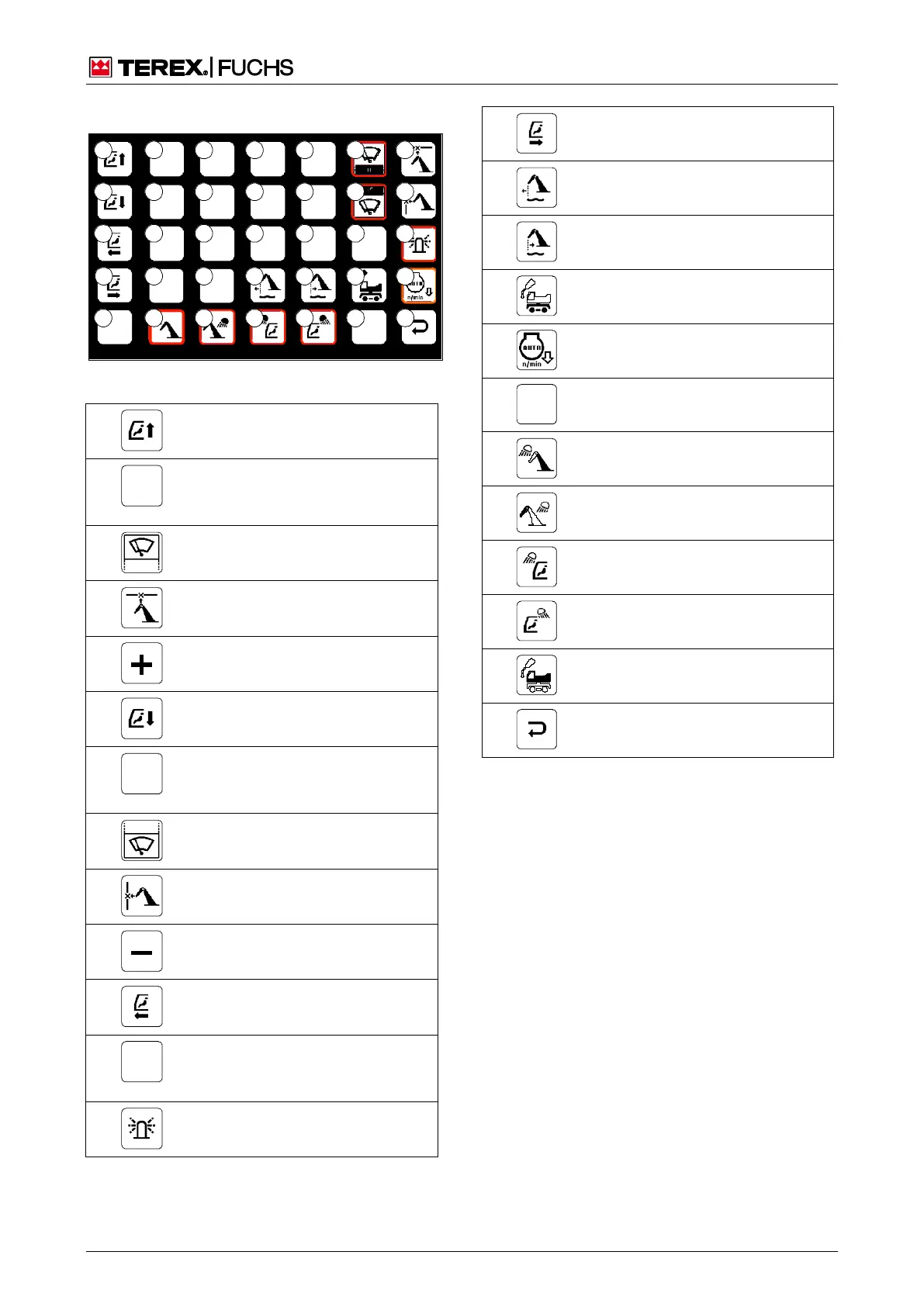

Fig. 44 Function menu symbols
40
BSB 50723
Raise cab
41
-
44
BSB 50723
Not Used
45
BSB 50724
Upper window section windshield
wiper
46
BSB 50732
Height limitation
BSB 50730
Increase setting value
47
BSB 50725
Lower cab
48
-
51
BSB 50723
Not Used
52
BSB 50727
Lower window section windshield
wiper
53
BSB 50733
Range limiting
BSB 50738
Reduce setting value
54
BSB 50728
Cab forward
55
-
59
BSB 50723
Not Used
60
BSB 50729
Flashing beacon
61
BSB 50731
Cab backward
64
BSB 50734
Boom float function - remote range
65
BSB 50735
Boom float function - close range
66
BSB 50736
Manual lubrication impulse uppercar-
riage
67
BSB 50737
Auto-idling system
68
BSB 50723
Not Used
69
BSB 50740
Dipperstick headlights
70
BSB 50741
Boom headlights
71
BSB 50742
Front cab headlights
72
BSB 50743
Rear cab work lights
73
BSB 50744
Manual lubrication pulse, undercar-
riage (optional)
74
BSB 50745
Exit function menu
