5.21.9 Hydraulic oil level
j WARNING
Risk of burns due to hot machine
parts
• Only top up hydraulic oil when the
loading machine has cooled down
In an emergency: Administer first
aid, seek treatment from a doctor
Filling level
Actions
Too low
Start of the warning levels
Continuous warning buzzer
Indicator (228/14) and message
(228/34): „HYDRAULIC OIL"
"FILLING LEVEL"
Indicator (228/22) and message
(228/34): "WORK HYDRAULICS"
"DISABLED"
Disable the travel and work func-
tions
Sufficient
Warning levels are reset
Optical and acoustic warnings
cancelled again
Travel and work functions ena-
bled again
Measures to be taken when a warning oc-
curs
►
Switch off the diesel engine as quickly as
possible.
►
Visual inspection for potential leaks.
►
Top up hydraulic oil.
►
If the warning message persists, call for
service personnel.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50647
14
34
33
22

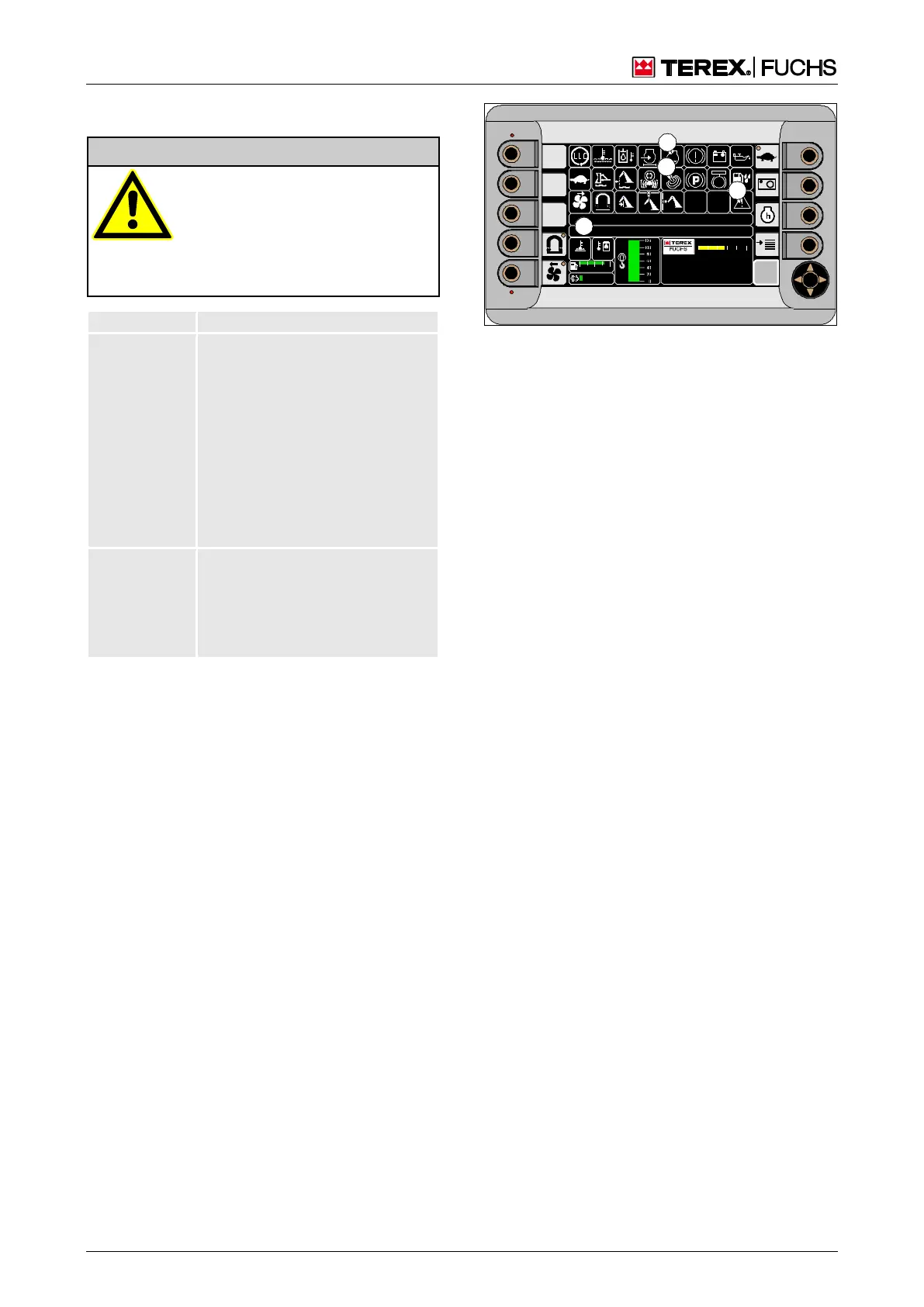

Fig. 228 Monitoring the hydraulic oil level
14 Indicator for hydraulic oil level
22 Travel and work functions disabled indicator
33 Note text message indicator
34 Text message for the indicators
