4.2.6 ISO control system: Steering with a four-way control lever (optional)
 Current machine control unit (if yes, please tick)

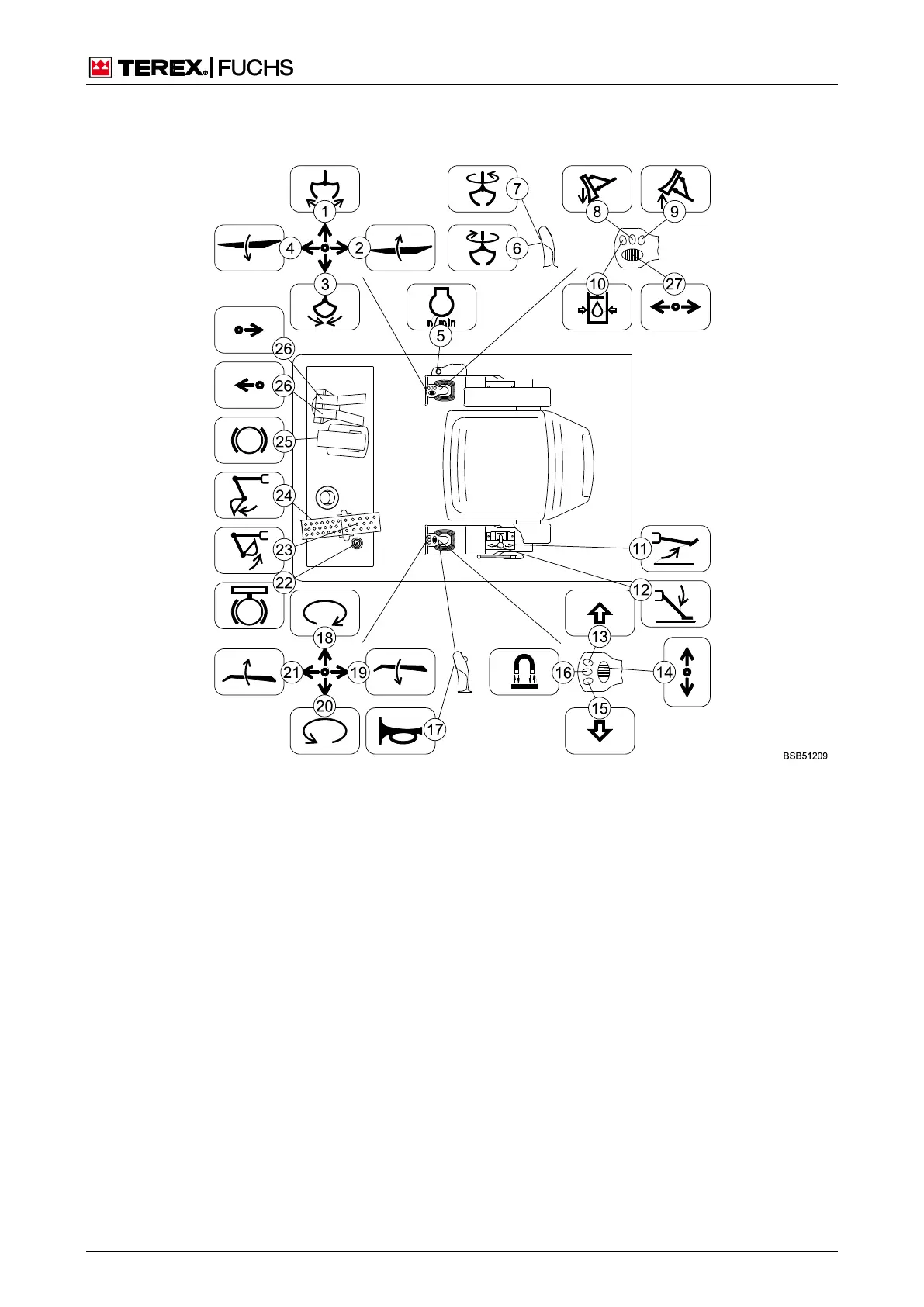

Fig. 27 Assignment with ISO control: Steering with a four-way control lever
1 Open grab
2
Raise boom
3
Close grab
4
Lower boom
5
Engine speed
6
Clockwise grab rotation
7
Counter-clockwise grab rotation
8
Extend dozer blade
1)
9
Retract dozer blade
1)
1
0 Increasing the operating pressure
1
1 Retract outrigger
1
2 Extend outrigger
1
3 Right indicator
14 Steering
1
5 Left indicator
1
6 Switch magnetization on/off
1)
1
7 Horn
1
8 Swing uppercarriage clockwise
1
9 Retract dipperstick
2
0 Rotate uppercarriage counter-clockwise
2
1 Extend dipperstick
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
2
7 Forwards/reverse travel
1)
1)
Optional
