5.14.2 Locking and unlocking
The oscillating axle can be locked or unlocked
with the button toggle (150/63). The indicator
on the button toggle 150/63) and the indica-
tors (149/21) and (150/34) on the main control
display indicate the status.
(150/63)
(149/21)
Oscillating axle
B SB507 58
B SB507 65
Indicator off: locked
B SB507 59
B SB508 24
Indicator on: unlocked
The oscillating axle is locked automatically
when the parking brake (150/54) is applied or
if the diesel engine is stopped, even if the
button toggle (150/63) is switched on.
►
Diesel engine is running.
►
Press the button toggle (150/63) as need-
ed.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
34
21
33
BSB50657

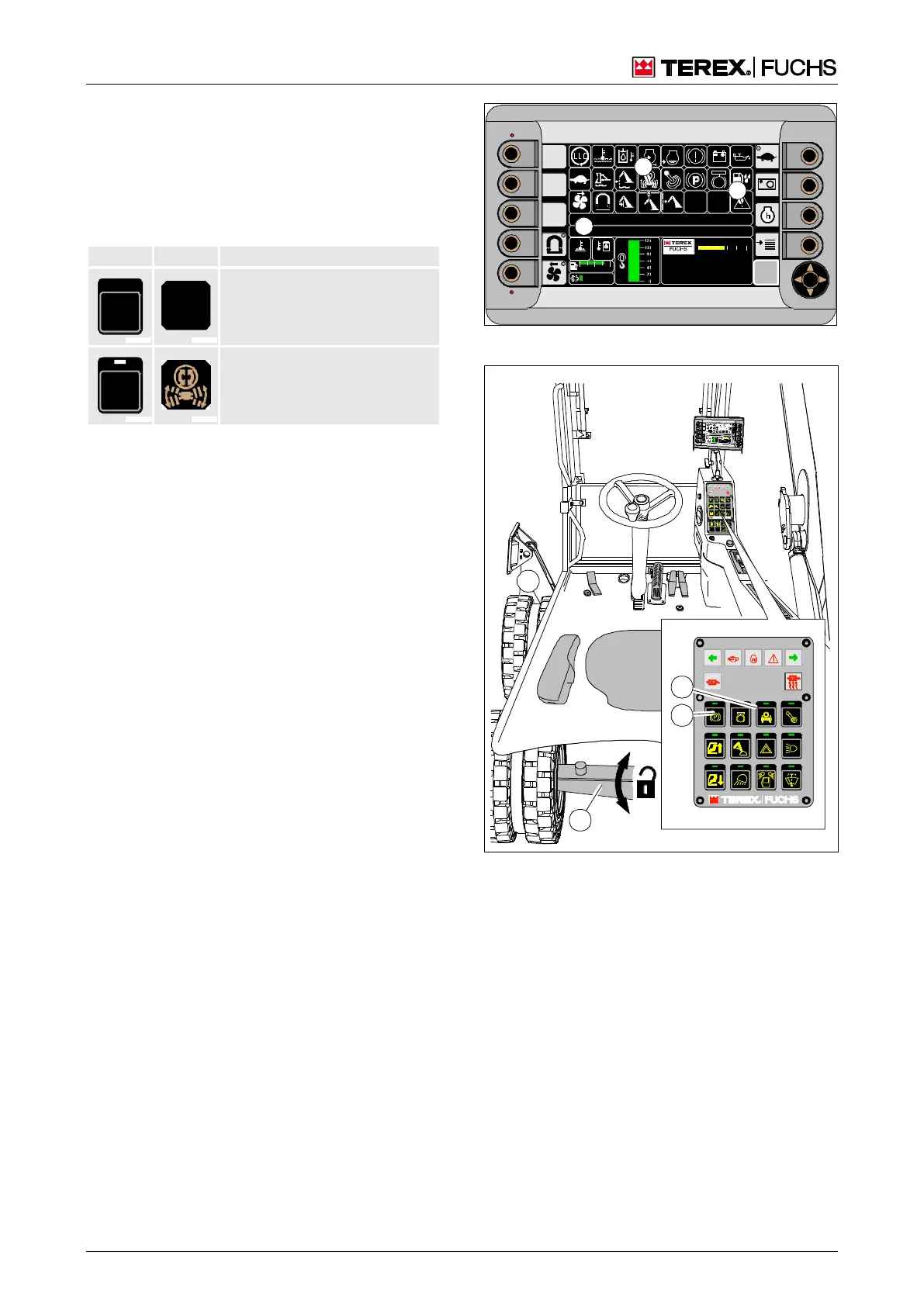

Fig. 149 Oscillating axle unlocking
BSB50955BSB50963
54
1
2
63
Fig. 150 Oscillating axle unlocking
1 Steering axle
2 Oscillating axle unlocked
