5.16.3 Moving the loading equipment
The assignment of the four-way control levers
differs according to the control unit. Fig. 161
shows the ISO control unit.
►
The diesel engine is running, the left arm-
rest is flipped down.
►
Move the four-way control lever slowly. The
further it is pressed, the faster the move-
ment.
Raise and lower boom

ISO

Fuchs

O&K
 Liebherr
Retract and extend dipperstick

ISO

Fuchs

O&K

Liebherr
BSB50954
92
94
90
96
94
96
90
92
90
92
3 13

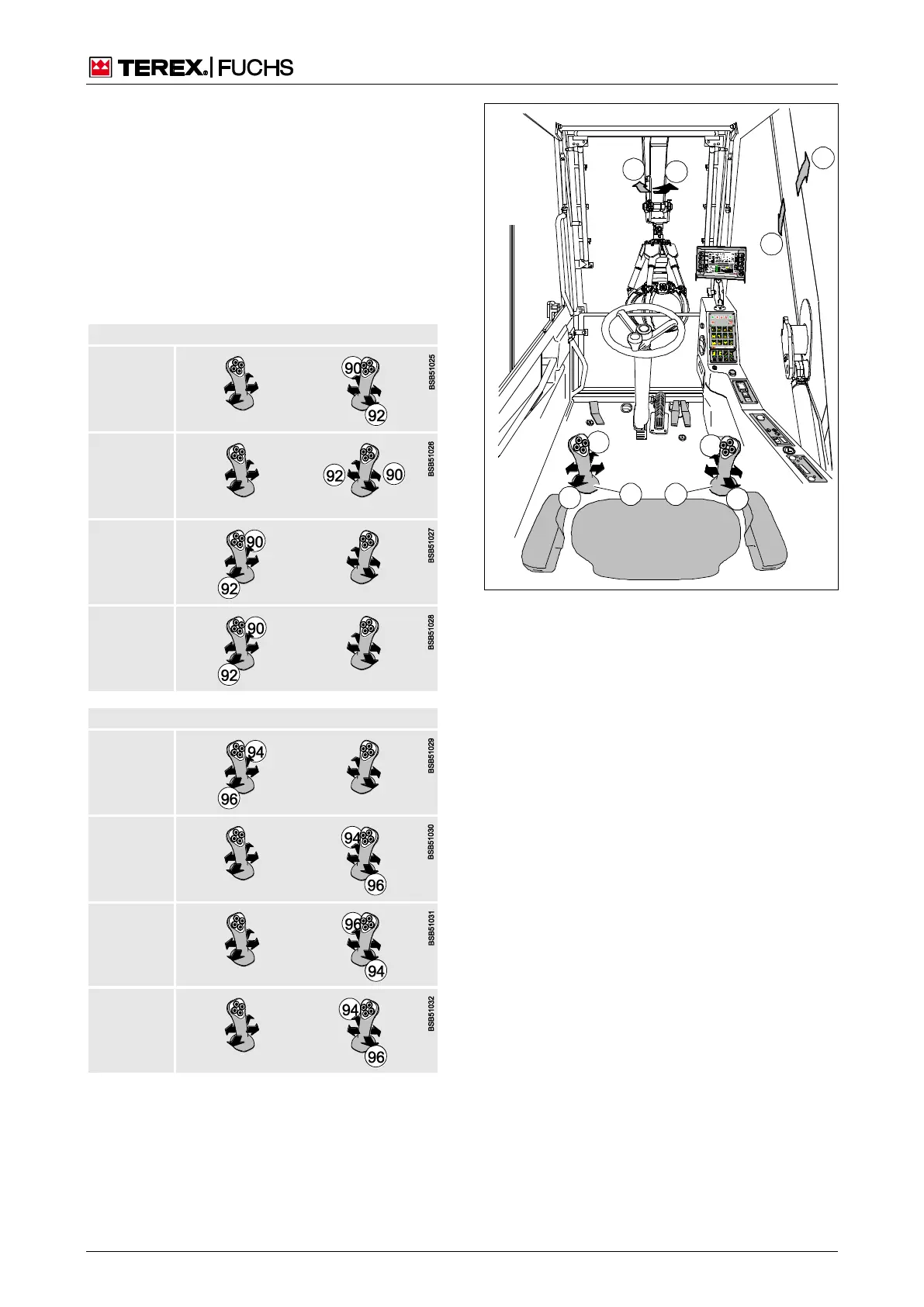

Fig. 161 Assignment with ISO control system
92 Beam up
90 Beam down
96 Retract dipperstick
94 Extend dipperstick
