Terex MHL360 E - Disabling Travel and Work Functions

5 OPERATION
5.68 MHL360 E
5.19.10 Disabling travel and work functions
If the left armrest is folded up or the mainte-
nance ladder is not closed or the button toggle
(197/64) is activated, the work functions are
disabled. The indicators (196/22) and (197/64)
display the status.
(197/64)
(196/22)
Travel and work functions
B SB507 59
B SB507 65
Enabled
B SB507 58
B SB508 79
Disabled
Text message "WORKING
HYDRAULICS DISABLED"
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50659
22
34
33

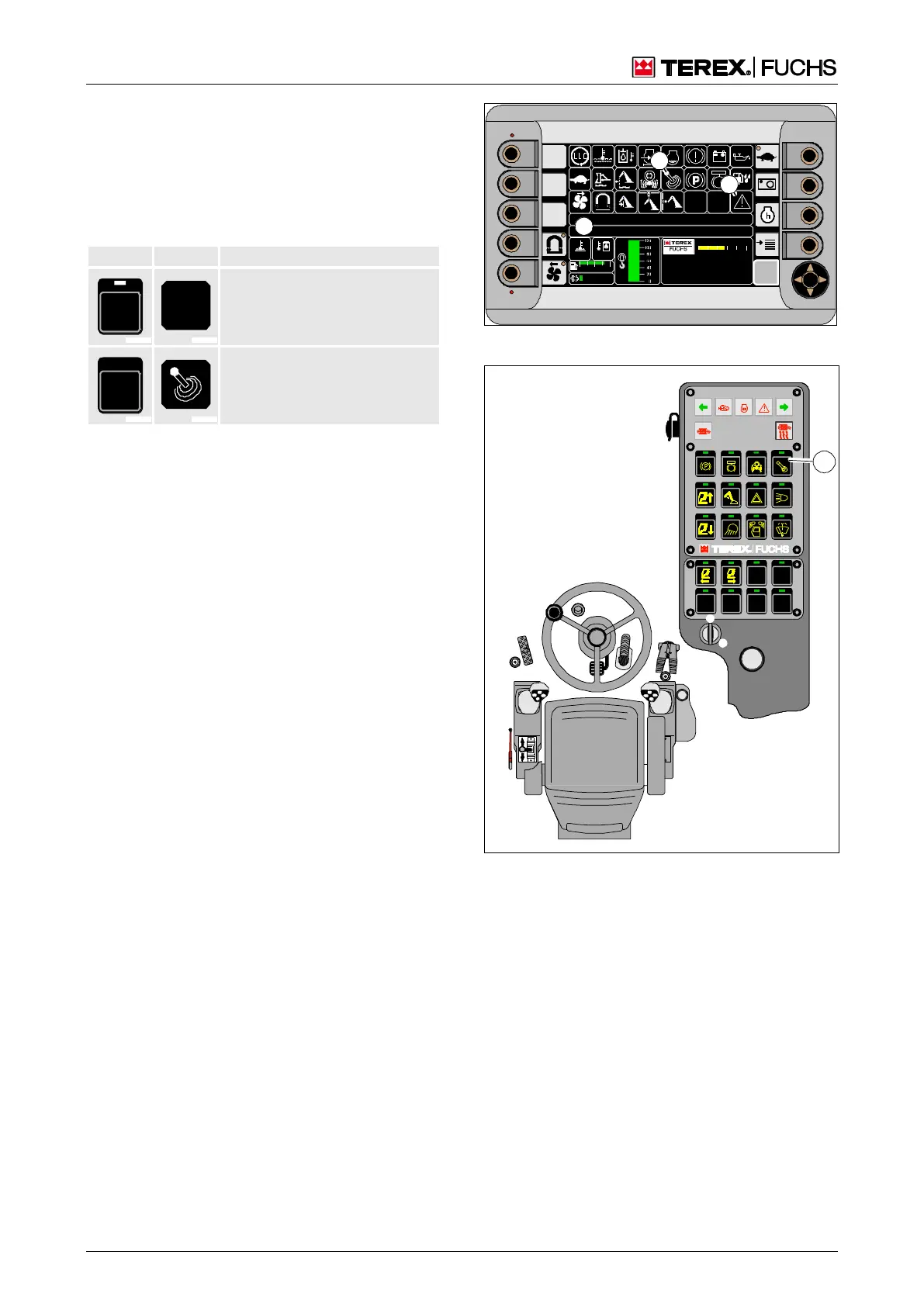

Fig. 196 Disabling travel and work functions
I
0
BSB50660
64
Fig. 197 Disabling travel and work functions
5.19.10
