3 TECHNICAL DATA
3.4 MHL360 E

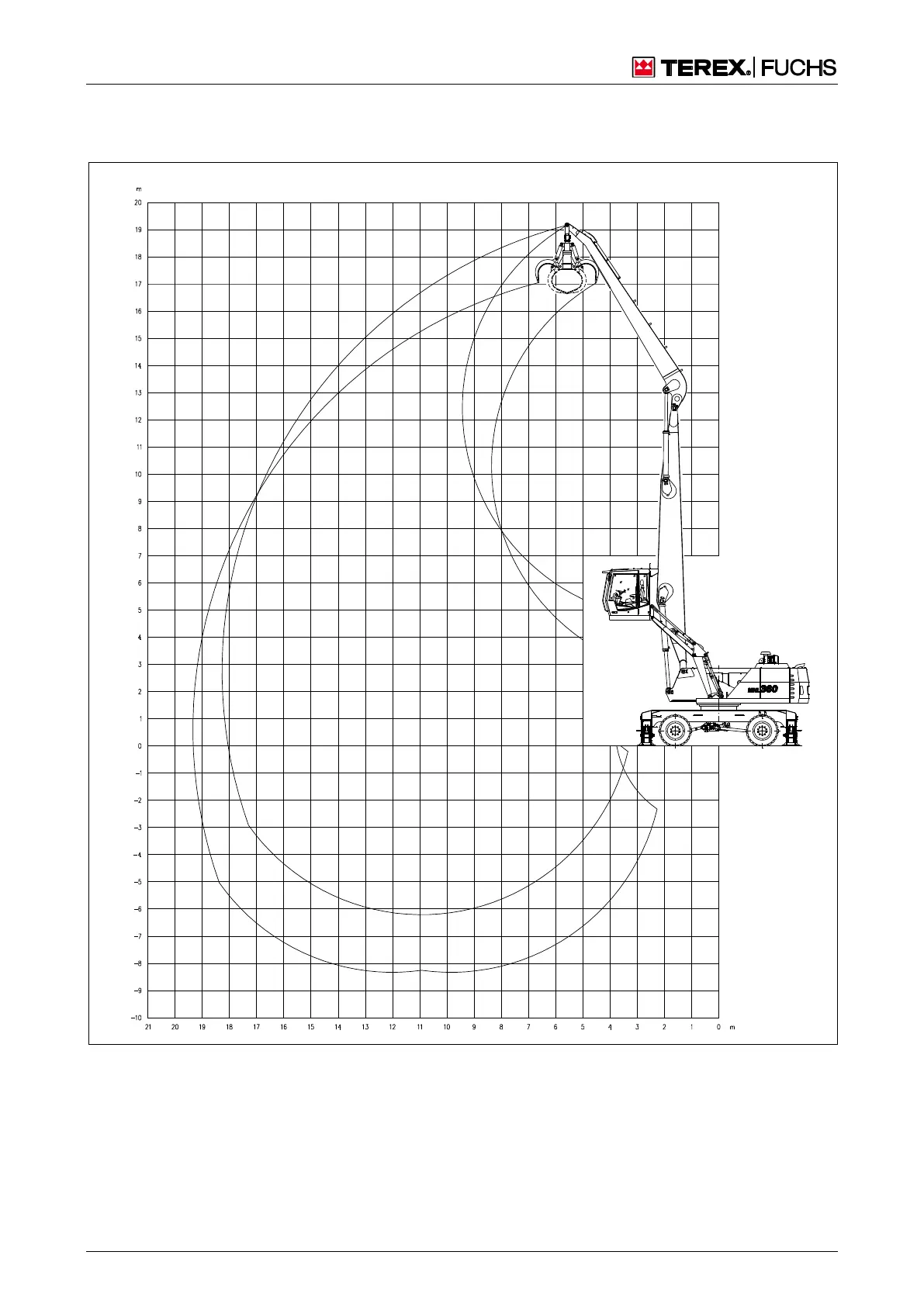

3.2.3 Working range diagram (18 m loading equipment)
Loading equipment: boom 9.7 m, dipperstick 7.8 m and cactus grab
360-0560-511360-18 m
Fig. 10 Working range diagram (18 m loading equipment)
