DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.9
4.2.4 O&K control system
 Current machine control unit (if yes, please tick)

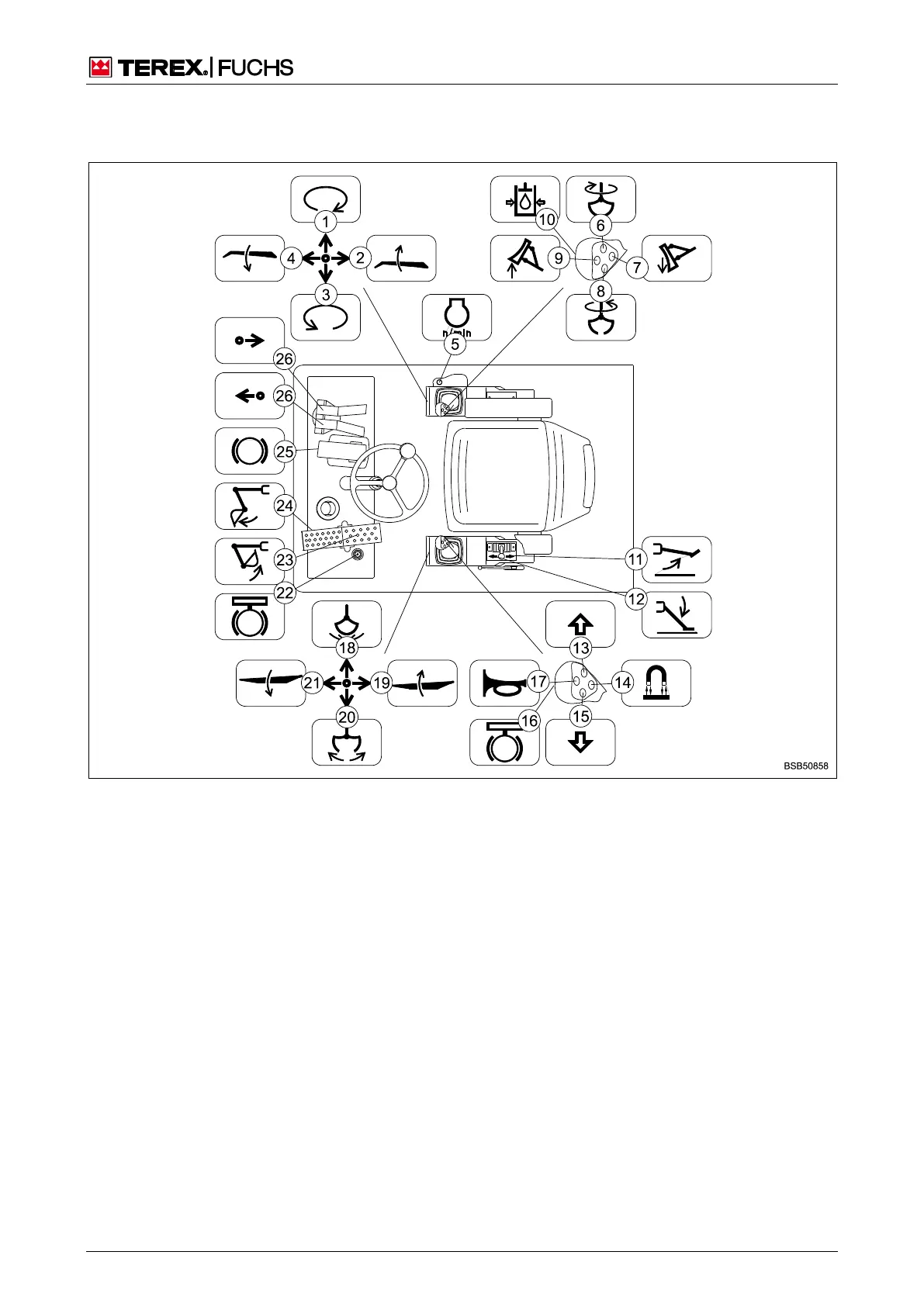

Fig. 25 Assignment with O&K control system
1 Swing uppercarriage clockwise
2
Extend dipperstick
3
Swing uppercarriage counterclockwise
4
Retract dipperstick
5
Engine Speed
6
Swing grab clockwise
7
Extend dozer blade
1)
8
Swing grab counterclockwise
9
Retract dozer blade
1)
1
0 Increasing the operating pressure
1
1 Retract the outrigger
1
2 Extend the outrigger
1
3 Indicate right
14 Switch magnetizing on/off
1)
1
5 Indicate left
1
6 Swing brake
1
7 Horn
1
8 Close grab
1
9 Beam up
2
0 Open grab
2
1 Beam down
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
1)
Optional
