Terex MHL360 E - Fuchs Control System

4 DISPLAY AND CONTROL ELEMENTS
4.8 MHL360 E
4.2.3 Fuchs control system
 Current machine control unit (if yes, please tick)

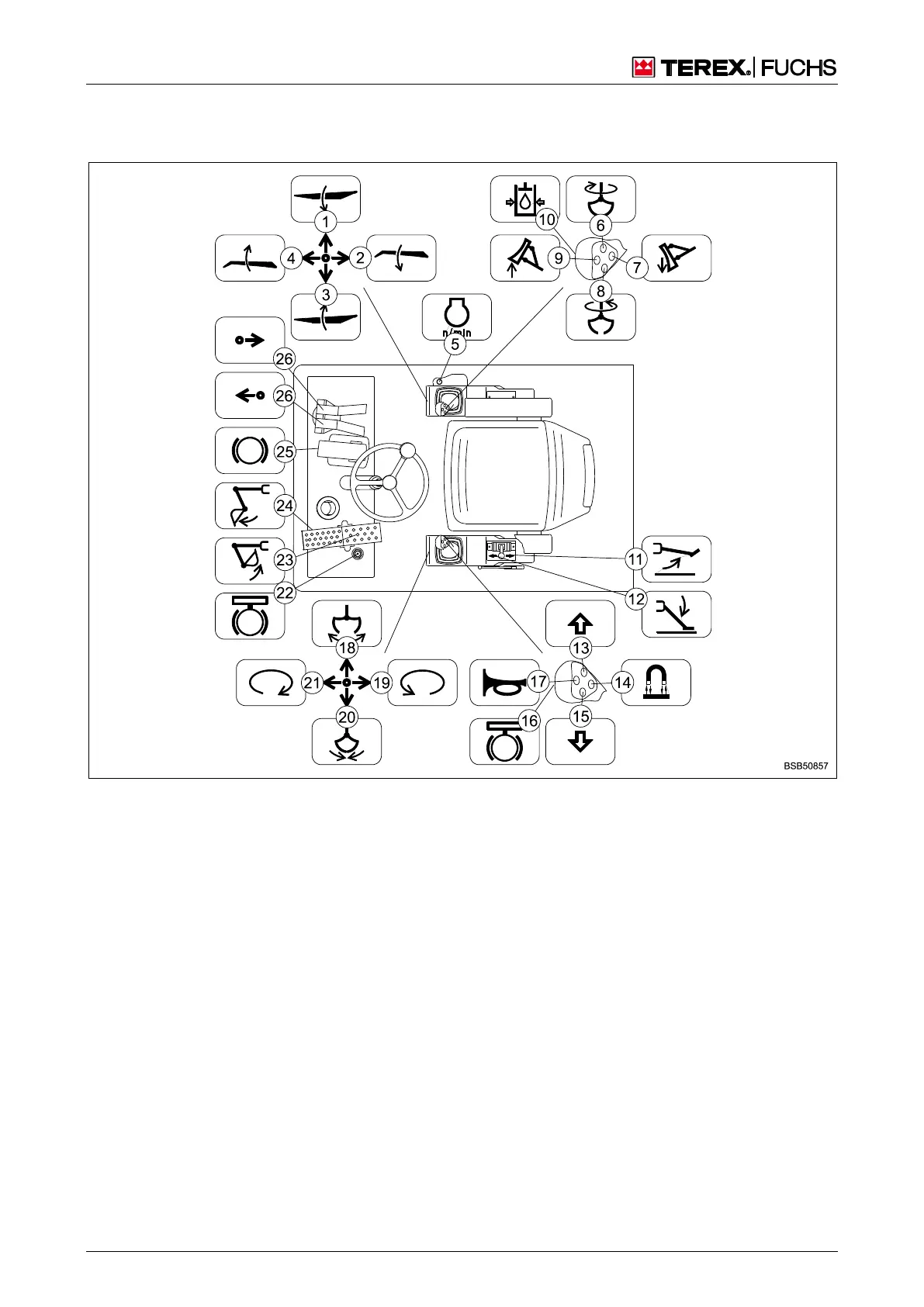

Fig. 24 Assignment with Fuchs control system
1 Lower boom
2
Retract dipperstick
3
Raise boom
4
Extend dipperstick
5
Engine speed
6
Clockwise grab rotation
7
Extend dozer blade
1)
8
Counter-clockwise grab rotation
9
Retract dozer blade
1)
1
0 Increase the operating pressure
1
1 Retract outrigger
1
2 Extend outrigger
1
3 Right indicator
14 Switch magnetization on/off
1)
1
5 Left indicator
1
6 Swing brake
1
7 Horn
1
8 Open grab
1
9 Rotate uppercarriage counter-clockwise
2
0 Close grab
2
1 Swing uppercarriage clockwise
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
1)
Optional
