5.16.5 Operating the grab
ATTENTION
- Do not press, knock or beat with
the grab.
- Watch the hoses when lowering
the grab into a shaft.
The assignment of the four-way control levers
differs according to the control unit. Fig. 165
shows the ISO control unit.
►
The diesel engine is running, the left arm-
rest is flipped down.
Turning
►
On the right four-way control lever
(165/13), press and hold the button toggle
for the direction of rotation in question
(165/45 or 47) until the desired position is
reached.
Opening and closing
►
Move the four-way control lever in the de-
sired direction. The farther it is swung, the
faster the grab tines move.
►
If the load is securely gripped, release the
four-way control lever if possible.
Opening and closing

ISO

Fuchs
 O&K

Liebherr
BSB50961BSB50955BSB50961BSB50962
47
45
93
13
9193
45
47
91

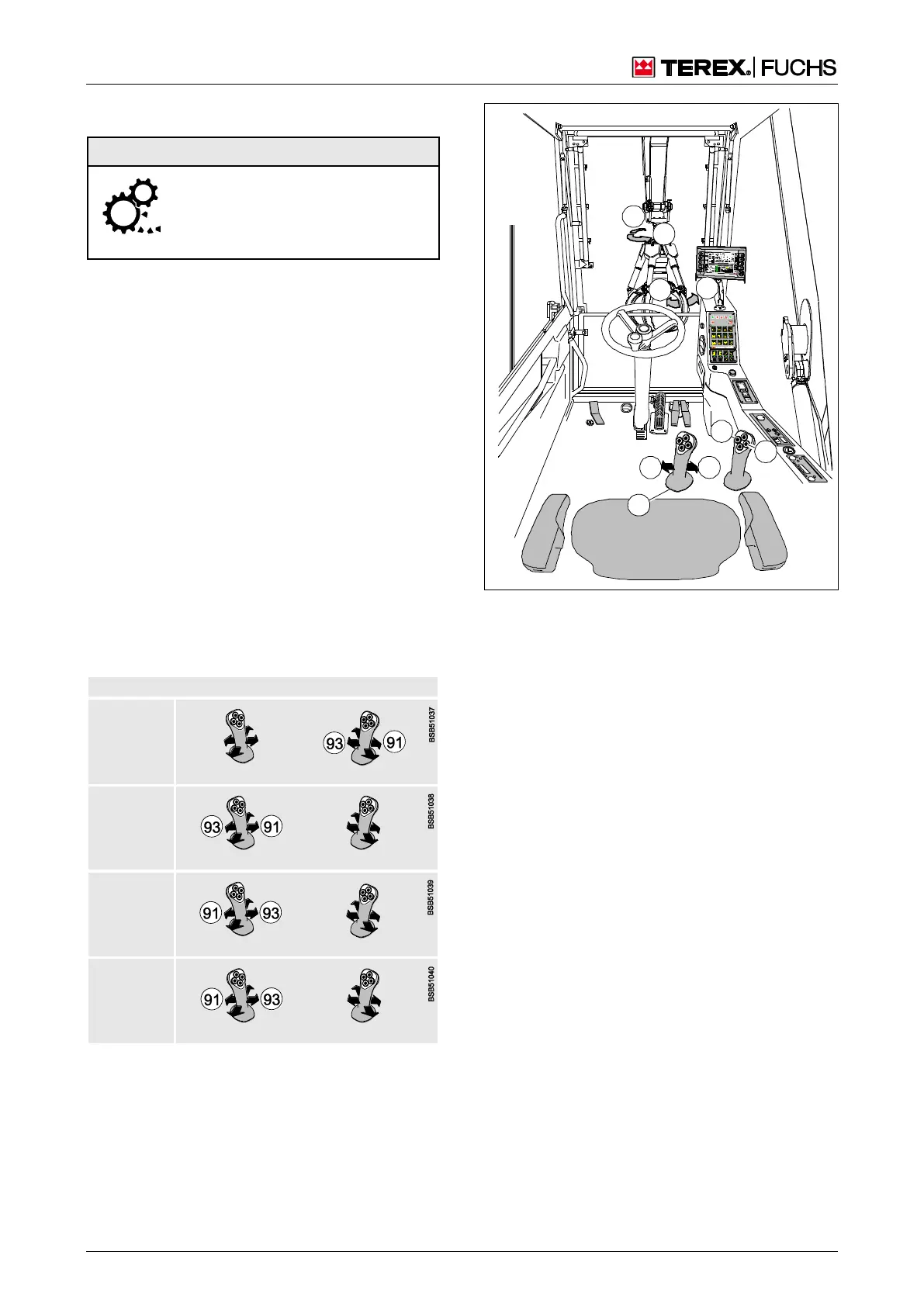

Fig. 165 Assignment with ISO control system
91 Open grab
93 Close grab
47 Swing grab clockwise
45 Swing grab counterclockwise
