Terex MHL360 E - Hydraulic Oil Filter (Main and Auxiliary Circuits)

OPERATION 5
MHL360 E 5.89
5.21.10 Hydraulic oil filter (main and auxil-
iary circuits)
Main circuits
Flow
Actions
Too low
Start of the warning levels (above
hydraulic oil temperature of 15°C)
Indicator (229/13) and message
(229/34): "FILTER NAME"
"CONTAMINATION"
Even lower
Reduced working speed (FINE
MODE)
Even lower
Indicator (229/13) and message
(229/34): "WORK HYDRAULICS"
"DISABLED"
Disable the travel and work func-
tions
Sufficient Warning levels are reset
Optical warning cancelled again
Travel and work functions ena-
bled again
Bypass flow filters
Flow
Actions
Too low Start of the warning levels (above
hydraulic oil temperature of 15°C)
Indicator (229/13) and message
(229/34): "FILTER NAME"
"CONTAMINATION"
Sufficient
Warning levels are reset
Optical warning cancelled again
Measures to be taken when a warning oc-
curs
h The machine can continue to be operated
for a short time.
►
Perform an oil filter change as quickly as
possible.
F
09 :43 11 .03. 2 011
MH LX X X / XXX X
18 00 U PM
0 5 1 0 15 20 2 5
95°C 7 5°C
0 ½ 1
9 %
120 0
BSB50648
13
34
33

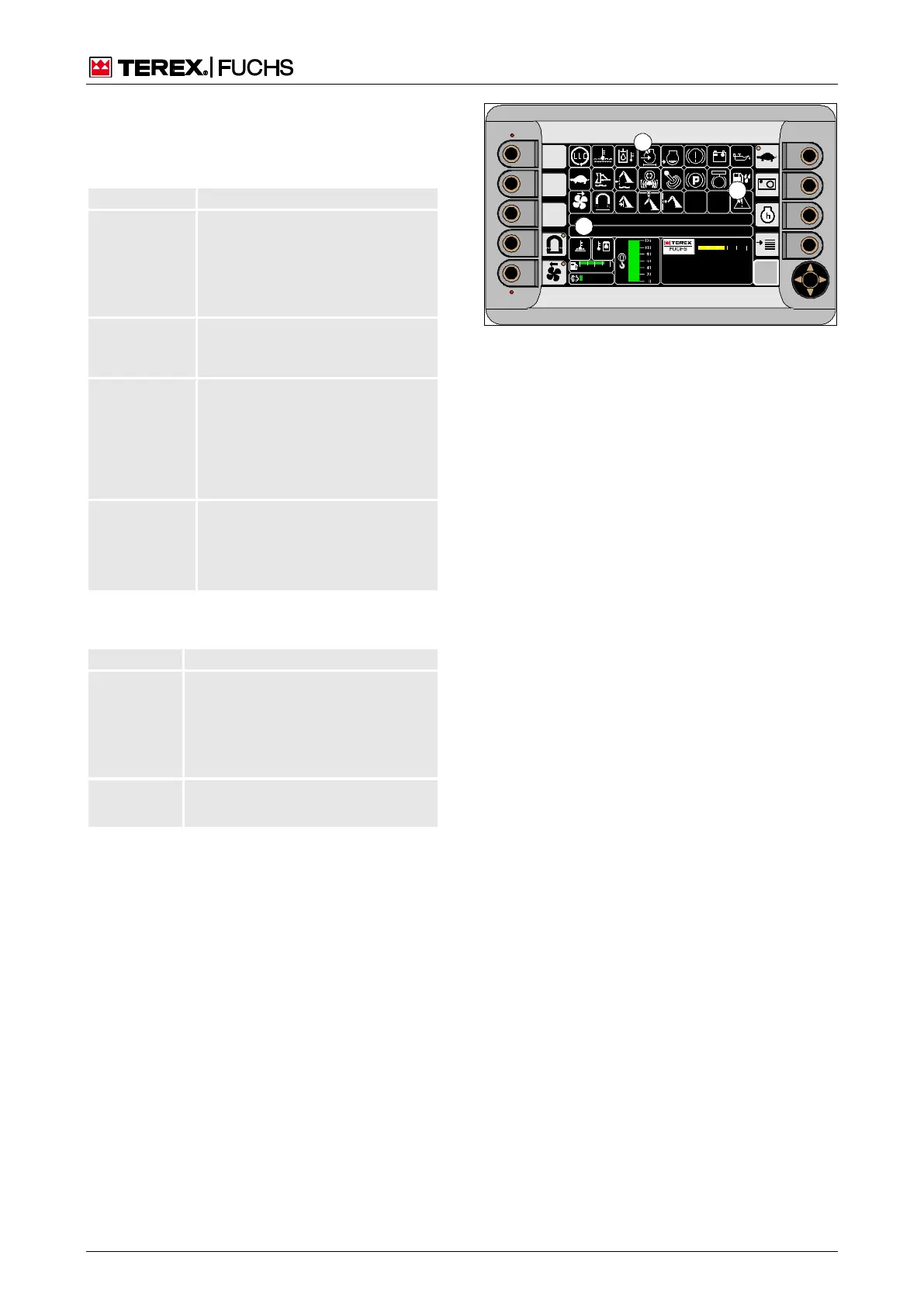

Fig. 229 Monitoring the hydraulic oil filter
13 Indicator for contamination in the return filter or
pressurized oil filter
33 Note text message indicator
34 Text message for the indicators
