Terex MHL360 E - Working Range of the Machine

3 TECHNICAL DATA
3.2 MHL360 E
3.2 n Working range of the machine
3.2.1 Working range diagram (16.5 m loading equipment)
Loading equipment: boom 8.9 m, dipperstick 7.0 m and cactus grab
360-0560-510360-16,5 m

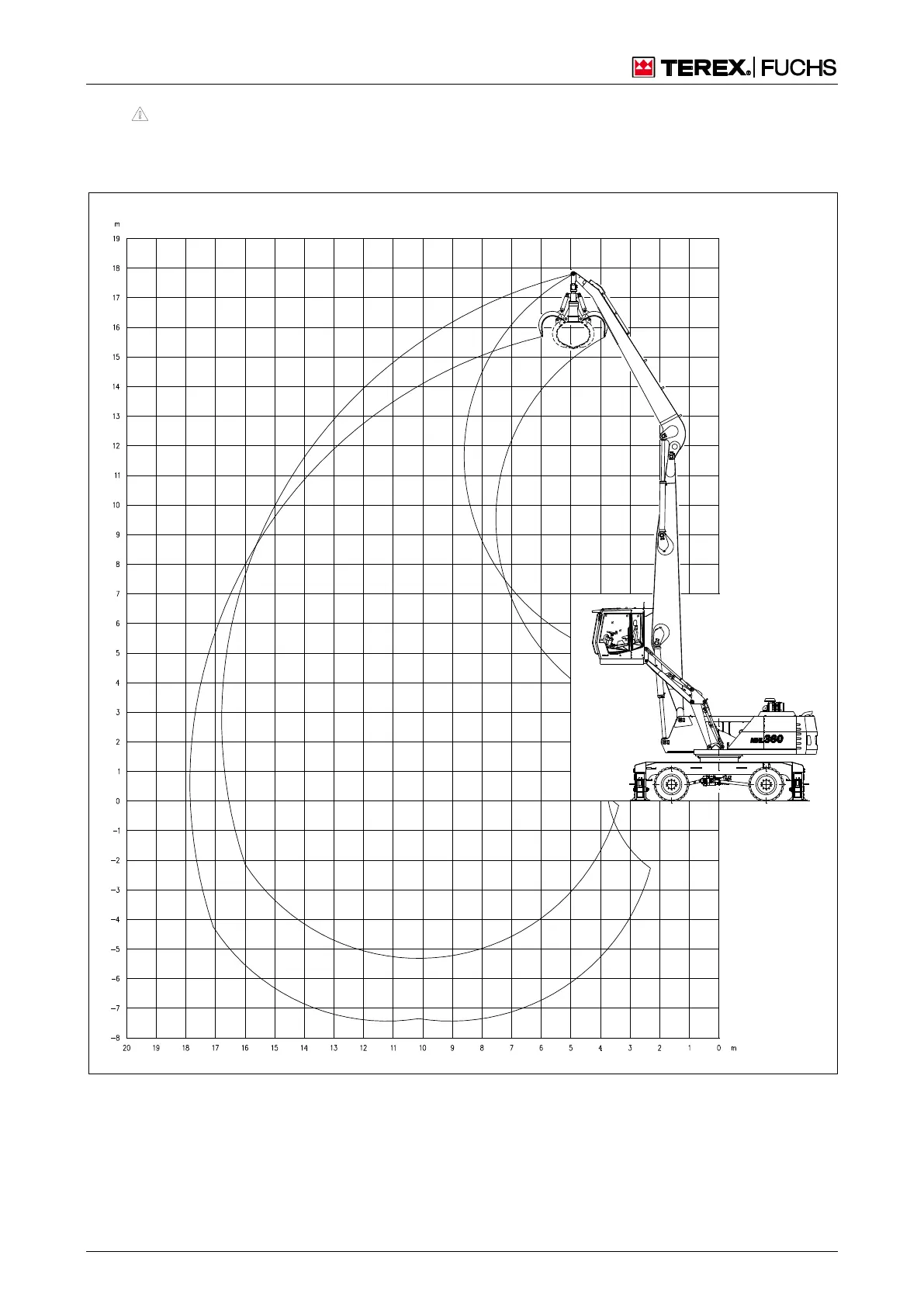

Fig. 8 Working range diagram (16.5 m loading equipment)
3.2
n
Workin
g range
of the
machin
e
