Terex MHL360 E - O&K Control System: Steering with a Four-Way Control Lever (Optional)

DISPLAY AND CONTROL ELEMENTS 4
MHL360 E 4.13
4.2.8 O&K control system: Steering with a four-way control lever (optional)
 Current machine control unit (if yes, please tick)

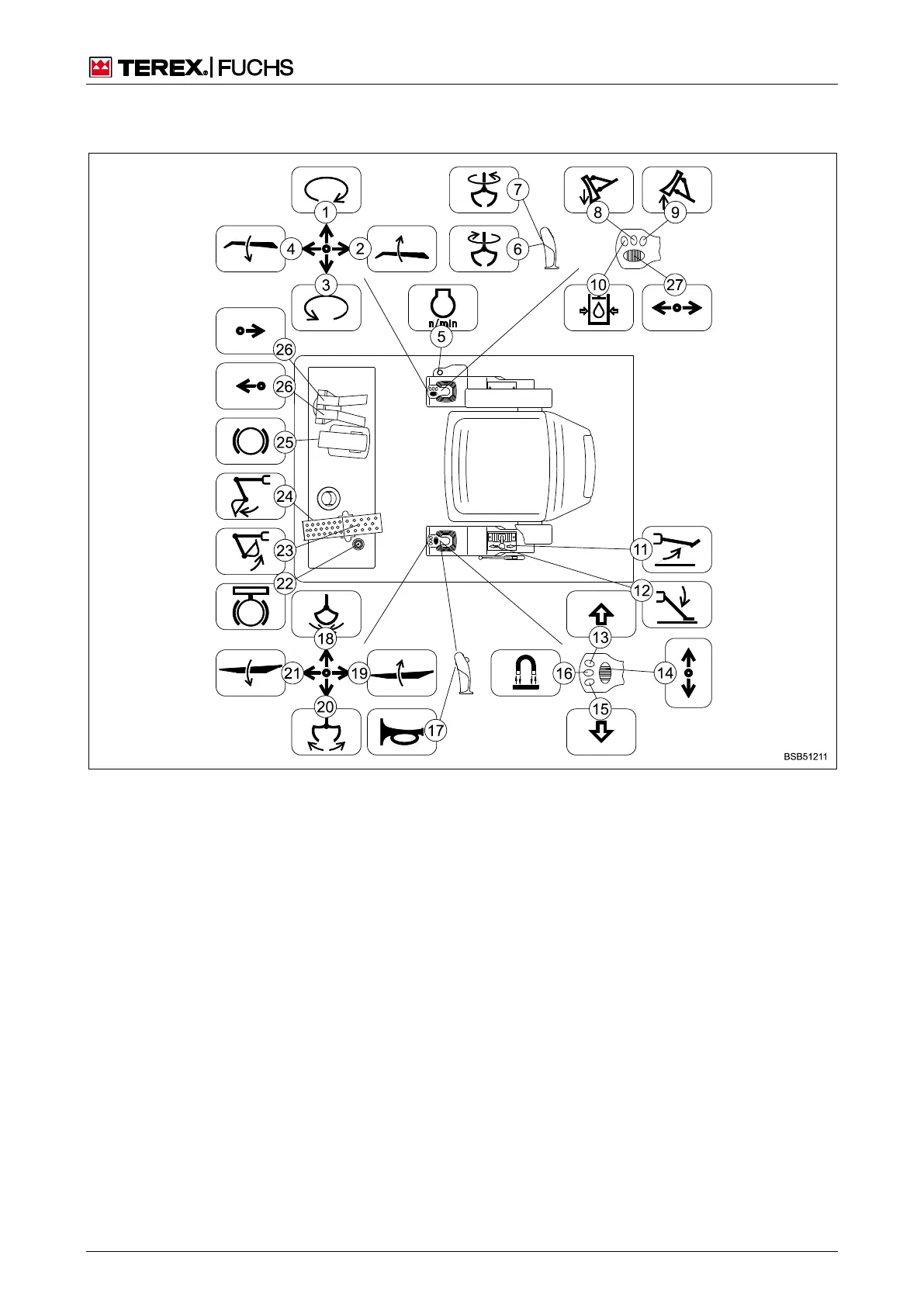

Fig. 29 Assignment with O&K control system: Steering with a four-way control lever (optional)
1 Swing uppercarriage clockwise
2
Extend dipperstick
3
Swing uppercarriage counterclockwise
4
Retract dipperstick
5
Engine Speed
6
Swing grab clockwise
7
Swing grab counterclockwise
8
Extend dozer blade
1)
9
Retract dozer blade
1)
1
0 Increasing the operating pressure
1
1 Retract the outrigger
1
2 Extend the outrigger
1
3 Indicate right
14 Steering
1
5 Indicate left
1
6 Switch magnetizing on/off
1)
1
7 Horn
1
8 Close grab
1
9 Beam up
2
0 Open grab
2
1 Beam down
2
2 Swing brake foot switch
1)
2
3 Extend tilting cylinder
1)
2
4 Retract tilting cylinder
1)
2
5 Service brake
2
6 Forwards/reverse travel
2
7 Forwards/reverse travel
1)
1)
Optional
