Chapter 7: PC SOFTWARE OFFLINE SETTINGS
8. SYSTEM SETTING MODE
7-35
8.2. Initial Volume Settings

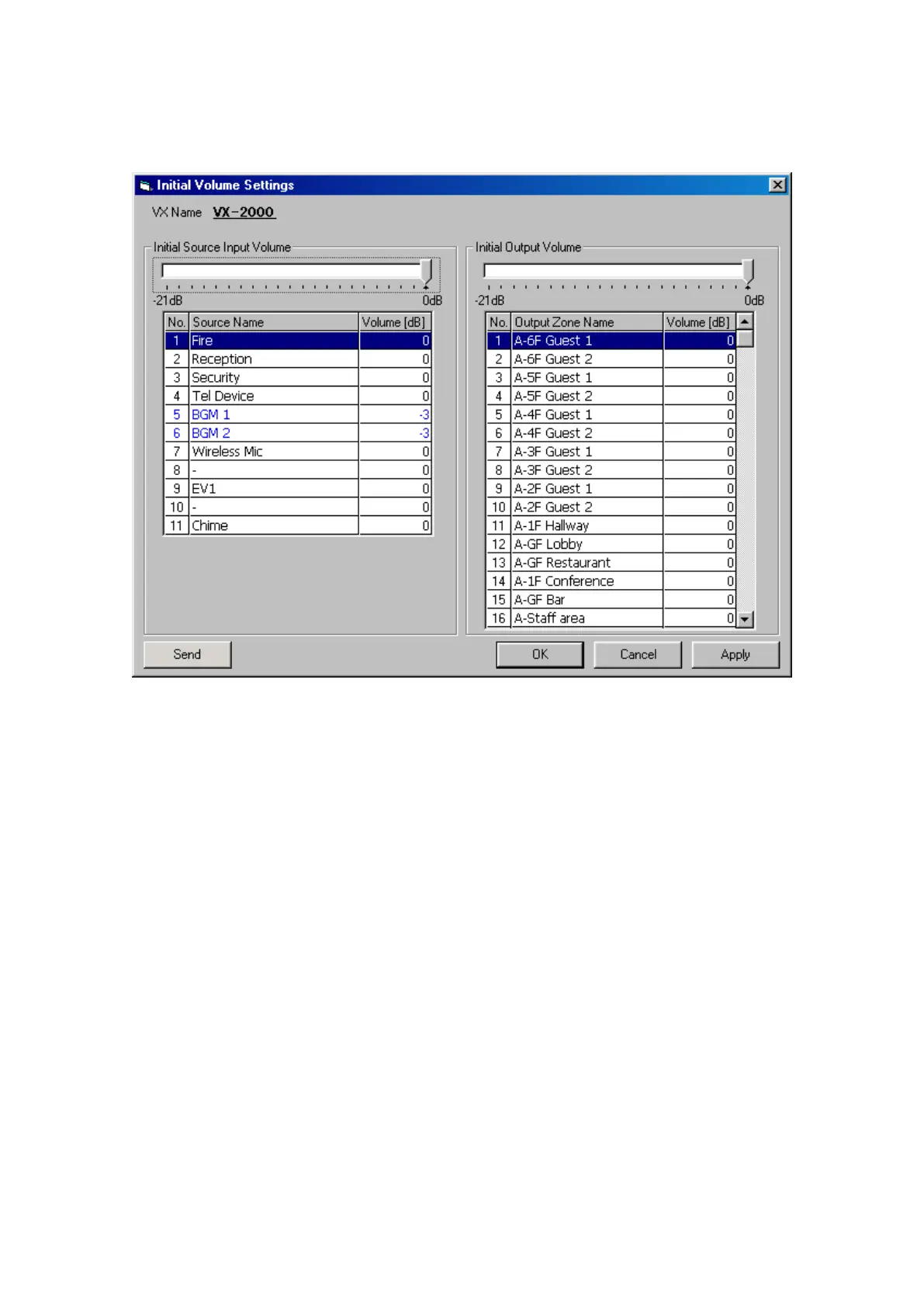

Clicking on the [Initial Volume] button on the Configuration screen displays the [Initial Volume Settings] window.
8.2.1. Initial source input volume settings
The initial sound volume can be set for all sound source modules.
Source component names are displayed on the left side of the window.
Step 1. Click on the name of the component for which the initial volume is to be set.
The selected line will be highlighted.
Step 2. Drag the top volume control knob with the mouse to set the initial volume.
The sound volume can be set for 0 to –21 dB in 1 dB step.
This setting can also be performed by directly entering a numerical value in the volume cell.
To Next Page
