Chapter 9: CONNECTIONS
7. CABLE DISTANCE BETWEEN COMPONENTS
9-35
7. CABLE DISTANCE BETWEEN COMPONENTS
7.1. VX-2000 to Remote Microphone Cable Distance
The cable distance between Remote Microphones (RM-200X or RM-200XF) is determined by the specifications
of the LONWORKS' Twisted Pair Free Topology Network (assuming Cat. 5 STP cable is used).

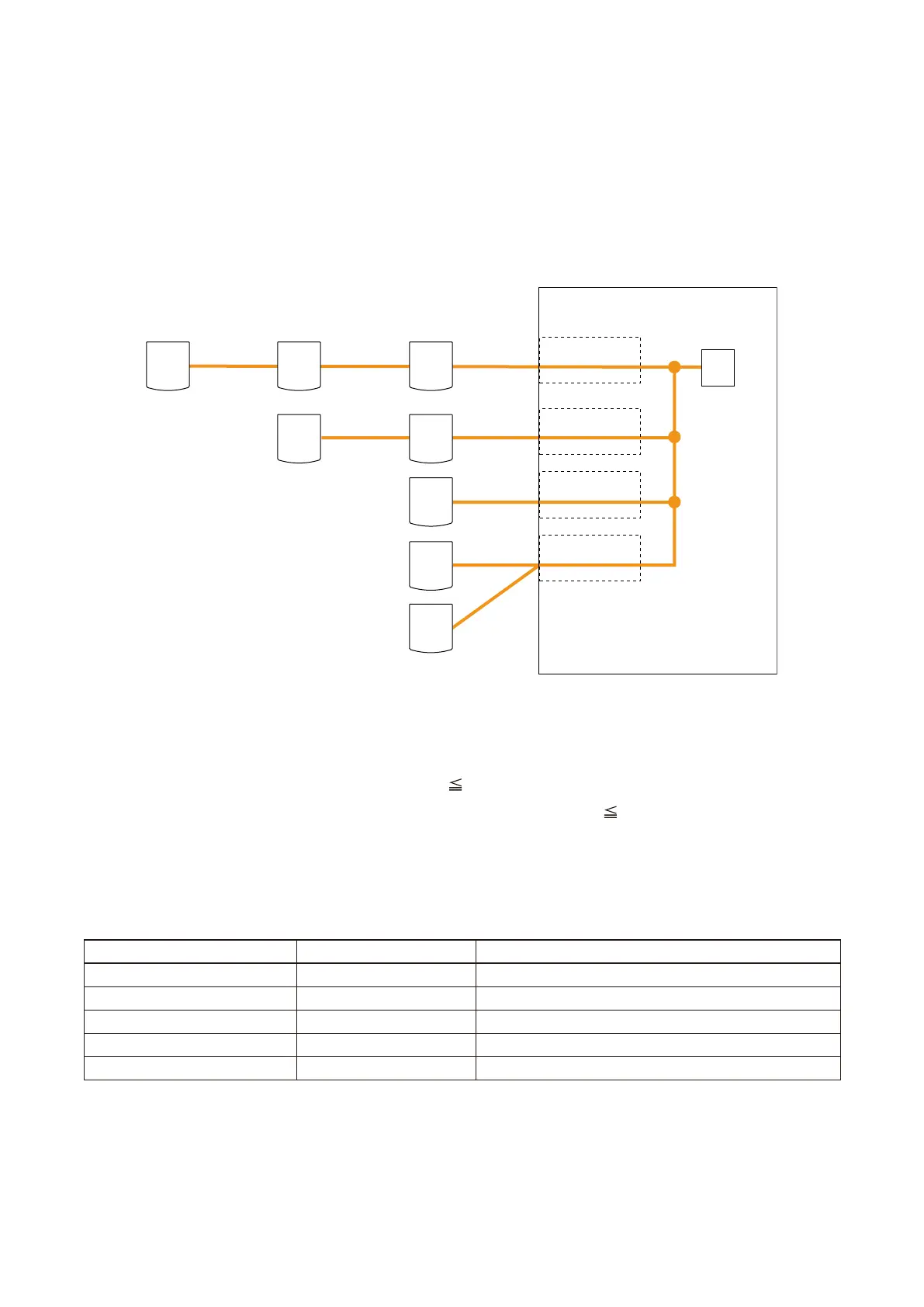

[Connection example and total cable distance]
VX-2000
VX-200XR
VX-200XR
VX-200XR
VX-200XR
RM
RM
RM
RM
RM
RM
RM
RM
abc
de
f
g
h
Transceiver
The maximum total cable length between all connected Remote Microphones and the VX-200XR is 450 m.
However, the maximum length between individual components within the system is 250 m.
a + b + c + d + e + f + g + h
450 m
(a, b, c, d, e, f, g, and h: Individual connections
250 m)
Tips
Cable distances can be increased by changing the cable type.
Cable Type Total Cable Distance Maximum Cable Distance Between Components
Belden 85102 500 m 500 m
Belden 8471 500 m 450 m
Level IV, 22AWG 500 m 400 m
JY (St) Y 2 x 2 x 0.8 500 m 320 m
Cat. 5 STP 450 m 250 m
