Chapter 9: CONNECTIONS
6. CONNECTION CABLE PIN ASSIGNMENT
9-22
6.3. VX-200XI Connections
RJ45 connector
Pin No.
To VX-200XI
1
2
5
6
3
4
7
8
Control input (+)
Control input (–)
NC
Audio out (C)
Audio out (H)
NC
NC
NC
ex. PM-660U
Control
Audio
ON
OFF OFF
Over 200 ms Broadcasting
VX-200XI Control Input
Electrical characteristics
Open voltage: 17 V DC
Short circuit current: Under 5 mA
Control switch

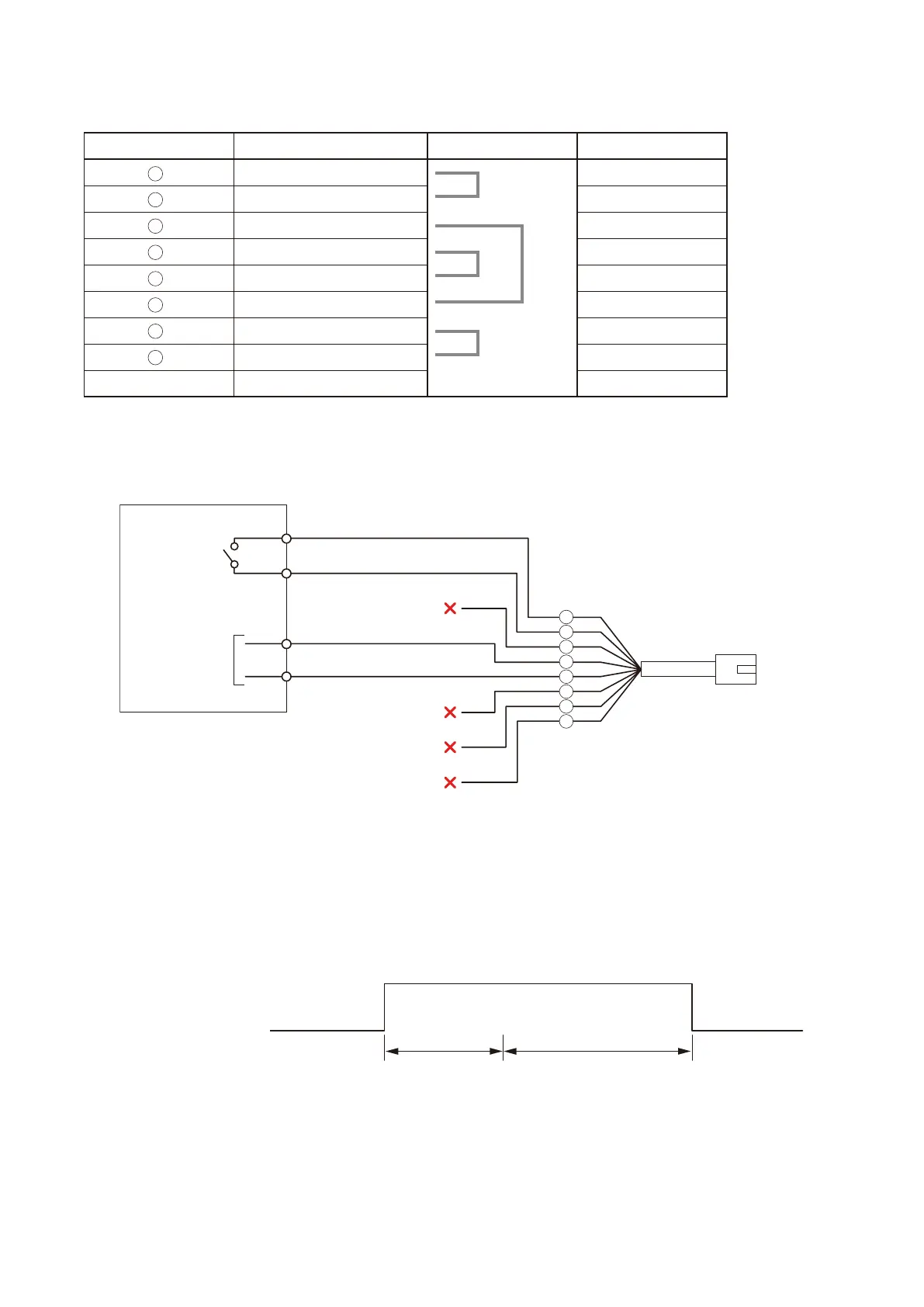

•Connectionexample
RJ45 Pin No. Colour Pair Assignment
Orange / white Control input (+)
Orange Control input (–)
Green / white NC
Blue AUDIO OUT (C)
Blue / white AUDIO OUT (H)
Green NC
Brown / white NC
Brown NC
Shield Shield NC
1
2
3
4
5
6
7
8
