3. GENERAL-PURPOSE BROADCAST
5-19
3. GENERAL-PURPOSE BROADCAST
Basic operations and indications related to the general-purpose broadcast mode are explained here based on
the settings of the Remote Microphone RM-200X installed at the GF reception desk.
In this example, the RM-200X is set for general-purpose broadcast type.
[GF reception desk Remote Microphones settings]

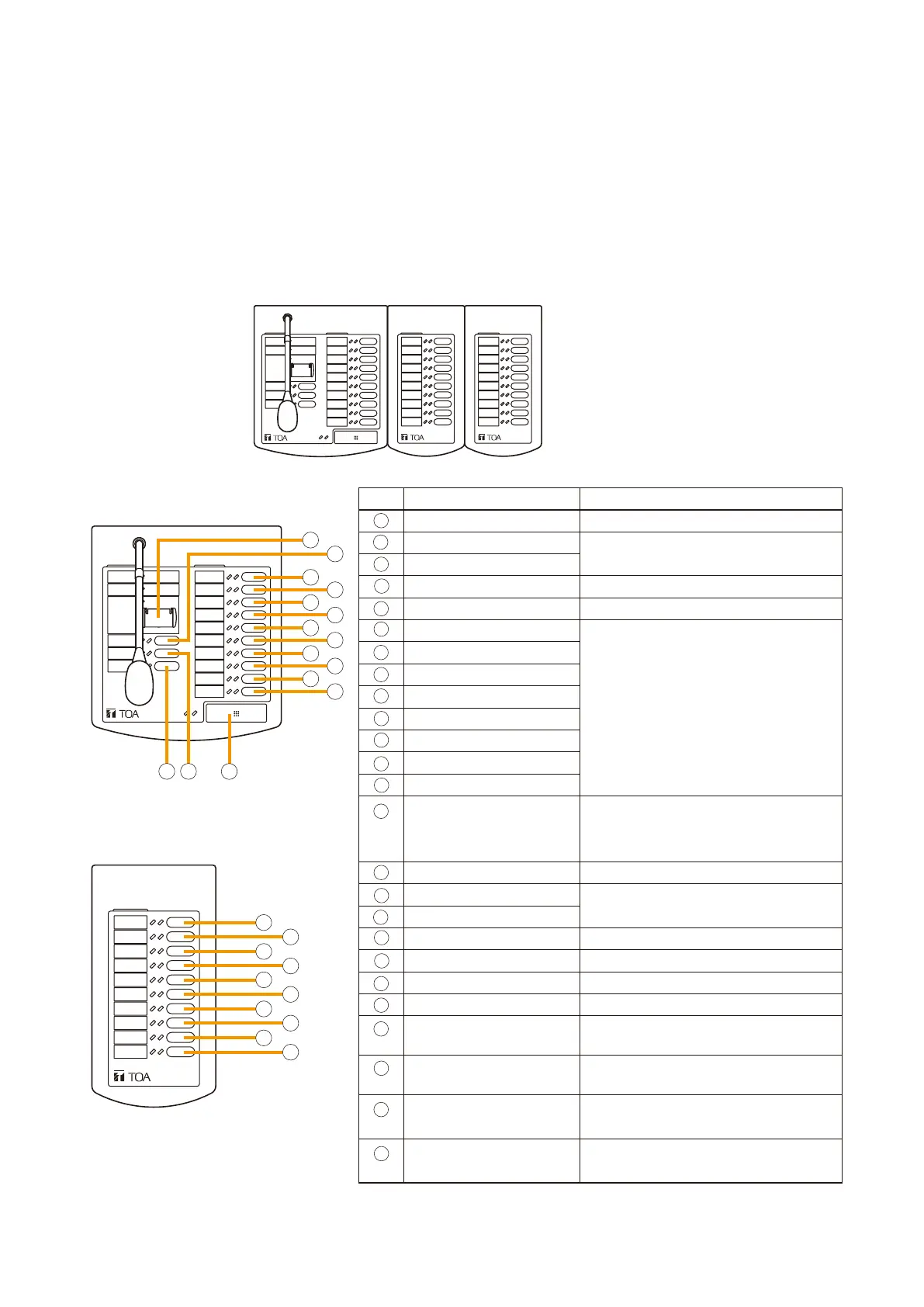

A set of the RM-200X and 2 RM-210 units is installed at the GF reception desk.
Their function key settings are as follows:
RM-210 RM-210
REMOTE MICROPHONE
RM-200X
(1) (2)
Remote Microphone
RM-200X
Remote Microphone Extension RM-210
REMOTE MICROPHONE
RM-200X
RM-210
RM-200X
RM-210 (1)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
21
22
23
24
25
16
18
19
17
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Key Setting Function
None No function assigned
EV Message 1
Recalls individual EV messages.
EV Message 2
All-Zone Call Pre-selects all zones.
Talk with 2 Tone Chime Makes microphone announcements.
3F Guest rooms
Pre-selects individual zones.
2F Guest rooms
1F Conference room
1F Hallway
GF Restaurant
GF Lobby
Stairs / corridor
Staff area
Public zones Pre-selects a zone group of 1F
Hallway, GF Restaurant, GF
Lobby,and Stairs/corridor.
No BGM Stops BGM broadcast.
BGM Pattern 1
Recalls individual base patterns.
BGM Pattern 2
BGM 1 Volume Up Increases BGM-1 input level.
BGM 1 Volume Down Decreases BGM-1 input level.
BGM 2 Volume Up Increases BGM-2 input level.
BGM 2 Volume Down Decreases BGM-2 input level.
1F Conference
room Volume Up
Increases 1F conference room zone
output level.
1F Conference
room Volume Down
Decreases 1F conference room zone
output level.
1F Hallway
Volume Up
Increases 1F hallway zone output
level.
1F Hallway
Volume Down
Decreases 1F hallway zone output
level.
