Toa VX-2000SF - VX-200 Xr to Remote Microphone Cable Distance Extension; Mount the Repeater on the VX-200 Xr and Set the Free Topology

Chapter 9: CONNECTIONS
7. CABLE DISTANCE BETWEEN COMPONENTS
9-36

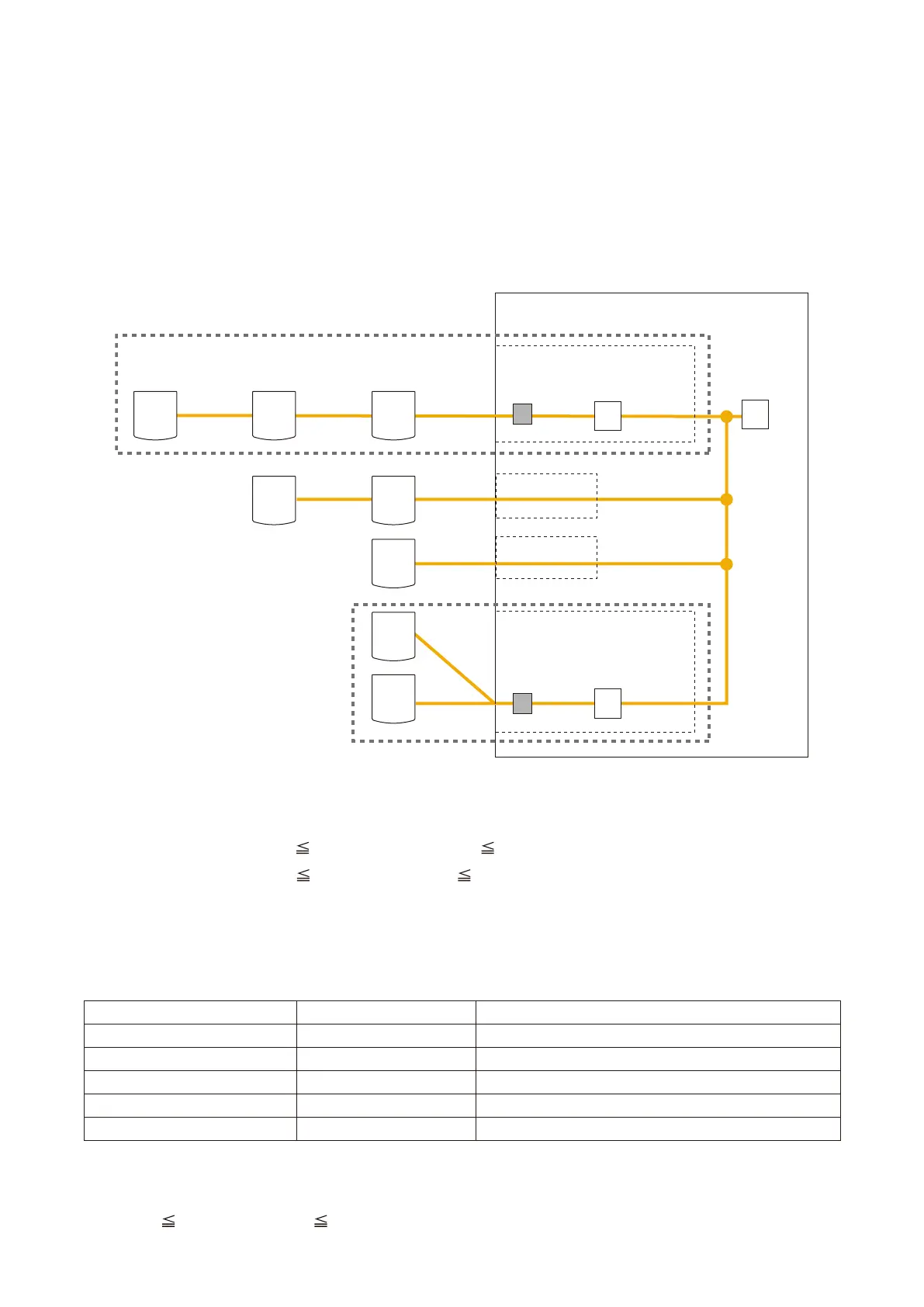

[Connection example and total cable distance]
VX-2000
VX-200XR with repeater
VX-200XR with repeater
VX-200XR
VX-200XR
RM
RM
RM
RM
RM
RM
RM
RM
abc
de
f
g
h
Transceiver
Repeater
Repeater
Termination
(50 Ω)
Termination
(50 Ω)
The total cable length between each repeater-mounted VX-200XR and its connected Remote Microphones can
be individually extended up to 450 m.
a + b + c
450 m (a, b, and c 250 m)
g + h
450 m (g and h 250 m)
Tips
• Inlocationswherethissettingwasperformed,thetotalcabledistancecanbefurtherincreasedbychanging
the cable type.
7.2. VX-200XR to Remote Microphone Cable Distance Extension
This setting permits the cable length between the repeater-mounted VX-200XR and its connected Remote
Microphones to be extended to up to 450 m (using Cat. 5 STP cable).
(Refer to
p. 9-37 for the setting procedure.)
7.2.1. Mount the Repeater on the VX-200XR and set the Free Topology
• AsfortheVX-200XRwithoutrepeater,thetotalcabledistanceisbasedonthesameideaastheprevious
section "9.1. VX-2000 to Remote Microphone Cable Distance."
The cable distance in the above example is expressed as follows when using Cat.5 STP cable for connection:
d + e + f
450 m (d, e, and f 250 m)
Cable Type Total Cable Distance Maximum Cable Distance Between Components
Belden 85102 500 m 500 m
Belden 8471 500 m 450 m
Level IV, 22AWG 500 m 400 m
JY (St) Y 2 x 2 x 0.8 500 m 320 m
Cat. 5 STP 450 m 250 m
