1. OPERATION OUTLINE
The VX-2000 system features 3 types of Activation Items: Remote Microphone function keys, control input
terminals, and internal timer.
The VX-2000 system makes broadcasts or performs operations by assigning various functions to these 3 types
of Activation Items. Patterns, in which broadcast inputs and outputs and signal routings are preprogrammed,
can be created and assigned to the Activation Items.
Other functions can also be set in addition to patterns. All settings are performed by way of the system's
dedicated PC software, and the system can be operated by downloading the prepared setting data to the VX-
2000.
REMOTE MICROPHONE
RM-200X
Function keys
VX-2000
Remote Microphone
Control Input
Internal Timer
VX-2000SF
VX-200SI
Control Input Module
•RemoteMicrophoneFunctionKeys
Besides broadcast and control pattern recall, such functions as Audio Monitor, broadcast zone selection,
and microphone announcement can be assigned to these keys. Assignment of the system failure indication
function makes it possible to indicate detected failures by way of the Remote Microphone buzzer and function
key LED indicator.
•ControlInput(VX-2000orVX-200SI)
In addition to broadcast and control pattern recall, monitor zone selection can be assigned to this input. It is
also possible to assign such functions as the lighting of RM, VX, and SF failure LEDs when failure data is
received from an external source, or correction of internal timer settings.
•InternalTimer
Broadcast and control patterns can be recalled at preset times.
Refer to
p. 4-3, "Preparing Patterns," for details regarding broadcast and control patterns, and to p. 4-6,
"Activation Items," for details regarding Activation Items.

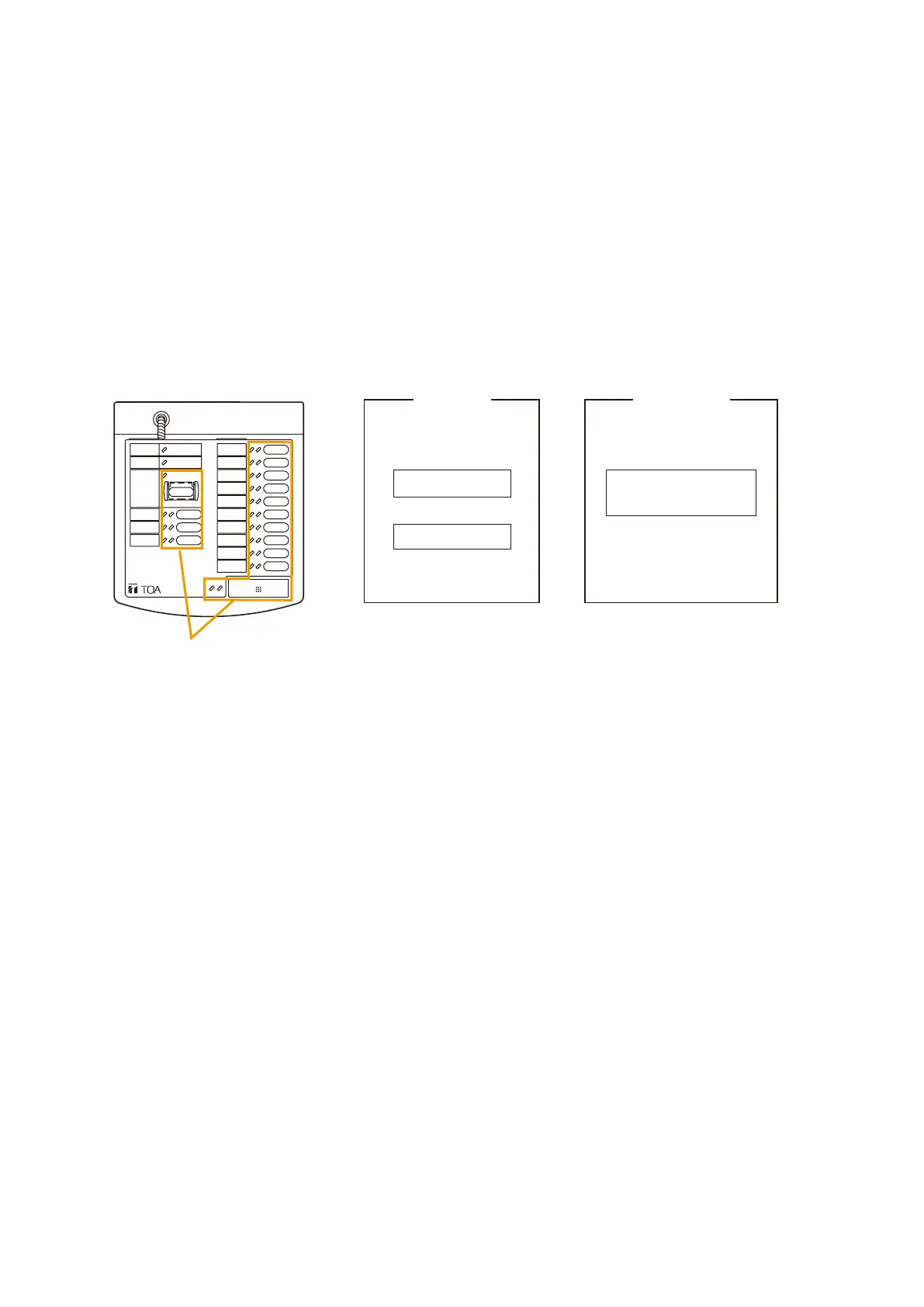

[VX-2000 System Activation Items]
