7. CABLE DISTANCE BETWEEN COMPONENTS
9-43
7.3. Cable Distance between the VX-2000 and VX-2000SF

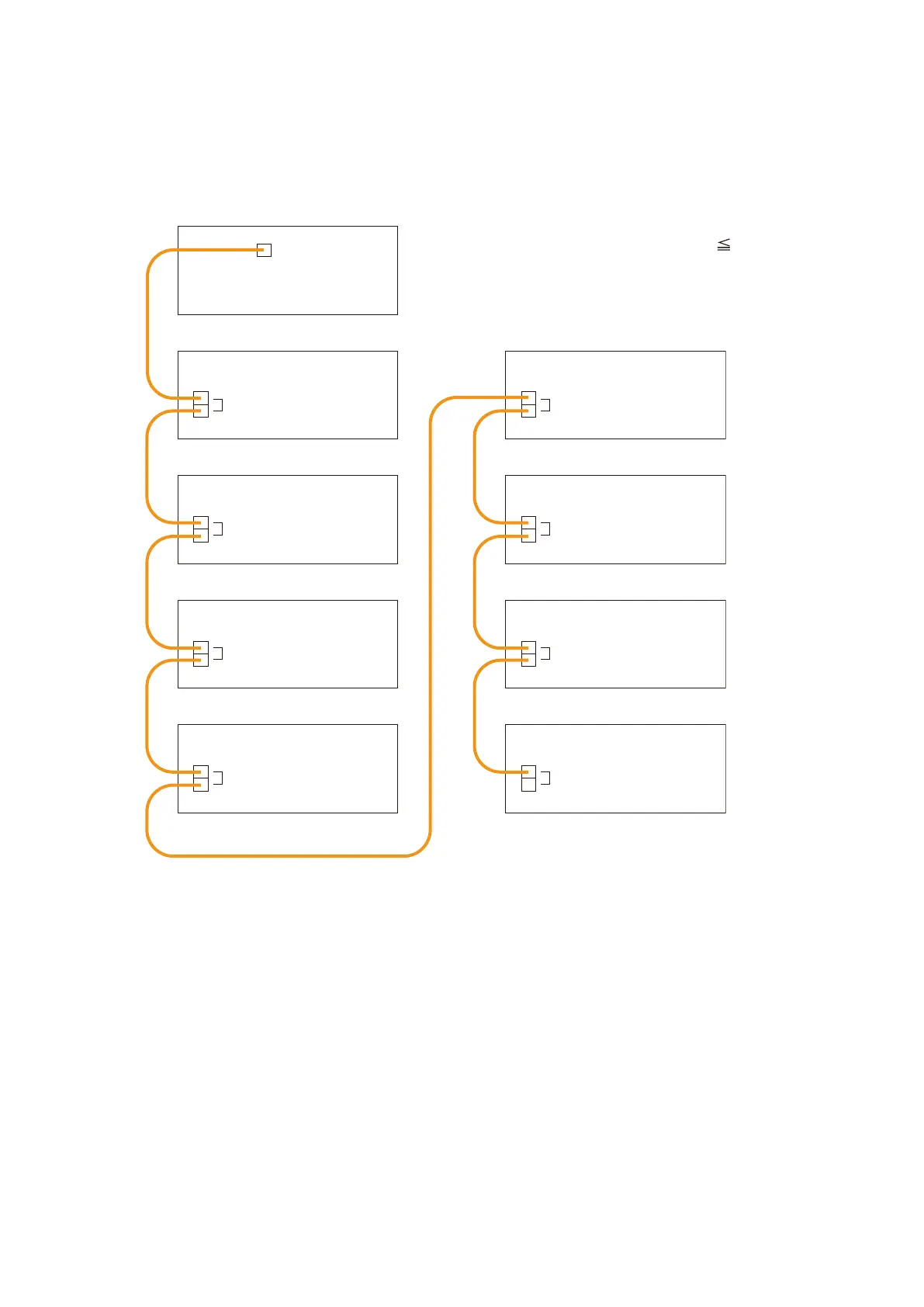

Cables connecting the VX-2000 data link connector to the VX-2000SF data link connector can be extended to
up to 800 m in total (using Cat. 5 STP cable).
DATA LINK
DATA LINK
DATA LINK
DATA LINK
DATA LINK
DATA LINK
DATA LINK
DATA LINK
DATA LINK
VX-2000
VX-2000SF No. 1
VX-2000SF No. 2
VX-2000SF No. 3
VX-2000SF No. 4
a
b
c
d
VX-2000SF No. 5
VX-2000SF No. 6
VX-2000SF No. 7
VX-2000SF No. 8
f
g
h
e
a + b + c + d + e + f + g + h
800 m
Note
Turn ON the terminator of the VX-2000SF connected last using the unit's front-mounted setting DIP switch.
For setting the terminator, refer to
p. 8-26.
