Chapter 2: PRODUCT DESCRIPTIONS
2. NOMENCLATURE AND FUNCTIONS
2-8
2.3. Remote Microphone Extension RM-210
EXTENSIO
N
RM-210

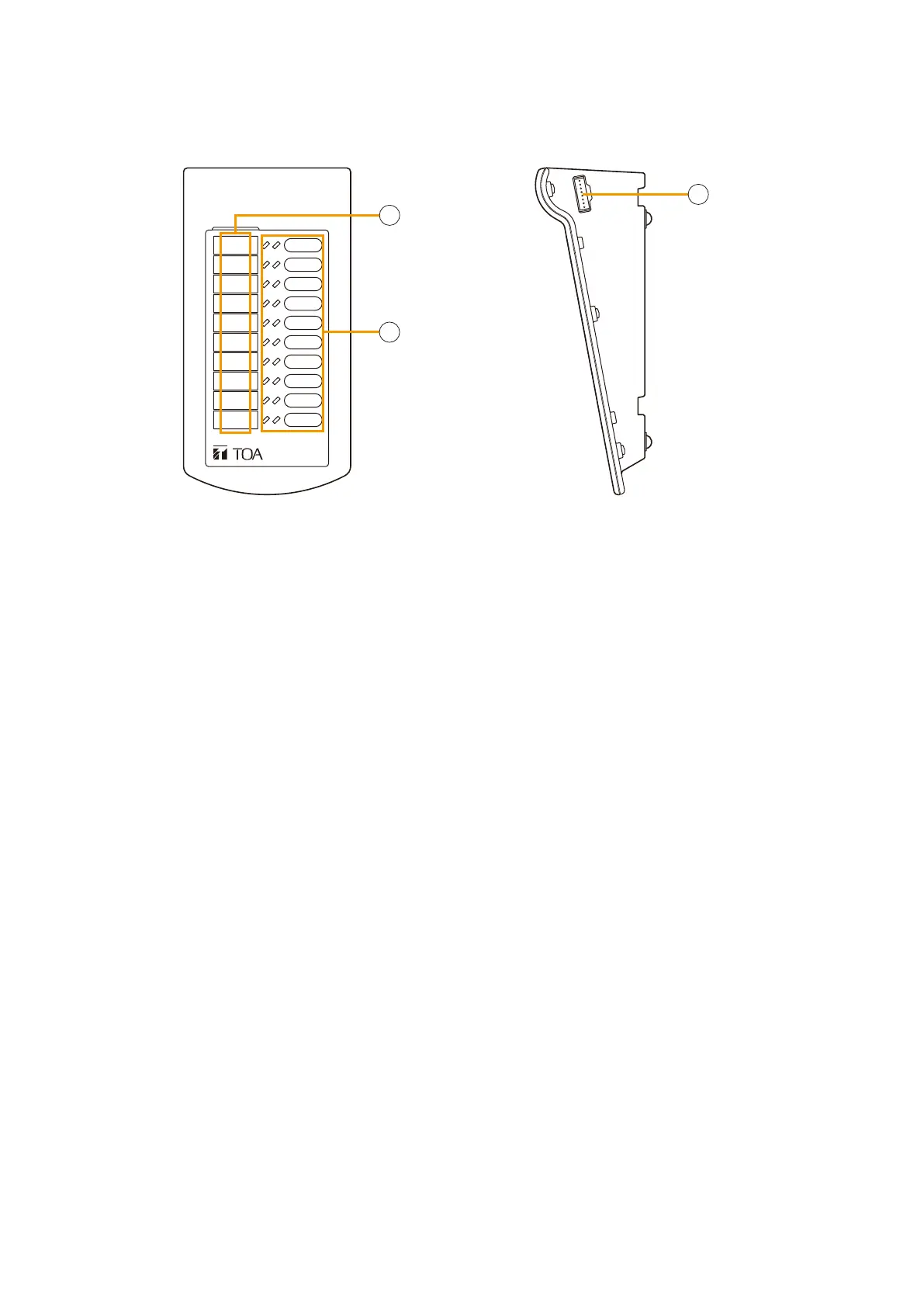

[Top] [Side]
2
3
1
1. Name labels
Enter the zone names and functions assigned to
the function keys (equipped with 2 LEDs) on these
labels. The PC system software's Print function
permits formatted name and function labels to be
printed out from a connected printer.
2. Function keys (with red, green, or orange LED
indicators)
Various functions can be assigned to these keys
using the PC system setting software.
Refer to p. 7-54 for the assignable functions.
3. Extension connector [EXTENSION]
Used to further increase the number of Function
keys. Up to 9 RM-210 units can be connected to
an RM-200X or up to 10 units can be connected to
an RM-200XF using this connector, providing the
base Remote Microphone with a maximum total of
105 Function keys. The entire system can have a
maximum total of up to 315 Function keys.
Each connected RM-210 Extension unit adds 10 Function keys to the base RM-200X or RM-200XF.
(Also provided on the
other side)
