Toa VX-2000SF - Power Amplifier Input Module VP-200 VX

Chapter 2: PRODUCT DESCRIPTIONS
2. NOMENCLATURE AND FUNCTIONS
2-24
2.16. Power Amplifier Input Module VP-200VX
PA LINK VP-200VX

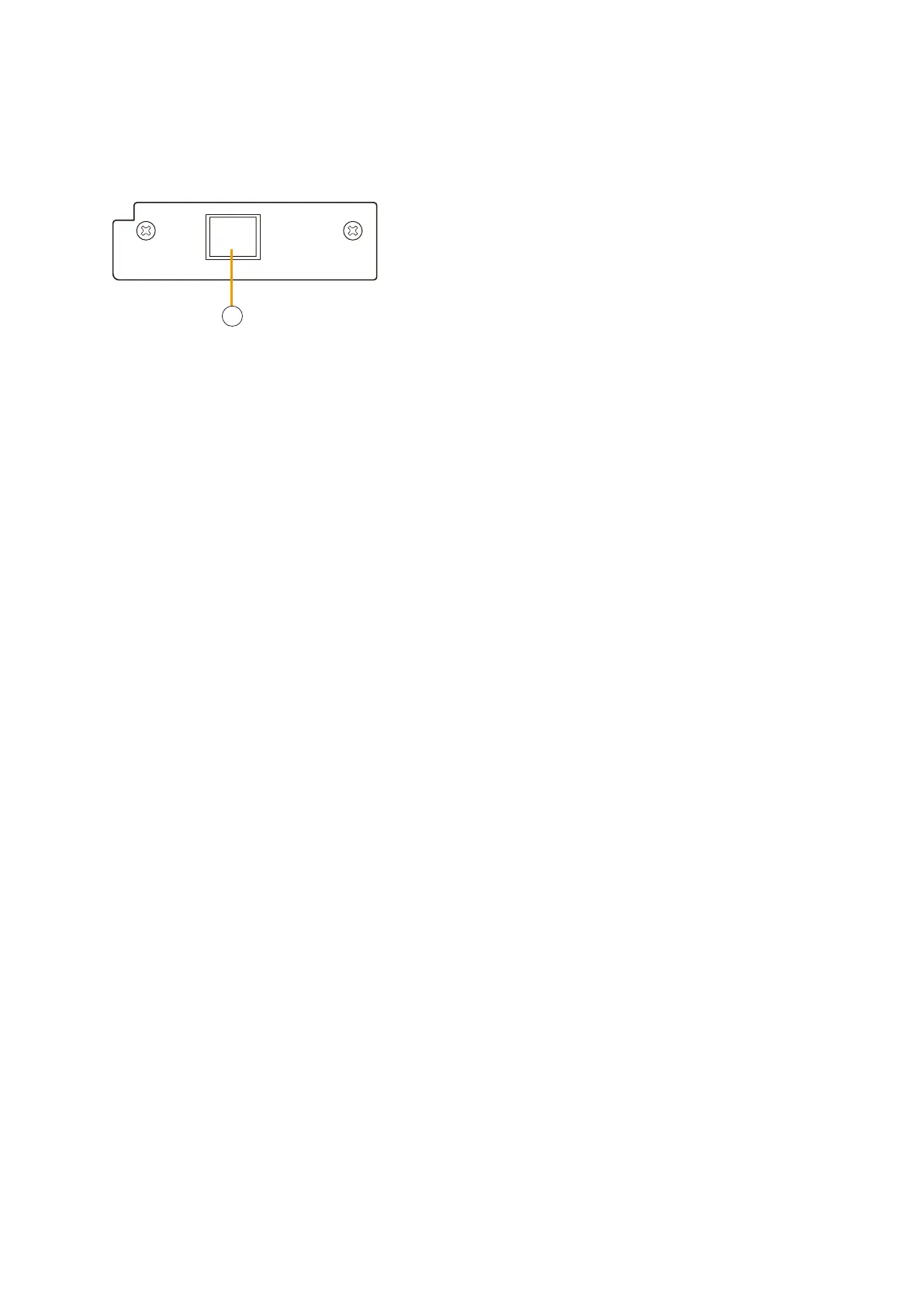

[Front]
1
1. Input connector [PA LINK]
ThisRJ45connectorconnectstothepoweramplieroutput
of the VX-200SP or VX-200SZ module.
When this module is mounted on the standby amplier,
connect to the VX-2000SF's standby PA LINK connector.
Outputaudiosignalsaretransmittedtothepoweramplier,
andthepoweramplier'saudiomonitorsignalsarereturned
to the module.
Itisalsopossibletoretrievedataregardingpoweramplier
overheating status and blown DC fuses.
Insert this module into the Power Amplifier's Input module slot when in use.
