Chapter 7: PC SOFTWARE OFFLINE SETTINGS
9. OPERATION SETTING MODE
7-45
9.2. Pattern Creation
Here, create the patterns for control output, sound volume and individual broadcasts.
The created patterns are assigned to and activated by the Remote Microphone, control input or internal timer.
Assign patterns in Activation Setting mode on p. 7-52.
The [Pattern Settings] window can be opened by clicking on the [Pattern] button on the Configuration screen.
9.2.1. Control output interlock pattern
Up to 50 control output interlock patterns can be created.

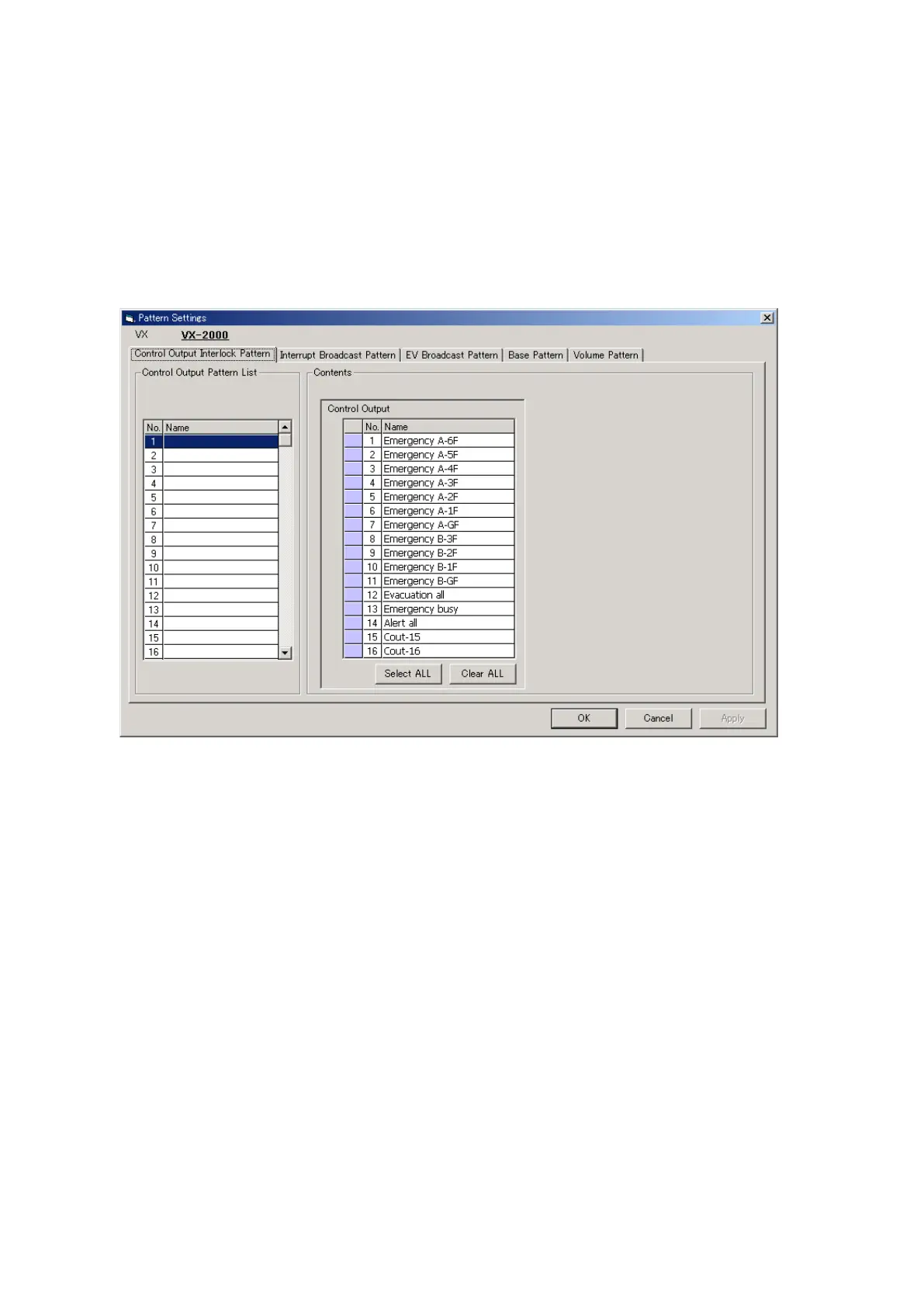

Step 1. When the Pattern Settings window opens, the Control Output Interlock Patterns display will appear.
Create the control output patterns to be activated by the control input, Remote Microphone or internal
timer.
The newly created pattern name is displayed in the Control Output Pattern List. The pattern name
can also be changed, if desired. Select a line to rename, then click on it again, and the name can be
changed.
